- Features:

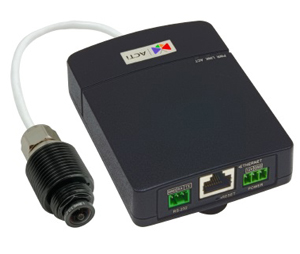

- Model: ACI-Q110
- Product Type: Covert
- Maximum Resolution: 5MP
- Application Environment: Indoor
- Image Sensor: Progressive Scan CMOS (Complementary Metal-Oxide Semiconductor)
- Day/Night: No
- Low Light Sensitivity: Standard
- Mechanical IR Cut Filter: No
- IR LED: No
- Iris: Fixed Iris
- Focus: Fixed Focus
- Sensor Size: 1/3.2 "
- Effective Pixels: 2592(H) X 1944(V) (5.04 MP)
- Minimum Illumination: Color: 0.1 lux at F 2.8 (30 IRE, 2400 K)
- Horizontal Resolution (TV Lines): 1350 TVL
- Lens Mount: RJ12 Connector Up to 12m From Main Unit
- Horizontal Viewing Angle: 126.9° (Overview Area), 77.4° (High Detail Area)
- Maximum Frame Rate vs. Resolution: 15 fps at 2592 x 1944, 15 fps at 2048 x 1536, 30 fps at 1920 x 1080, 30 fps at 1280 x 720, 30 fps at 800 x 600, 30 fps at 640 x 480, 15 fps at 320 x 240
- S/N Ratio: 52 dB
- Wide Dynamic Range: Basic WDR (74 dB)
- Digital Noise Reduction: 2D + 3D DNR
- Focal Length: Fixed Focal, f1.9mm
- Aperture: F2.8
- Compression: H.264 (Baseline/ Main/ High profile), MJPEG
- Multi-Streaming: Simultaneous Dual Streams
- Privacy Mask: 4 Configurable Regions
- VMS-based Analytics: Face Detection, Object Based Motion Detection, Tamper, People Counting, Line Crossing, Enter Area, Exit Area, Appear in Area, Missing Object, Unattended Object, Crowd Detection, Direction Detection, Vehicle Counting, Heat Map, License Plate Recognition, Speed Estimation, (Require PC-based or Standalone IVS or ALPR Server)
- Audio Type: 2-way, Mic-in, Line-in, Line-out
- Network Protocol & Service: TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour
- Ethernet Port: 1 x RJ-45 Connector
- Serial Port: 1 x RS-232
- Digital Input/Output: 1/1
- Local Storage: MicroSDHC, MicroSDXC Memory Card Slot (Card Not Included)
- Power Source: DC 12V, PoE Class 2 (IEEE802.3af)
- Power Consumption: 4.32 W (PoE)
- Environmental Casing: Vibration proof (EN50155)
- Starting Temperature: -20 °C ~ 50 °C (-4 °F ~ 122 °F)
- Operating Temperature: -30 °C ~ 60 °C (-22 °F ~ 140 °F)
- Approvals: CE, FCC, EN50155, UL (For Optional PoE Injector and Power Adapter)
- GPS Position: Manual Setting
- ONVIF Compliant: Yes, Profile S, Profile G, (To Be Available Through Future Firmware Upgrade)
- Web Browser: IE 8.0 or newer, Firefox with VLC, Chrome with VLC, Safari with QuickTime
- Warranty: 3 Years
- Extended Warranty: 2 Years
|
