- Features:

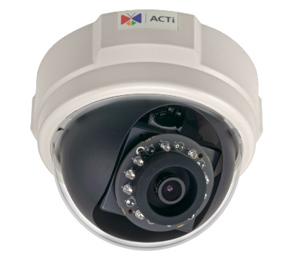

- Model: ACI-E53
- Product Type: Dome
- Maximum Resolution: 3MP
- Application Environment: Indoor
- Image Sensor: Progressive Scan CMOS (Complementary Metal-Oxide Semiconductor)
- Day/Night: Yes
- Low Light Sensitivity: Standard
- Sensor Size: 1/3.2 "
- Mechanical IR Cut Filter: Yes
- IR LED: Adaptive IR LED
- Effective Pixels: 2592(H) X 1944(V) (5.04 MP)
- Minimum Illumination: Color: 0.1 lux at F 1.8 (30 IRE, 2400 K); B/W: 0 lux at F 1.8 (IR LED on)
- IR Working Distance: 30m
- Horizontal Resolution (TV Lines): 1350 TVL
- Signal to Noise Ratio: 52 dB
- Wide Dynamic Range: Basic WDR (74 dB)
- Focal Length: Fixed Focal, f3.6mm
- Compression: H.264 (Baseline/ Main/ High profile), MJPEG
- Maximum Frame Rate vs. Resolution: 15 fps at 2048 x 1536, 30 fps at 1920 x 1080, 30 fps at 1280 x 720, 30 fps at 800 x 600, 30 fps at 640 x 480, 15 fps at 320 x 240
- Aperture: F1.8
- Horizontal Viewing Angle: 72.0°
- Viewing Angle Adjustment: Pan: 0°-330°, Tilt: 20°-90°
- Iris: Fixed Iris
- Focus: Fixed Focus
- Lens Mount: Board Mount
- Multi-Streaming: Simultaneous Dual Streams
- Image Enhancement: White Balance, Brightness, Contrast, Sharpness, Automatic Gain Control, Flickerless
- Digital Noise Reduction: DNR
- Privacy Mask: 4 configurable regions
- VMS-based Analytics: Face Detection, Object Based Motion Detection, Tamper, People Counting, Line Crossing, Enter Area, Exit Area, Appear in Area, Missing Object, Unattended Object, Crowd Detection, Direction Detection, Vehicle Counting, Heat Map, License Plate Recognition, Speed Estimation, (Require PC-based or Standalone IVS or ALPR Server)
- Image Orientation: Flip, Mirror
- Network Protocol & Service: TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv4/v6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour
- Ethernet Port: 1 x RJ-45 Connector
- Local Storage: No
- Power Source: PoE Class 2 (IEEE802.3af)
- Power Consumption: 6.02 W (PoE, IR on)
- Environmental Casing: No
- Mount Type: Surface, Pendant, Wall Mount, Corner Mount, Pole Mount, Flush, Gang Box
- Starting Temperature: -10 °C ~ 50 °C (14 °F ~ 122 °F)
- Operating Temperature: -10 °C ~ 50 °C (14 °F ~ 122 °F)
- Approvals: CE, FCC, UL Listed (UL 60950)
- Software Development Kit (SDK): Yes
- GPS Position: Manual Setting
- ONVIF Compliant: Yes, Profile S
- Web Browser: IE 8.0 or newer, Chrome with VLC, Firefox with VLC, Safari with QuickTime
- Packing Dimension (L x W x H): 16.9 x 16.9 x 16.9 (cm)
- Warranty: 3 Years
- Extended Warranty: 2 Years
|
