- Features:

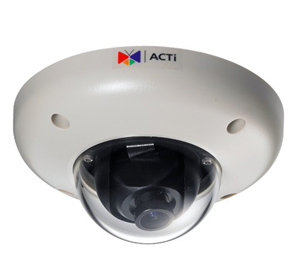

- Model: ACI-ACM3701E
- Product Type: Mini Dome
- Maximum Resolution: 1.3MP
- Application Environment: Indoor
- Image Sensor: Progressive Scan CMOS (Complementary Metal-Oxide Semiconductor)
- Day/Night: No
- Low Light Sensitivity: Standard
- Lens: Fixed Focal, f3.6mm/F1.8, Fixed iris, Fixed focus
- Minimum Illumination: Color: 0.5 lux at F 1.0 (30 IRE, 2400 K); B/W: 0.5 lux at F 1.0 (30 IRE, 2400 K)
- Maximum Frame Rate vs. Resolution: 8 fps at 1280 x 1024, 10 fps at 1280 x 720, 30 fps at 640 x 480
- Focal Lenght: Fixed Focal, f3.6mm
- Aperture: F1.8
- Lens Mount: Board Mount
- Horizontal Viewing Angle: 72.3°
- Viewing Angle Adjustment: Pan: ±20°, Tilt: 0°-90°, Rotation: ±15°
- Mechanical IR Cut Filter: No
- IR LED: No
- Iris: Fixed Iris
- Focus: Fixed Focus
- Compression: MPEG-4 SP, MJPEG
- Multi-Streaming: Single Stream
- Image Enhancement: White Balance, Brightness, Saturation, Contrast, Sharpness, Automatic Gain Control, Automatic Exposure, Flickerless
- Digital Noise Reduction: No
- Privacy Mask: 1 Configurable Regions
- VMS-based Analytics: Face Detection, Object Based Motion Detection, Tamper, People Counting, Line Crossing, Enter Area, Exit Area, Appear in Area, Missing Object, Unattended Object, Crowd Detection, Direction Detection, Vehicle Counting, Heat Map, License Plate Recognition, Speed Estimation, (Require PC-based or Standalone IVS or ALPR Server)
- Image Orientation: Flip, Mirror
- Network Protocol & Service: TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour
- Ethernet Port: 1 x RJ-45 connector
- Local Storage: No
- Power Source: PoE Class 3 (IEEE802.3af)
- Power Consumption: 2.4 W (PoE)
- Environmental Casing: No
- Mount Type: Surface, Gang box, Pendant, Converter for NPT Standard Mount, Wall Mount
- Starting Temperature: -10 °C ~ 40 °C (14 °F ~ 104 °F)
- Operating Temperature: -10 °C ~ 40 °C (14 °F ~ 104 °F)
- Approvals: CE, FCC, UL (For Optional PoE Injector)
- Software Development Kit (SDK): Yes
- Web Browser: IE 8.0 or newer
- Warranty: 1 Year
- Extended Warranty: 1 Year
|
