ACTI Corporation ACI-TCM1511

Name: ACTI Corporation ACI-TCM1511 0.31MP Bullet Camera
Brand: ACTI Corporation
SKU: ACTI Corporation ACI-TCM1511
Price: 759.79 USD

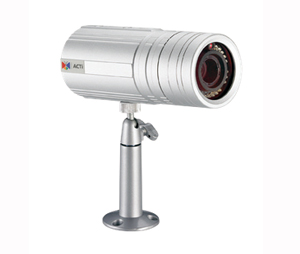

ACTI Corporation ACI-TCM1511 0.31MP Bullet Camera

× This image is for a similar product but it will differ in size, color and/or other attributes.

Price: $759.79 USD

Comments (Optional)

This item is not in stock and typically ships in 1 business day.

Sales

Technical Support

Product Description:

ACTI Corporation ACI-TCM1511 0.31MP Bullet Camera

Features

Model: TCM-1511
Device Type: Bullet Camera
Sensor Size: 1/3" (4.8 mm x 3.6 mm)
Day/Night: Yes
Minimum Illumination: Color: 0.5 lux at F1.0 (30 IRE, 2400°K); B/W: 0 lux (IR LED on)
Color to B/W Switch: CDS Sensor Based Switch, Configurable; DSP Based Switch, Configurable
Mechanical IR Cut Filter: Yes
IR Sensitivity: 700 nm - 1100 nm
IR LED: IR LED x 24 (850 nm)
IR Working Distance: 30 m (0 lux, 30 IRE, Max Exposure Gain)
Electronic Shutter: 1/30 - 1/1,000 sec (60Hz); 1/25 - 1/1,000 sec (50Hz) (Manual Mode) 1/5 - 1/15,000 sec (Auto Mode)
Focal Length: Vari-focal, f3.3 - 12 mm / F1.6
Iris: Fixed Iris
Focus: Manual Focus
Horizontal Viewing Angle: 77.6° - 22.7°
Video Compression: H.264, MPEG-4 SP, MJPEG
Maximum Frame Rate vs. Resolution (H.264, MJPEG) - 18 fps at 1280 x 1024 (SXGA); 26 fps at 1280 x 720 (HD 720p); 30 fps at 640 x 480 (VGA); 30 fps at 320 x 240 (QVGA); 30 fps at 160 x 112 (QQVGA)
Bit Rate: 28 Kbps - 6 Mbps (per Stream)
Audio Compression: 8 kHz, Mono, PCM, 16 Bit Encoding
Power Source/Consumption: PoE Class 3 (IEEE802.3af) / 8.16 W (IR on) DC 12V / 6.96 W (IR on)
Weight: 505 g (1.11 lb)
Dimensions (W x H x D): 2.68" x 5.14" (68 mm x 130.6 mm)
Operating Temperature: 0 °C ~ 50 °C (32 °F ~ 122 °F)
