Features
- Device:

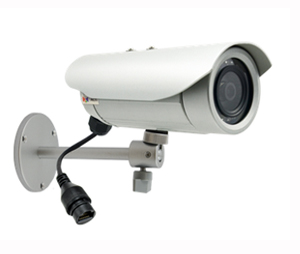

- Device Type: Bullet Camera
- Image Sensor: Progressive Scan CMOS
- Sensor Size: 1/2.8"
- Effective Pixels: 1984 (H) x 1225 (V) (2.43 MP)
- Horizontal Resolution: 1100TVL
- Day/Night: Yes
- Low Light Sensitivity Superior
- Minimum Illumination Color: 0.1 lux at F1.8 (30 IRE, 2400°K); B/W: 0 lux (IR LED on)
- Color to B/W Switch ISP Based Switch; Configurable
- Mechanical IR Cut Filter: Yes
- IR Sensitivity Range 700 - 1100 nm
- IR LED Adaptive IR LED x 15 (850 nm)
- IR Working Distance 30 m (0 lux, 30 IRE, Gain 255, Auto Shutter Mode)
- Electronic Shutter: 1/5 ~ 1/2,000 sec (Manual Mode); 1/5 ~ 1/10,000 sec (Auto Mode)
- S/N Ratio: 52 dB
- Lens:
- Focal Length / Aperture: Fixed Focal, f3.6 mm / F1.85
- Iris: Fixed Iris
- Focus: Fixed Focus
- Mount Type: Board Mount
- Horizontal Viewing: Angle 88.1°
- Video:
- Compression H.264 (Baseline/ Main/ High Profile), MJPEG
- Max. Frame Rate vs. Resolution 30fps at 1920 x 1080; 30 fps at 1280 x 720;
- 30 fps at 800 x 600; 30 fps at 640 x 480; 15 fps at 320 x 240
- Multi-Streaming Simultaneous Dual Streams Based on Two Configurations
- Bit Rate 28 Kbps - 6 Mbps (per Stream)
- Bit Rate Mode Constant, Variable
- Image Enhancement Basic WDR (75 dB); White Balance: Automatic, Hold, and Manual; Brightness;
- Contrast; Sharpness (Auto); Auto Gain Control; Digital Noise Reduction; Flickerless
- Privacy Mask 4 Configurable Regions
- Text Overlay User Defined Text on Video
- Image Orientation Image Flip and Mirror
- Network:
- Protocol & Service: TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP, ICMP, ARP,IGMP, SMTP, FTP, UPnP, SNMP, Bonjour
- Ethernet Port 1, Ethernet (10/100 Base-T), RJ-45 Connector
- Security IP Address Filtering; HTTPS Encryption; Password Protected User Levels; Anonymous Login; IEEE 802.1X Network Access Control
- Alarm:
- Alarm Trigger Video Motion Detection (3 Regions)
- Alarm Response Notify Control Center; Change Camera Settings; Command other Devices;
- E-mail Notification with Snapshots; Upload Video, Snapshot to FTP Server
- Interface
- Local Storage MicroSDHC/MicroSDXC Memory Card Slot (Card Not Included)
- General:
- Power Source / Consumption PoE Class 2 (IEEE802.3af) / 4.8 W (IR on)
- Weight: 704 g (1.29 lb)
- Dimensions: (ø x L) 77 mm x 190 mm (3.03" x 7.48'')
- Bundled Accessories Bracket
- Environmental Casing Weatherproof (IP68 rated); Vandalproof Metal Casing (IK10)
- Mount Type Wall, Ceiling, Corner, Pole
- Starting Temperature: -20°C ~ 50°C (-4°F ~ 122°F)
- Operating Temperature: -40°C ~ 50°C (-40°F ~ 122°F)
- Operating Humidity: 10% ~ 85% RH
- Approvals CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), IP68, NEMA 4X, IK10,
- UL (for Optional PoE Injector and Power Adapter)
- Integration
- Unified Solution Fully Compatible with ACTi Software
- ISV Integration Software Development Kit (SDK) Available; ONVIF Compliant
- Firmware Access Browser Microsoft Internet Explorer 8.0 or newer (Full Functionality)
- Safari with QuickTime Installed, and other Browsers with VLC Installed (Partial Functionality)
- Auto Firmware Upgrade: Yes
- GPS Position Manual Setting
|
