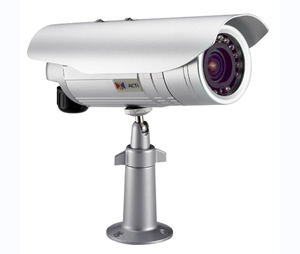

Model: ACM1431N
Features:
- 1/3" Sony Super HAD CCD Sensor
- 0 Lux illumination with IR LED On
- F3.8 ~ 9.5 mm / F1.2 DC Iris Varifocal Lens
- 25/30 fps at D1 Resolution
- MPEG-4 SP, MJPEG Compressions
- Two-way Audio
- Video Motion Detection
- 540TVL Resolution
- Weatherproof Housing (IP66 Rated)
- 12VDC (PoE Class 3)
Specifications:
- Device:
- IP Bullet Camera
- 1/3" Sony Super HAD CCD Sensor
- Sensor Size 1/3" (4.8 x 3.6 mm)
- 540TVL Resolution
- Day / Night
- Minimum Illumination: Color: 0.15 lux at F1.2 (30 IRE, Max. AGC); B/W: 0 lux (IR LED on)
- Color to B/W switch CDS sensor based switch
- Mechanical IR Cut Filter
- IR Sensitivity Range: 700 - 1100 nm
- IR LED x 15 (850 nm)
- IR Working Distance: 30m (0 lux, 30 IRE, Max Exposure Gain)
- Electronic Shutter: 1/60 sec (NTSC); 1/50 sec (PAL) (manual mode) 1/60~1/100000 sec.(NTSC); 1/50~1/100000 sec. (PAL) (auto mode)
- Lens:
- Focal Length: Varifocal, f3.8 - 9.5 mm / F1.2
- DC Iris
- Manual Focus
- Horizontal Viewing Angle: 73.4° - 29.7°
- Video:
- Maximum Frame Rate: 30 fps at 720 x 480 (Full D1, NTSC); 25 fps at 720 x 576 (Full D1, PAL) 30 fps at 640 x 480 (VGA, NTSC); 25 fps at 640 x 480 (VGA, PAL) 30 fps at 352 x 240 (CIF, NTSC); 25 fps at 352 x 288 (CIF, PAL) 30 fps at 160 x 112 (QCIF, NTSC); 25 fps at 176 x 144 (QCIF, PAL)
- Multiple streams based on single configuration
- Bit Rate: Mode Constant, Variable
- S/N Ratio: More than 50 dB
- Privacy Mask 1: Configurable Region
- Text Overlay: User defined text on video
- Audio:
- Compression: 8 kHz, Mono, PCM, 16 bit encoding
- Audio-In/Out Terminal block
- Network:
- Protocol & Service: TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour
- Ethernet: Port 1, Ethernet (10/100 Base-T), RJ-45 connector
- Security: IP address filtering; HTTPS encryption; Password protected user levels
- Alarm:
- Video motion detection (3 regions)
- Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Upload video, snapshot to FTP server
- Interface:
- Analog Video Output: 1, CVBS, 1.0Vp-p with 75 O terminal block
- General:
- PoE Class 3 (IEEE802.3af) / 8.4 W (IR on) DC 12V / 7.1 W (IR on)
- Weight: 685 g (1.51 lb)
- Dimensions (ø x L): 3.03" x 8.66" (77 mm x 220 mm)
- Environmental Casing: Weatherproof (IP66 rated)
- Operating Temperature: -20 °C ~ 40 °C (-4 °F ~ 104 °F)
- Operating Humidity: 10% ~ 85% RH
- Approvals Camera: CE, FCC, IP66; Adapter: CE, TUV-GS, UL, RCM, CCC
|
