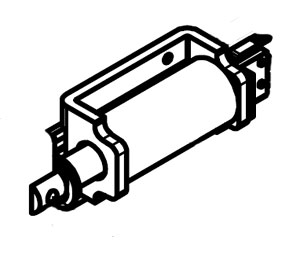

Q: I just received Adams Rite 31-0736-ip Solenoid/ Plunger 24vacdc from you co. My old solenoid has 5 wires this new one only has four will it work with my electronics?
A: The wiring diagram can be reviewed here:
Download File
The two leads you will be using will be black.
Q: I just received Adams Rite 31-0736-ip solenoid, my push bar is completely manual, so I wanted to convert it to electric latch, but I realized that some parts are missing, these parts are not part of the replacement kit, like the small piece of metal between the solenoid and the mechanism that opens the door. How can I send you an image to show you the parts I´m talking about? Thanks very much for your help!
A: You are welcome to reply to this email with photographs of your device and the sub-components you refer to. Please let me know which device you are working with.
Q: Thanks very much for your response, I think I typed wrong my email address in the last question, because I haven't received any email, I just corrected it, can you email me to send you photos of my device?
A: You are welcome to reply to this email with photographs of your device and the sub-components you refer to. Please let me know which device you are working with.

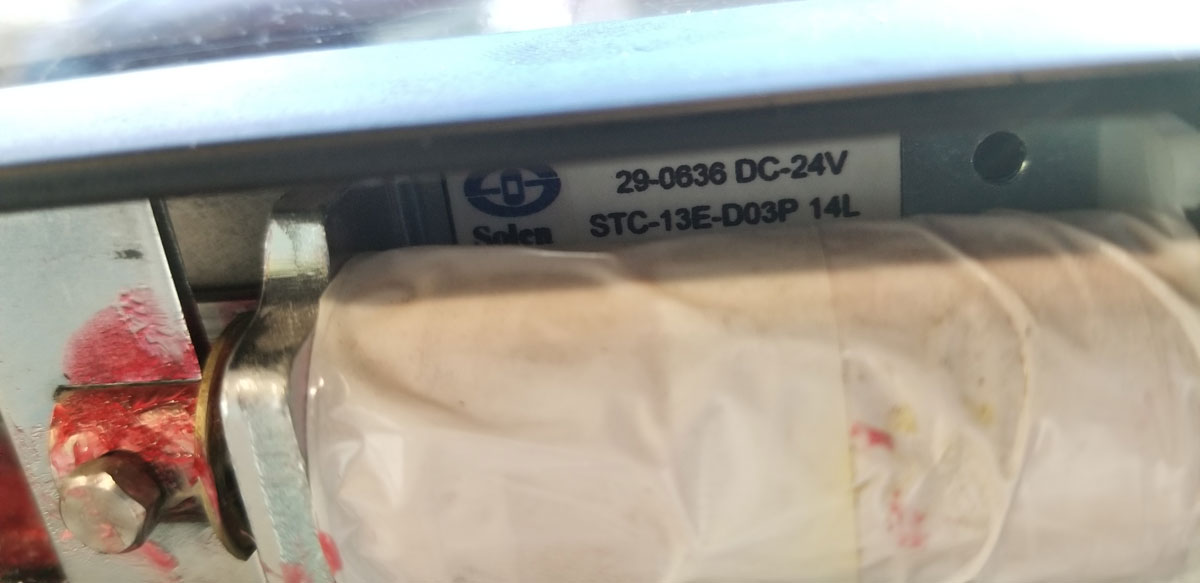

Q: What are the 6 wires for on the 29-0636?
A: To blue wires with the connectors go to the micro switch thats connected to the solenoid and the other two blue wires would go to an automatic door operator and then the last two will either be yellow if its 12 volt or black if its 24 volt.
A video discussing and explaining this can be seen here:
Click Here
