Q: Is the screw shown in the attached from the 31-0265 and if so, is it available as a stand alone item?
A: As Adams Rite is getting the dogging kits in from their OEM vendor already assembled they do not have the individual spare parts. That is the bad news.
The good news is that it is a common screw that you should be able to pick up from a hardware store. It is a #6-32 x 1/4 cap head screw. Please let us know if you have any additional questions or if we can be of further assistance.
Is there a follow up question that we can perhaps attempt to answer? We take pride in our technical expertise, as we know it separates us from our competition, so don't hesitate to ask.
Please reply to this email or contact our sales department here:
Click Here
if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with.
Q: Can I get just the center post that contains the allen insert for operation
A: Unfortunately no - the dogging shaft is not available as a stand alone part from the 31-0265 dogging assembly. Possibly helpful to you is this link to the Adams Rite Parts Manual as seen here:
Click Here
Is there a follow up question that we can perhaps attempt to answer? We take pride deep in our technical expertise, as we know it separates us from our competition, so don't hesitate to ask.
Please reply to this email or contact our sales department here:
Click Here
if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with.
Q: is there a video that shows how to replace it
A: This document shows a parts drawing:
Download File
The process is: loosen the set screw on the old dogging assembly, slide it out, slide in the new one, and tighten the set screw.
Is there a follow up question that we can perhaps attempt to answer? We take deep pride in our technical expertise, as we know it separates us from our competition, so don't hesitate to ask.
Please reply to this email or contact our sales department here:
Click Here
if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with.
Q: I am looking for the length of the #6-32 x 1/4 cap head screw if you have that information available please...
A: I would be happy to assist and research this but can you tell me where are you using this cap screw with and on?
Q: I am using the dogging assembly on an Adams Rite 8600 exit device. I just need to know the screw length so I can purchase replacements.
A: I have confirmed that the thread type is 8/32” and the length of the screw is 1/2”. When you purchase the screws however be sure to order thread forming screws as seen in the image here:
View Image
If you have trouble sourcing this crew - please let us know and we will assist.

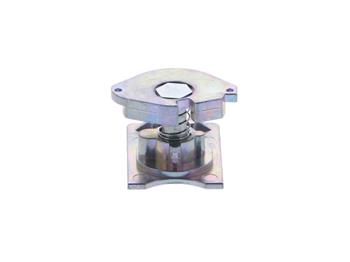

Q: My restaurants use the Adams Rite dogging assembly 31-0265-1P. The dogging key is number 29-0481 with a 1/8" hex drive. Do you sell the replacement dogging screw for this model? I believe it is a 6x32 x1/4" 1/8" hex drive socket head screw. I found a similar part number 31-0079-MP in your parts list, but am not sure if it is comparable to the 26-0217-MP that is listed in the manufacturers PDF file you have.
A: The replacement dogging screw only from the Adams Rite 31-0265-IP Dogging AssY. Its not available as a separate stand-alone product from the manufacturer. Then while you are correct the thread type is 6/32” x 1/4” length with a head size of .226” dia x .138” thickness, the trouble is indeed finding the replacement screw that has the 1/8” hex drive. We can easily obtain the proper size screw except it will have a 7/64” hex drive which would necessitate purchasing new dogging keys.
This proposition would make it substantially less convenient than just simply purchasing the entire replacement dogging assembly from the manufacturer which we keep on our shelf in stock and ready to ship.
