Q: Does Von Duprin have an exit device that is pneumatic?
A: The Von Duprin Pneumatic PN98/99 series exit devices feature provides remote latch bolt retraction in hazardous areas where electrically operated devices would not be permitted. The Von Duprin Pneumatic or "PN" device was designed for Intrinsically Safe Class 1, Division 1 applications.
Q: What is the difference between Panic Hardware and Fire Exit Hardware?
A: The most obvious difference (in the device) is the lack of mechanical dogging on a Fire Rated Device. There are some internal parts that may be different and the method it is secured to the door may vary. Each specific device has different factors.
Panic Hardware and Fire Exit Hardware are two different types of exit devices, and the proper selection is determined by code requirements.
Panic Hardware is an exit device which is tested for use on a door that is required to have panic hardware, but cannot be used on a fire door. Panic hardware typically has the dogging feature, which allows the latches to be held retracted to create a push/pull function.
Fire Exit Hardware is an exit device which is tested for both panic and fire conditions and is required to be used on fire doors where panic hardware is required by code or desired for durability. Since fire doors require positive-latching, fire exit hardware does not incorporate mechanical dogging. If a push/pull function is desired for a fire door, electric latch retraction hardware may be installed, as long as the latch projects automatically upon fire alarm.
The International Building Code (IBC) and NFPA 101 – The Life Safety Code contain similar requirements for locations where panic hardware is installed:
Panic hardware shall be listed in accordance with UL 305;
Fire exit hardware shall be listed in accordance with UL 10C and UL 305;
The actuating portion of the releasing device shall extend at least one-half of the door leaf width;
and - the maximum unlatching force shall not exceed 15 pounds (67 N).
If balanced doors are used and panic hardware is required, the panic hardware shall be the push-pad type and the pad shall not extend more than one-half the width of the door measured from the latch side.
Depending on how exit devices are ordered, Von Duprin and Falcon-Monarch exits are supplied as either Panic Hardware or Fire Exit Hardware. These devices are factory labeled as either:
Panic Hardware
Fire Exit Hardware
Is there a follow up question that we can perhaps attempt to answer? We take deep pride in our technical expertise (something Amazon can not provide) as we know it separates us from our competition, so don't hesitate to ask.
Please reply to this email or contact our sales department here:
Click Here
if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with. If this answer was helpful -
please consider following us on Twitter
Click Here
or liking our page on Facebook
Click Here
Thank you for your consideration.
Q: What is the Von Duprin warranty?
A: Von Duprin warrants that the product manufactured by it and delivered here under will be free of defects in material and workmanship for a period as follows:
-
Exit devices and trim for 36 months from the date of placing the product in operation or for 42 months from the date of shipment, whichever shall first occur.
-
Electric strikes for 5 years on mechanical components and 1 year on electrical components including the solenoid and wiring from the date of installation.
-
Electrified exit devices and other electrified products for 12 months from the date of placing the product in operation or 18 months from the date of shipment, whichever shall first occur.
Q: What is the Von Duprin warranty?
A: Von Duprin warrants that the product manufactured by it and delivered here under will be free of defects in material and workmanship for a period as follows:
Exit devices and trim for 36 months from the date of placing the product in operation or for 42 months from the date of shipment, whichever shall first occur.
Electric strikes for 5 years on mechanical components and 1 year on electrical components including the solenoid and wiring from the date of installation
Electrified exit devices and other electrified products for 12 months from the date of placing the product in operation or 18 months from the date of shipment, whichever shall first occur.
as seen here:
Download File
Q: What is the narrowest door a 99 rim, single door can fit on?
A: he Minimum single door opening should be 26.32" and use the 299 or 499F strike.
Q: What is the backset for a 98/99 rim device with a 1609 strike?
A: The Von Duprin 1609 strike is used most commonly when you have a pair of doors where the active door will have a rim device and the inactive door will either have surface bolts or perhaps flush bolts or it will have a surface vertical rod device.
the back said that you are going to install the device at it's going to be dependent on what device you are using specifically as this strike can be used with both Von Duprin and Falcon brand exit devices.
at this time I am unable to locate a template showing the backset of a 99 exit only device when using a 1609 strike however the manufacturer's product catalog, specifically the 148th page has seen here:
Download File
While does not provide backset information it did does give you dimensional guidance by which to install the strike and where to position the exit device headcase in relationship to that overlapping strike.
Keep in mind the use of an overlapping strike like this will sometimes require both a coordinator and a carry bar and if you forward to us your complete hardware set we can detail better for you what a complete hard reset would look like safely use this harbor in conjunction with each other.
I was able to locate templates when using this strike with falcon 24 and 25 series devices along with a template when using the strike with a von duprin 22 and 2227 series device.
Download File
Download File
Is there a follow up question that we can perhaps attempt to answer? We take deep pride in our technical expertise (something Amazon can not provide) as we know it separates us from our competition, so don't hesitate to ask.
Please reply to this email or contact our sales department here:
Click Here
if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with. If this answer was helpful -
please consider following us on Twitter
Click Here
or liking our page on Facebook
Click Here
We are proud Corporate Members of DHI - Door Hardware Institute:
Click Here
Thank you for your consideration.
Q: What is the backset for a 98/99 rim device with a 1609 strike?
A: The backset for a 98/99 rim device with 1609 strike is 2 3/8" from center of the opening to center line of the device. See template 30229 here:
Download File
for backset information. The 1609 strike can be used on the inactive leaf of a double door application without mullion as long as opening is not fire rated.
Q: Can you add SD and EL to a mechanical 99 series exit device?
A: This is available. You will need the SD "Special Center Case Dogging" center case kit, SD center case cover, and EL conversion kit.
Q: What is the part number for the Von Duprin maintenance kit?
A: Von Duprin has a maintenance kit part number 050046-00 as seen here:
Click Here
and maintenance instruction, part number 941079-00 for 98/99 series devices. There are some common parts between 98/99 series and 22, 33A/35A series devices.
Please reference the attached Maintenance Kit Manual, which comes in the 98/99 Maintenance Kit, part 050046 as seen here:
Download File
There is a list on the last couple pages of the parts in the kit.
Q: What parts of the device and trim for the 98/99 are 643E finish?
A: When it comes to specific finishes on a Von Duprin 98/99 fire or panic exit hardware and specifically the 643e finish the Center Case, Touch Bar end and Mechanism End will be in the 643e Aged Bronze No Relief, the Touch Bar Trim will be Relieved Aged Bronze and finally the Cover and Mechanism will be in Aged Bronze No Relief as detailed in the Von Duprin finish table as it pertains to exit device components as seen here:
Download File
Q: What finishes should be used on exit devices near the ocean or in saltwater environments?
A: Von Duprin Exit Devices (33A/35A, 98/99, etc) are handled on a case by case basis regarding their ability to handle salt and chemical environments.
Our powder coated finishes US28 (Anodized Aluminum) and 313AN (Anodized Duranotic – Dark Bronze) are superior to our chrome plated finishes such as US26D (Chromium – Dull) and US10 (Satin Bronze, Clear Coated) as well as others when installed in a salt or corrosive environment. Additionally, the US28 and 313AN finishes are sprayed electro statically, wrapping all around the parts, providing a much greater ability to withstand the salt and chemical environments under their 3 year mechanical warranty and beyond.All carbon steel internal parts have a zinc dichromate coating applied to inhibit corrosion.
The electromechanical exit devices (EL, QEL) have the same corrosion resistance for their mechanical parts. The electrical components such as the RX switch are weather resistant, not weather proof.
The Von Duprin 98 Series Exit Device is available in a 304 grade stainless steel alloy. The 304 stainless steel alloy is corrosion resistant not corrosion proof thus in highly corrosive applications the exit device may rust over time (e.g. center case covers, inside the end caps areas, etc.). Q: What parts of the device and trim for the 98/99 are 643E finish?
A: Device: Pushbar end caps, pushbar trim and center case cover.
Trim: Lever assembly, trim plate assembly (trim plate and bushing sleeve).
Bronze Finish Comparison as seen here:
Download File
Q: Why doesn't full rotation of the AD or CO Series Exit Trim (993) outside lever fully retract the Von Duprin 98/99 Exit Device latch?
A: AD Series and CO series products require that the Night Latch (NL) screw is installed in the exit device. Be sure this screw is installed
- Exit hardware and strike must be properly mounted to ensure that the strike is NOT too close to the latch bolt when closed and that the trim can move the bolt past the strike to allow entry without mechanical interference
- Test the exit installation using the "Electronic Access" or trim input to retract the latch. Be advised, the mechanical key can retract the bolt further than the electronic access using the outside lever, so it is important to test for proper operation using the electronic access trim or Lever
- Von Duprin devices require the standard "Twisted Tailpiece" to provide as much bolt retraction as possible. Competitive devices will utilize the flat or "Straight" tailpiece provided from the factory
- Miss-adjusted exit devices or strike location could cause the bolt to hit the strike on entry. Customers then will pull hard on the trim lever and cause additional stress on the lever to gain access, Pulling hard on the lever can cause abusive forces on the lever and result in a crack at the base of the lever.
Q: Can the Von Duprin EL option be added to any existing 98/99 device?
A: The Von Duprin EL option can be added to any existing 33A/35A, 98/99 series exit devices.
Q: What is the part number for the Von Duprin maintenance kit?
A: Von Duprin has a maintenance kit part number 050046-00 as seen here:
Click Here
and maintenance instruction, part number 941079-00 for 98/99 series devices as seen here:
Download File
There are some common parts between 98/99 series and 22, 33A/35A series devices.
Q: Is the Von Duprin 99 available with an antimicrobial finish?
A: Yes indeed - the Von Duprin 99EO Rim Exit Device Device is available with the antimicrobial coating which is specially formulated to inhibit the growth of bacteria by interrupting cell multiplication. The result is that the silver ions surround bacterial cells, blocking food and slowing the growth of bacteria, mold and mildew.
The
FINISH CODES: 626AM and 630AM. AM is used to identify a product with the antimicrobial finish applied.
Other Allegion properties offer the antimicrobial coatings as well as detailed here:
Ives:
8102HD, 8103HD, 8103EZHD, 8105, 8111, 8112, 8121, 8190HD, 8200, 8302, 8303, 8305, 8311, 9100HD, 9103EZHD, 9190HD
Schlage
AL, B500, B600/700/800, ND, L9000, LV9000, LT, HL6, PL7, PL8
Von Duprin
33A/35A, 55, 88, 94/95, 98/99, XP98/99 devices
996, 990, 360, 386, 388 and LP373L trims
LCN
antimicrobial coating is not available Q: Von Duprin and Falcon do not offer repair services for any of its exit devices.
A: Von Duprin does not offer repair services for any of its exit devices however we here at absupply can assist. Please email our tech support team a narrative and images of the issue. Contact us as seen here:
Click Here
Q: Does Von Duprin offer an exit device for exterior use?
A: Panic devices are not design for exterior application.
As with any mechanical device, exposure to the elements may affect the operation and life of the device and/or finish and may void the warranty.
If the device is used on exterior applications, we recommend the Von Duprin mechanical 98/99 exit device with one of the powder coated finishes.Remember - Water and electricity do not mix. Von Duprin electrified devices can NOT be used in an exterior environment.
Q: What finishes should be used on exit devices near the ocean or in saltwater environments?
A: Von Duprin Exit Devices (33A/35A, 98/99, etc) are handled on a case by case basis regarding their ability to handle salt and chemical environments.
Our powder coated finishes US28 (Anodized Aluminum) and 313AN (Anodized Duranotic – Dark Bronze) are superior to our chrome plated finishes such as US26D (Chromium – Dull) and US10 (Satin Bronze, Clear Coated) as well as others when installed in a salt or corrosive environment.Additionally, the US28 and 313AN finishes are sprayed electro statically, wrapping all around the parts, providing a much greater ability to withstand the salt and chemical environments under their 3 year mechanical warranty and beyond.
The electromechanical exit devices (EL, QEL) have the same corrosion resistance for their mechanical parts. The electrical components such as the RX switch are weather resistant, not weather proof. The Von Duprin 98 Series Exit Device is available in a 304 grade stainless steel alloy. The 304 stainless steel alloy is corrosion resistant not corrosion-proof; thus, in highly corrosive applications the exit device may rust over time (e.g. center case covers, inside the end caps areas, etc.). Q: What is the difference between Panic Hardware and Fire Exit Hardware?
A: Panic Hardware and Fire Exit Hardware are two different types of exit devices, and the proper selection is determined by code requirements.
Panic Hardware is an exit device which is tested for use on a door that is required to have panic hardware, but cannot be used on a fire door. Panic hardware typically has the dogging feature, which allows the latches to be held retracted to create a push/pull function. Fire Exit Hardware is an exit device which is tested for both panic and fire conditions and is required to be used on fire doors where panic hardware is required by code or desired for durability. Since fire doors require positive-latching, fire exit hardware does not incorporate mechanical dogging. If a push/pull function is desired for a fire door, electric latch retraction hardware may be installed, as long as the latch projects automatically upon fire alarm. The International Building Code (IBC) and NFPA 101 – The Life Safety Code contain similar requirements for locations where panic hardware is installed:
Panic hardware shall be listed in accordance with UL 305;
Fire exit hardware shall be listed in accordance with UL 10C and UL 305; The actuating portion of the releasing device shall extend at least one-half of the door leaf width; and The maximum unlatching force shall not exceed 15 pounds (67 N).If balanced doors are used and panic hardware is required, the panic hardware shall be the push-pad type and the pad shall not extend more than one-half the width of the door measured from the latch side.
Depending on how exit devices are ordered, Von Duprin and Falcon-Monarch exits are supplied as either Panic Hardware or Fire Exit Hardware. These devices are factory labeled as either:
Panic HardwareFire Exit Hardware
The most obvious difference (in the device) is the lack of mechanical dogging on a Fire Rated Device. There are some internal parts that may be different and the method it is secured to the door may vary. Each specific device has different factors.
Q: Does Von Duprin offer a classroom security option with visual status indication?
A: Von Duprin offers two options:
The CDSI/HDSI Dogging Indicator provides an at-a-glance verification of the status of the door from inside of the room. Visible “LOCKED” and “UNLOCKED” indicators show whether the device is undogged or dogged. This feature can be used with Hex key (HDSI) or Cylinder dogging (CDSI) options on various device types – rim, mortise and vertical systems.
The -2SI Security Indicator provides an at-a-glance verification of the locked /unlocked status of the door from inside of the room. This option can be ordered as a new product or as a retrofit conversion kit to an existing 98/99 rim device. Indicator in “unlocked ” state presents a 1/2” x 1/2” metal flag (unlock icon, laser cut into flag) at top of device head. Indicator in “locked ” state has no flag present. Q: Does this part number 971240-00 come up on your end?
A: Indeed it does. Part number 971240-00 is the UL fire label/sticker itself and cannot be sold separately. If a customer has lost the label, a new device will need to be purchased, or UL will need to visit the site and re-certify the 98 series panic bars.
Q: What is (SD) Special Dogging?
A: SD is Special cylinder dogging in the center case of 98/99 rim and vertical rod non fire rated devices and is available with standard, EL, QEL, CX and ALK.
Q: What finishes should be used on exit devices near the ocean or in saltwater environments?
A: Von Duprin Exit Devices (33A/35A, 98/99, etc) are handled on a case by case basis regarding their ability to handle salt and chemical environments.
Our powder coated finishes US28 (Anodized Aluminum) and 313AN (Anodized Duranotic – Dark Bronze) are superior to our chrome plated finishes such as US26D (Chromium – Dull) and US10 (Satin Bronze, Clear Coated) as well as others when installed in a salt or corrosive environment.
Additionally, the US28 and 313AN finishes are sprayed electro statically, wrapping all around the parts, providing a much greater ability to withstand the salt and chemical environments under their 3 year mechanical warranty and beyond.
The electromechanical exit devices (EL, QEL) have the same corrosion resistance for their mechanical parts. The electrical components such as the RX switch are weather resistant, not weather proof.
The Von Duprin 98 Series Exit Device is available in a 304 grade stainless steel alloy. The 304 stainless steel alloy is corrosion resistant not corrosion-proof; thus, in highly corrosive applications the exit device may rust over time (e.g. center case covers, inside the end caps areas, etc.).
Q: Is the Von Duprin 2' door device provided with a UL label?
A: The Special Von Duprin 2' door device as of 02-07-14 is now shipped with UL Panic Hardware label or UL Fire Exit Hardware label. The 2’ devices are most commonly used in 5’ wide door opening applications where a combination of 3’ and 2’ leaves are used.
Q: What is the part number for the 99 hex dogging key?
A: Part Number 090085 is a package of 10 of the 227 dogging keys as seen here:
Click Here
Q: What is the part number for a 98/99 or 33A/35A exit device baseplate assembly?
A: According to the manufacturer:
The baseplate assemblies are not saleable parts.
Q: What is a 266M?
A: The 266M is on all Von Duprin exit devices and does not identify the device but I suspect it is the listing number and refers to the testing laboratory file the under is "listed" under.
Q: When using the 98/99 rim what backset should be used when using with 6300 strike?
A: The backset is the same for the 6300 surface mounted electric strike as it is when using the 299 strike. There should be 3/16" from the face of the device and the face of the strike.
Q: Can you add SD and EL to a mechanical 99 series exit device?
A: his is available. You will need the SD center case kit, SD center case cover, and EL conversion kit.
Q: Can a Von Duprin EL device be converted back to mechanical?
A: An EL device can't be converted to mechanical device. If the device is not connected to the power supply, it would function mechanically but no mechanical dogging option.
Q: Can I add a cylinder function to the 98/99 Rim EO device?
A: To add a cylinder to the 98/99-EO rim device order a 110NL-MD for metal door or 110NL-WD for wood door with a standard rim cylinder and prep the door per template.
Q: What is the minimum stile for the 98/99 rim device?
A: Start by opening the templates page.
Click here -->: 98/99 Template
Click Here
Then click on the link for your door type and device model, and you'll need to click once more depending on any trim or specific device configurations.
Q: How do I know if my 98/99 device is fire rated?
A: If the device has no hex dogging feature and has a fire label on the center case cover it is fire rated device.
Q: Can the Schlage Latitude levers be used with the 98/99 series?
A: Originally the Schlage Latitude levers could not be used with Von Duprin 98/99 series exit devices however subsequently the manufacturer has made compatible the Schlage Latitude lever design work with the exterior trim of the 98/99 series and page 7 of the manufacturers catalog as seen here:
Download File
will allow you to review the latitude lever along with all of the other compatible decorative lever designs.
Q: Do we have parts for the old multi-piece center case cover for the 98/99 series devices?
A: Von Duprin does not offer the old two piece center case cover any longer.
The new center case cover will work on the old two piece cover device.
Order the following parts:
New 1-piece cover 050071-XX (specify finish) as seen hereClick Here
New reinforcement bracket 050565-00 as seen here:Click Here
Q: Is the Von Duprin 2' door device provided with a UL label?
A: The Special Von Duprin 2' door device as of 02-07-14 is now shipped with UL Panic Hardware label or UL Fire Exit Hardware label. The 2’ devices are most commonly used in 5’ wide door opening applications where a combination of 3’ and 2’ leaves are used.
Q: Good Morning Richard! I hope your weekend was well. I am a subscriber to your YouTube channel and I have a question about fire exit hardware. Do you know a brand of exit device that still uses a fusible link within the housing that at the time of fire that exit device no longer is operable. We are putting together a training locally for our AHJ’s and I am putting together a slide deck of the differences in panic versus fire exit devices. Thank you, Jared CFDAI DHIA
A: I do not - in fact my 30 years of experience has not put me in front of a exit device that incorporates a fusible link assuming its function was to render inoperable the exit devices means of emergency egress. I must admit I've never heard of this. It's my understanding that the difference between a panic versus a fire device was the base construction of the head assembly itself where as - I would very commonly see a dead locking tab incorporated in a fire rated device rather than a exit device.
I would however reach out to the fine people over at Von Duprin [email removed] and pose this question to them. If anyone knows it would be the find individuals in their support department.
Thank you, Rich Howard AAADM AFL ARL CFDAI CRL DHT IQP
Q: Can a Von Duprin 98/99 standard device be converted to a CX98/99 device?
A: The standard Von Duprin mechanical or electrical 98/99/33/35 exit devices can not be converted to a CX98/99 or CX33/35 device.
Von Duprin CX98/99 or CX33/35 has a different base plate and center case assembly.
Exterior trims for standard and Chexit device are the same.
If access from exterior with card reader is needed 996L or E996L trim is required with Chexit device. Q: Is there any way to lock the push side of an opening with a Von Duprin exit device?
A: Assuming that you have an exit device that is installed because of requirement by code, you cannot lock the push side of the exit device as a panic device by design must allow exit. Any attempt to block an exit is forbidden by code.
Q: Can I put an old style hex dogging kit (050153) on my 99 panic device?
A: We don't recommend to use the old style hex dogging kit into the new 98/99 exit device but it would fit as long as the device is not fire rated.
Q: What electrified trim will work with 98 or 99 series devices?
A: The only electric trim that is used with the 98/99 series exit device that Von Duprin offers is E996L lever trim. This trim is used to lock or unlock the lever trim for the 98/99 series exit devices.
Q: Does Von Duprin's factory refurbish exit devices?
A: Von Duprin does not offer a service to refurbish exit devices at the factory.
Replaceable service items for some exit device parts are available for sale.
Please reach out to our sales department at the link as seen here:
Click Here
for further assistance with replacement parts.
Q: Does Von Duprin make a keypad lever trim?
A: Von Duprin used to offer a KP992L trim that was operating the 98/99 series exit devices but it was discontinued in mid 1990. Von Duprin does not make a keypad trim any longer.
There are several available options from Von Duprin’s sister company Schlage Electronics and a link to that manufactures landing page with that are sites can be seen here along with links to their current and prior catalogs:
Click Here
Q: If a customer orders a 99-F-2SI conversion kit (050884 for example), would it be etched with the "UL FIRE" on the center case?
A: The kit are not etched but have a UL fire rated sticker instead.
Q: What is the part number for hex dogging conversion kit for a 99 device?
A: The part number for hex dogging conversion kit for 99 devices is 050114 as seen here:
Click Here
Q: What mullions should be used with XP devices?
A:
The Von Duprin XP98/99 device uses a different strike than standard 98/99 device.
The 909 strike is for non fire rated XP devices and the 954 strike is for the fire rated XP device.
49/9954 mullions are prepped for standard 98/99 devices with 299/499F strikes. These are different from the XPs 909/954 strikes.
To use an XP device with a mullion, order 4954-XP for non fire and 9954-XP for fire rated devices.
49/9954 blank mullions were used with XP devices up to March 2012 and customer had to prep the mullion for the XP strikes. From March 5, 2012 Von Duprin started offering the 49/9954 mullions with XP prep called 49/9954-XP.Q: Can the Chexit 98/99 be used with the E996 lever trim?
A: You can use the E996L electric trim with Chexit 98/99 series exit device.
Q: Does antimicrobial (AM) finish help with exterior applications for Von Duprin exit devices?
A: Antimicrobial finish does have similar properties to powder coat , and therefore will offer some protection against outside exposure.
However, Von Duprin devices have not been tested for full outdoor usage (except for 98/9952 pool gate device) and therefore Von Duprin does not make any claims for long-term durability of devices used in exterior applications.
Q: What Schlage cylinders and cams are used with Von Duprin exit devices?
A: The document as seen below identifies:
Schlage cylinder type
Schlage cylinder part #
Schlage cam type
for the exit device & trim series listed:
Download File
Q: What is the part number for the 99 series NL drive screw?
A: The part number for 98/99 series NL Drive Screw is 090074-00 as seen here:
Click Here
NL Drive Screw cant be substitute with a standard screw. It is a unique screw that has threads 1/2 way down the shaft.
Q: When are Panic Devices required?
A: The use of Panic Hardware and/or Fire Exit Hardware is required by the International Building Code (IBC) and NFPA 101 – The Life Safety Code, depending on which code and which edition of the code is being referenced.
The IBC 2006 and 2009 editions – requires Panic Hardware and/or Fire Exit Hardware on egress doors with an occupant load of 50 people or more in the following occupancies:
Educational
Assembly Occupancies
All High Hazard occupancies (regardless of occupant load)The IBC 2000 and 2003 editions - requires Panic Hardware and/or Fire Exit Hardware on egress doors with an occupant load of 100 people or more in the following occupancies:
EducationalAssembly Occupancies
Certain High Hazard occupancies (regardless of occupant load)NFPA 101 – The Life Safety Code has not changed the threshold for occupant load in regard to panic hardware as of the 2009 edition, so the 100 occupant figure still applies to projects where NFPA 101 is being enforced. The requirements for High Hazard occupancies also differ between NFPA 101 and the IBC, so consult the pertinent code for more information.
Other requirements for panic hardware include:
The actuating portion of the panic device must be at least half the width of the door.
The maximum unlatching force shall not exceed 15 pounds.
Panic hardware used on balanced doors must be touchpad type, and the touchpad must not extend more than half the width of the door measured from the latch side.
Doors serving electrical rooms with equipment rated 1,200 amperes or more and over 6 feet wide that contain overcurrent devices, switching devices, or control devices with exit access doors. Q: Can a panic device be converted to a fire-rated device in the field?
A: A standard exit device cant be modified to a fire rated exit device. In order to get a product with the UL fire label, a new device must be purchased. This is a UL requirement.
Q: How does the Von Duprin 98/99 rim or vertical rod exit device with lever trim convert from L to L-NL function?
A: To convert the Von Duprin 98/99 Rim or Vertical (Rod or Cable) Exit Device with functional lever (996L-R/V) to act like a rigid lever (996L-NL-R/V) with key over ride follow these steps:
Remove the NL screw from the cam located on the back of the center case of the 98/99 exit device.
Rotate the cam with screw driver clockwise or counter clockwise until the slider on the back of center case moves to the down position.
Reinstall the NL screw back into the cam assembly. Q: What strike do I use with a Von Duprin rim device on a pair of doors with flush bolts?
A: NON Fire Rated doors would use the 1609 strike applied to the inactive leaf with flushbolts. This may NOT be used on Fire Rated openings.
Q: What electric strikes are available for Von Duprin rim exit devices?
A: The 22, 33/35A and 98/99 rim exit devices:
The 6111 is the most common electric strike to be used with these devices
6112 and 6113 electric strikes also could be used
The 6300 surface mount electric strike can also be used
You will need to look at the templates to determine what is best for your door, frame and stile width conditions.
The 88-F rim device:
Only compatible with 6111 electric strike
The 55 rim device:
Strike lip is different on 6111, 6112 and 6113 x 55 rim device. Specify 55 rim x 6111, 6112 or 6113. Q: Is the Von Duprin 1609 strike fire rated for pairs of doors?
A: The Von Duprin 1609 cannot be used on a pair of fire rated doors. We recommend using the Von Duprin fire rated mortise exit device in lieu of the rim device such as the Von Duprin 5575-F, 8875-F or 9975-F fire rated exit devices.

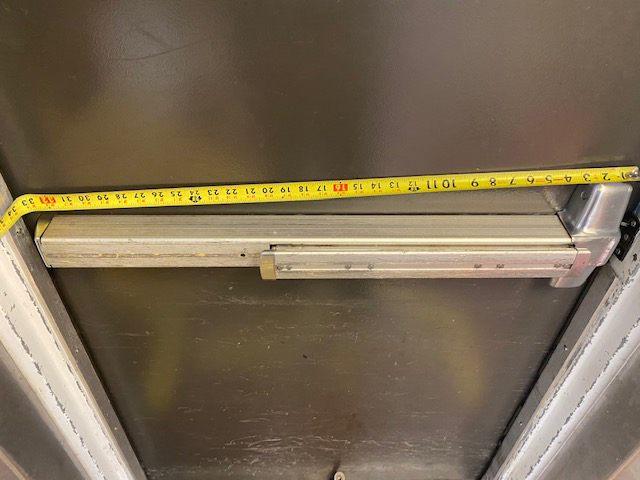

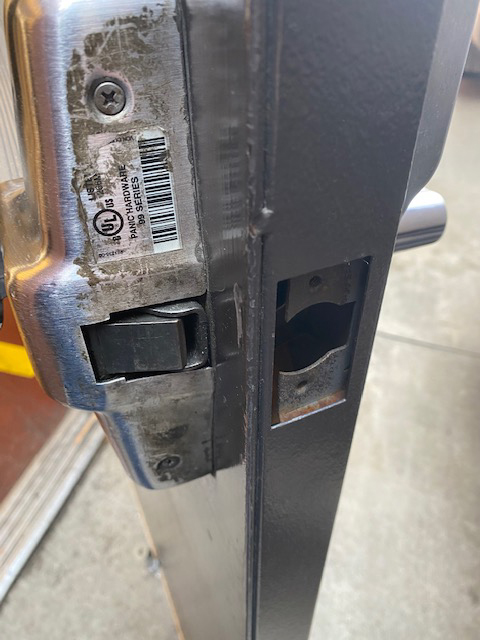

Q: Von Duprin 99EO Rim Exit Device Device
A: The 98/99 rim device can be converted to double cylinder 98-2 or 99-2.
Double cylinder features an inside key cylinder which locks or unlocks the outside trim (Classroom Function) and an outside cylinder which
retracts the latch bolt only (Night Latch Function) when outside trim is locked.
98/99-2 conversion kit for RHR door is 050388-Finish and 050389-Finish for LHR door.
These kits includes center case, center case cover and cylinder mounting hardware.
These parts can be purchased separately. See parts price book.
To rehand a 98-2 or 99-2 you need a new handed center case and new handed center case cover.
Double cylinder cant be used on a 98/99-EO device. It requires a Classroom trim.
98-2 or 99-2 requires two rim cylinders one for device side and one for trim side.
Q: How does the 98-2 or 99-2 double cylinder function affect the outside lever trim?
A: Double cylinder (-2 or -2SI) features an inside key cylinder which locks or unlocks the outside trim and an outside key cylinder which retracts the latch bolt only (Night latch function). This is only available on rim or mortise lock devices.
Rim devices require two rim type cylinders. Mortise devices require 1 rim cylinder and 1 mortise cylinder (1 1/4" with a straight cam). (Schlage cam reference L583-475.)
Available functions are thumbpiece, knob or lever.
Q: Can the 99 be done as a double cylinder?
A: Sure can, it becomes the 99-2.
Q: Can the fire label be replaced on a Von Duprin device?
A: The UL fire label is only applied to the device center case cover at the factory when the device is built. This label can not be sold or replaced with a new one.
A new device would need to be purchased or you can contact UL or Intertek and have them come and re-certify the exit device.
Q: Do Von Duprin Exit devices meet the 5 pound force requirement for opening an ADA handicapped door opening?
A: The 5 pound force requirement is in reference to the maximum force to swing the door, not the maximum force allowed to unlatch the exit device. Maximum allowed force to retract the Von Duprin exit devices is 15 pounds per ANSI.156.3.
Except in California as of 1/1/2014,
With California Builders Code changes effective 1/1/2014, •CBC (2013) 11B-309.4 Accessibility to Public Buildings, the five pound maximum "in California" now includes unlatch force for panic exit and fire exit devices.
In May 2014 Von Duprin introduced the AX series EXIT device. The AX has five pounds or less touch bar activation force and is UL Certified to be CBC (2013) 11B-309 compliant.
Q: Are there any instructions for Von Duprin device maintenance?
A: Please see the Maintenance Kit Manual here:
Download File
for information on device lubrication as well as complete breakdowns and parts lists for Von Duprin exit devices.
Exit devices and latches are lubricated before delivery. Additional periodic lubrication will increase device life by inhibiting excessive wear of moving parts.
Q: Does the cylinder cam get inverted on the SD option for the Von Duprin 99 exit device?
A: A 1 1/4" cylinder with straight cam is required for the Von Duprin SD (Special Dogging) exit device option. The cylinder cam must be inverted with the SD option to work properly.
Q: Can I use CD and ALK on a 98/99 series Von Duprin?
A: Standard 98/99 exit alarm ALK devices are available with cylinder dogging option as of October, 2011.
The device can be ordered standard with cylinder dogging and exit alarm ALK option on non fire rated exit devices.
This CED-ALK combination is available on 33A/35A Series exit devices as special order products. but not on 22 series devices.
Exit alarm ALK kit is rotated 180 degrees opposite of standard to provide cylinder dogging option.
3 minimum door opening is required for 3 device with an exit alarm ALK and cylinder dogging and 3 6" minimum door opening for 4 device.
Q: Is the Von Duprin 2' door device provided with a UL label?
A: The Special Von Duprin 2' door device as of 02-07-14 is now shipped with UL Panic Hardware label or UL Fire Exit Hardware label. The 2’ devices are most commonly used in 5’ wide door opening applications where a combination of 3’ and 2’ leaves are used.
Q: We are providing door hardware for an exit door. The door has a wood panel on the face so it blends in with the wall panels. We have been asked to provide a von Duprin 99 series panick bar. Will any of these work with a panel or do we have to cutout the panel to receive the hardware? It’s a ¾” panel that will be 1” off the face of the door.
A: Modifying the door may be an option as well as custom shims, which we can provide. send a cross section of the door/panel as well as the jamb section.
Q: Hello, I am trying to find an exit device for a laundry facility. They have a 3’-6” narrow stile aluminum door in bronze finish with 2-1/8” stiles, and are wanting a rim exit device that has timed locking capabilities (unlocked from 8-5, locks automatically after). I know there are some lever trims that have that functionality, like the Alarm Lock ETDL series, but I’m not sure if that will interface with a panic that will fit a door stile that narrow. Are you aware of anything that would work for this application?
They are hoping to not have to add a power supply, that’s why I was thinking of the electrified trim as I know there are battery operated options. But I am open to other options if it makes more sense to do so.
A: While I prefer latch retraction on the exit device with a keypad on the ingress side, the Alarm Lock DL1300ET x Alarm Lock TP-1698 x Jackson 1095 would meet your requirements.
