Trine EN400

Name: Trine EN400 Electric Strike
Brand: Trine
SKU: Trine EN400
Price: 368.68 USD

Trine EN400 Electric Strike

× This image is for a similar product but it will differ in size, color and/or other attributes.

Price: $368.68 USD

Comments (Optional)

ADD TO CART

In Stock (Minimums Apply):

For quantities beyond the "In Stock" above, the item(s) ships in 1 business day.

Additional Declarations - This manufacturer has an order minimum of $85.00 - if your total is less than this amount, the lead time approximately 2-3 weeks before it would ship. Simply exceed this minimum order amount so that we can drop ship the material to your location.

+ Add to My Wish List

1-844-809-3667

Sales

[email protected]

Technical Support

[email protected]

Product Description:

Trine EN400 Electric Strike

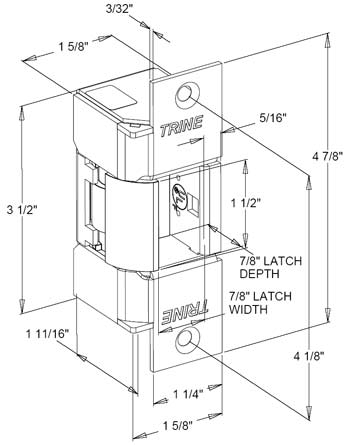

EN400 Product Dimensions

EN Series Catalog Page

EN400 Catalog Page

Gatebox Dimensions

Metal Frame Preparation

EN400 & EN400RP Instructions

FEATURES
	FACE PLATE - ANSI 1-1/4" X 4-7/8"
	FAIL SECURE/FAIL SAFE: FIELD REVERSIBLE ON DC UNITS
	ALL STAINLESS STEEL CONSTRUCTION
	DURABILITY - 1,000,000 LIFE CYLCLES
	HOLDING FORCE - 2000 lbs. UL tested
	FIELD ADJUSTABLE - Left or Right Handing in Minutes
	CAVITY DEPTH - 7/8", CAVITY HEIGHT-1-1/2", CAVITY WIDTH - 3/4"
	UNIT INSTALLS FLUSH WITH THE FACE OF THE JAMB FOR A TRULY ASTHETIC LOOK
	MORTISE TYPE- Backset1 11/16" deep

STANDARDS
	UL LISTED - 10B fire rated ( Class A, 3-hour Single Swing Doors)
	UL LISTED - 1034 Burglary Resistant Locking Mechanism for Indoor or Outdoor Use
	ANSI - 1-1/4"X 4-7/8" Fits cutout Specification A115.1 ( With Slight Jamb Modification)
	BHMA - A156.5 - 1992 Grade 1

OPTIONAL FEATURES

NEW EN-LB: OPTICAL IR LATCHBOLT SENSOR AVAILABLE
EN-CA: Additional coil assemblies available in all voltages listed
LOW VOLTAGE BUZZER for audible signal when using DC voltage. Specify BZ-12 for 12 VDC or BZ-24 for 24 VDC.

FINISH (Specify When Ordering)
SATIN BRASS - US4 BRIGHT BRASS - US3 STANDARD FINISH - Satin Stainless Steel US32D DARK BRONZE - Powder Coated BRIGHT CHROME- US26
ELECTRICAL CHARACTERISTICS CHART**
FOUR MAGNETIC COILS AVAILABLE Color coded wires depict the voltage of each coil.
VOLTAGE	WIRE COLOR
12 VAC	Blue(1) Orange/White(1)
24 VAC	Orange(1) Black/White(1)
12VDC	Orange/White(2)
24VDC	Black/White(2)

FAIL SECURE - NORMALLY LOCKED (Unlocked when energized) Units with AC coils are for Fail Secure (Intemittent duty) use only and should be energized for periods of less than one minute
VOLTAGE	CURRENT AMPS	OHMS	SOUND	DUTY
12VAC	.70	4.5	Buzz	Intm
24 VAC	.37	18.00	Buzz	Intm
12VDC	.28	43.00	Silent	Intm/Con
24VDC	.15	164.00	Silent	Intm/Con

FAIL SAFE (Reverse Action) NORMALLY UNLOCKED(Locked When Energized) Fail safe action (continuous duty) can only operate with DC coil assemblies. Units with DC coils are field reversible, fail safe action or fail secure continous duty operation. Strikes which are energisezed for periods longer than one minute need to use DC coils.
VOLTAGE	CURRENT/AMPS	OHMS	SOUND	DUTY
12 VDC	.28	43.0	Silent	Intm/Cont
24 VDC	.15	164.0	Silent	Intm/Cont

COMPATIBLE LOCKSET
ACCURATE	62, 67, 76
ADAMS RITE	4700-8300, 8400
ARROW	C, H, M, L
BEST	5, 7, 50, 6TDL
CORBIN	9200-9500, UNIT LKS, CL3000, CL4000, ML2200
DOMINION	300, 400, 5000
GUARD	1990
FALCON	A, BA, D, E, F, N, S
HARLOC	49/5900, 6900
LOCKWOOD	930/970, 8000
LSDA	1000-1500, 100-150
MARKS	8000-9000, 5000
MEDECO	EMBASY
MONARCH	18-M
NATIONAL	400
PDQ	SR, SV, SX
PARKER	160A, 9100, L7100, 2800
RUSSWIN	5400, UNITS LKS, CL3000, CL4000, ML2200
SARGENT	7700-8100, 6, 7, 8, 9, 10
SCHLAGE	K-L MORT, A, B,D, F
TACO	ED, HV, LXV, SV, MLV
UNICAN	1000, 6000, 7004
WEISER	A, BA, D, E
YALE	8600-8700, MONO LK

How to reverse the hand of the Exterior Rated Electric Strike for Gate Application EN400 x 12VDC x Hand

Video Detail Page

Questions and Answers

Q: How to wire the power to a Knox Switch with 12 V/DC and Fail Safe? Is there are a switch on the strike?

A: Please provide me with a part number of your Knox Switch. I will review that items installation instructions and advise. Could you assume it is a simple key switch and if you want the electric strike to operate as fail-safe that means the switch will have to be normally closed and that operating the key switch will open the circuit allowing the strike to become d energized and therefore unlocked.
