Trine 001C

Name: Trine 001 Standard Electric Strike Chrome
Brand: Trine
SKU: Trine 001C
Price: 75.47 USD

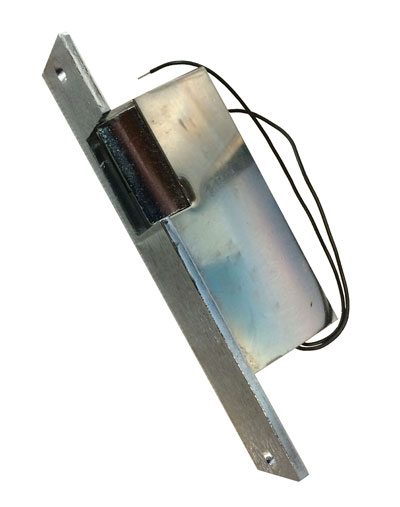

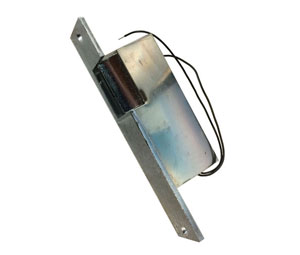

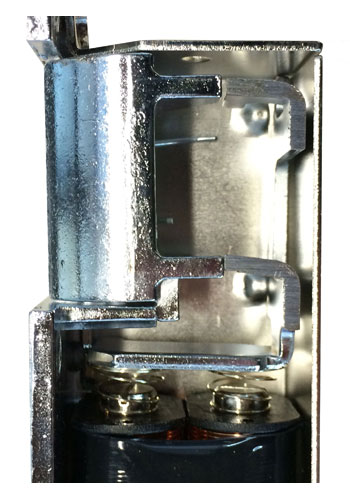

Trine 001 Standard Electric Strike Chrome

× This image is for a similar product but it will differ in size, color and/or other attributes.

Trine 001 Standard Electric Strike Chrome

Price: $75.47 USD

Comments (Optional)

ADD TO CART

This item is not in stock and typically ships in 1 business day.

+ Add to My Wish List

1-844-809-3667

Sales

[email protected]

Technical Support

[email protected]

Product Description:

Untitled Document

Trine 001 Standard Electric Strike Chrome

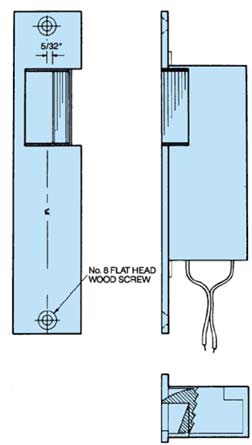

001 PRODUCT DIMENSIONS

Printable Catalog Page

FEATURES
	FACE PLATE – 1-7/16” X 5-7/8"
	DURABILITY – 500,000 Life cycles
	HOLDING FORCE – 1100 lbs
	AUXILIARY LEVER RAMPS - 2-7/8”; – For locksets with auxiliary dead locking levers
	SOLID CAST LATCH – Chrome Plated Cavity Depth - 1/2”; Width - 9/16”; Height - 1-3/8”
	NON-HANDED HEAVY DUTY LATCH SPRING
	MORTISE TYPE – Backset 1-9/16” Deep
	FAIL SECURE – (Standard Action) Unlocks When Energized
	ONE-PIECE RELEASE MECHANISM – (U.S. Patent #4,984,835)

FINISH (Specify When Ordering)
	BRASS – Powder Coated (001)
	SATIN CHROME – US26D (001C)

ELECTRICAL CHARACTERISTICS

8-16 VAC/4-6 VDC (Standard Voltage): 2 Black Wire Leads
12 V24 VAC: 2 Red Wire Leads
DC: 1 Red Wire Lead, 1 White Wire Lead
24 VDC: 1 Black Wire Lead, 1 White Wire Lead

FAIL SECURE - NORMALLY LOCKED (Unlocked when energized)
VOLTAGE	CURRENT AMPS	OHMS	SOUND	DUTY
8-16 VAC/ 4-6VDC	1.3-2.7	1.4	Buzz	Intm
12 VDC	.40	30.0	Silent	Intm/Con
24 VAC	1.40	4.7	Buzz	Intm
24 VDC	.19	125.0	Silent	Intm/Con

FAIL SAFE (Reverse Action) NORMALLY UNLOCKED (006RS) (Locked When Energized) Continuous Duty DC Coil which is energized for longer than one minute. Add RS to catalog number when ordering
VOLTAGE	CURRENT/AMPS	OHMS	SOUND	DUTY
12 VDC	.40	30.0	Silent	Intm/Cont
24 VDC	.19	125.0	Silent	Intm/Cont

COMPATIBLE LOCKSET
ACCURATE	62, 67, 76, 7800
ADAMS RITE	4700-8300, 8400
ARROW	C, H, M
BEST	5, 7, 50, 6TDL
CORBIN	1400-5600, 6100-6600
DEXTER	DEXLOCK, DURALOCK
DOMINION	300, 400, 5000
GUARD	1990
FALCON	A, BA, D, E, F, N, S
HARLOC	49/5900, 6900
KWIKSET	400-500, 582, 583
LOCKWOOD	900
LORI	80/8200, 81/8300,
LSDA	1000-1500, 100-150
MARKS	110
NATIONAL	400
PDQ	SR, SV, SX
PARKER	160A
RUSSWIN	3400, 4300
SARGENT	6, 7, 8, 9, 10
SCHLAGE	A, F
TACO	ED, HV, LXV, SV
TAYMOR	28
UNICAN	6000, 7004
WEISER	A, BA, D, E
WESLOCK	ALL LOCKS
YALE	5200, 5300

Video Detail Page

Questions and Answers

Q: I see from the pic that this strike is used where the latch is on the top is it possible to get this so the strike is on the bottom instead. i.e. the 5th pic down shows it for use on the top where in my case i need it for the bottom as the deadbolt would normally be on the top.

A: It is the same strike shown in all photos. Is your frame already prepped for the strike?
