TownSteel MRX-A-L 33 Arch Levered US32D
TownSteel MRX-A-L 33 Arch Levered US32D
TownSteel MRX-A-L 33 Arch Levered US32D Double Cylinder Intruder Deadbolt Function Heavy Duty Ligature Resistant Mortise Lock with Arch Lever Trim - Satin Stainless Steel
×
This image is for a similar product but it will differ in size, color and/or other attributes.
×
This product review video is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
1,319.18 USD
In Stock Ready for Shipment
1. Select Handing
LH - Left Hand
RH - Right Hand
LHR - Left Hand Reverse
RHR - Right Hand Reverse
2. Select Keying Option
KD-Keyed Different (no charge)
KA-Keyed Alike (Add $16.00)
MK-Master Keying (Add $22.50)
3. Select Quantity of Keys
2 Keys (No Charge)
5 Keys (Add $12.00)
10 Keys (Add $22.50)
20 Keys (Add $45.00)
4. Select Key Stamping Charge
Not Required
2 Keys (Add $3.00)
5 Keys (Add $7.50)
10 Keys (Add $15.00)
20 Keys (Add $30.00)
5. Indicate Key Stamping Information
(Optional)
Comments
(Optional)
ADD TO CART
This item is not in stock and typically ships in 3-5 business days.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
This item has minimum order levels that need to be met.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-844-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
MRX-A-L 33 Arch Levered US32D Double Cylinder Intruder Deadbolt Function Heavy Duty Ligature Resistant Mortise Lock with Arch Lever Trim - Satin Stainless Steel
The MRX-A-L series Mortise Lockset with Ligature Resistant Arch Lever Trim is designed for facilities housing patient and individuals at risk
MRX-A-L with 5-Point Ligature Resistant Arch trim for new or retrofit application
Integral part of the Health/Safety and Accident Prevention programs
5 Point design: a 0.5 mm diameter wire or greater cannot be attached to the lock from any direction (up, down, horizontal right, horizontal left or perpendicular to surface of the door)
High quality stainless steel components
Tamper resistant security stainless steel mounting screws
Horizontal or vertical trim mounting
Variety of mortise functions available to fit unique security and safety requirements
Meets or exceeds all performance testing of ANSI A156.13 Grade 1 Mortise Locks
UL & ULC Listed 3-Hour Fire Rating
Double Cylinder
Style: Arch Trim
Function: Intruder Deadbolt (33)
Trim: with Arch Levered
Finish: Satin Stainless Steel (US32D)
Please Select Handing when placing an order.
How to Order
Functions
Handing
Template
Installation Guide
Product Brochure

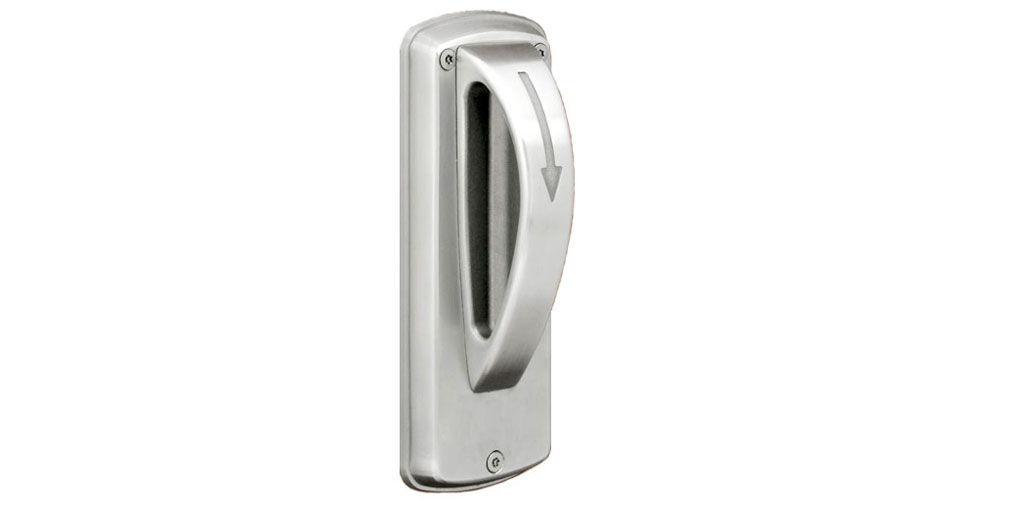

Arch Levered Type
Click to Enlarge

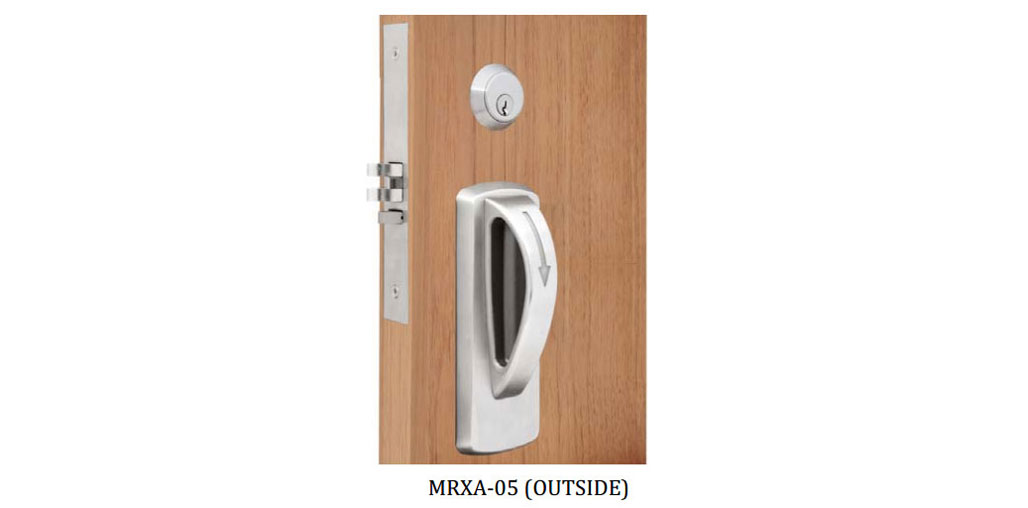

Arch Trim
Click to Enlarge

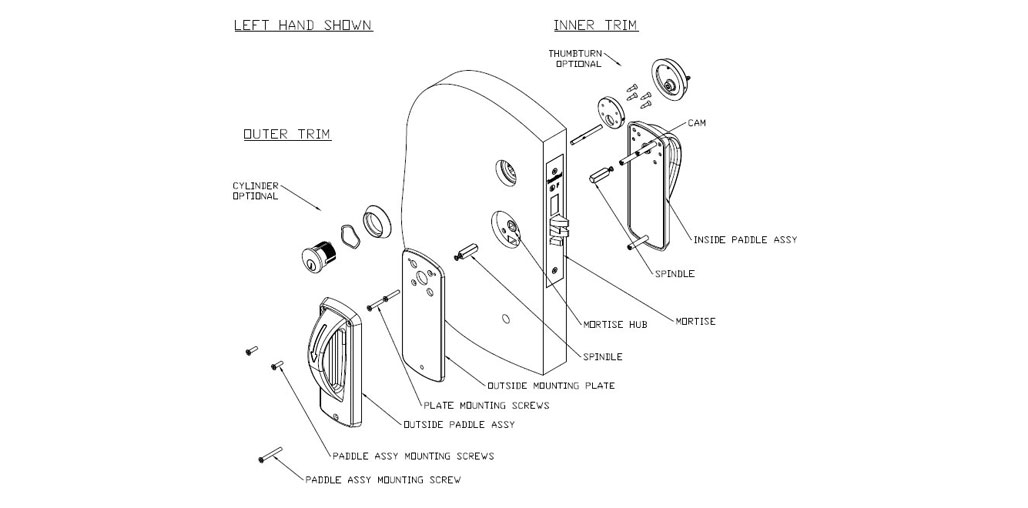

MRX-A-L Series Ligature Resistant Mortise Lock Profile
Handing Chart
Click to Enlarge
Click to Enlarge
Keying Options
- Please Select Keying Option, Key Quantity and Key Stamping when placing an order.
Select Keying Option:
KD standard, KA, MK available.
Select Quantities of Keys:
2 keys are included with the lock itself, however additional keys are available for additional charge. Keying charge includes Two keys per change. Master Key Not included.
Select Key Stamping:
If key stamping is required an additional fee wil be charged. Please select the number of keys equal to the quantity of keys selected above.
Indicate Key Stamping Information (Optional):
Please provide us with a max. 6 characters.
Additional Product Information
Door Thickness:
1-3/4" Standard
Backset:
2-3/4"
Handing:
Handed, field reversible
Finish:
US32D
Function:
Most ANSI functions available
Cover Plate:
Stainless Steel, 7-1/2" x 2-3/4" x 1/2"
Arch Lever:
Stainless Steel
Thumb Turn:
Ligature resistant, ADA compliant standard
Faceplate:
Stainless Steel, 1-1/4" x8"
Strike:
Stainless Steel, ASA, 1-1/4" x 4-7/8"
Mounting:
Through-bolt, tamper resistant mounting screws, for wood and metal door
Cylinder:
Brass with stainless steel cover, 6pin, Schalge "C" keyway standard, 2 keys per cylinder
Small Format IC:
Available with or without core, 6 or 7pin core
Schlage Large Format IC:
Available in less core
Corbin Large Format IC:
Available in less core, for 6pin core
High Security Cylinder:
Available, TownSteel "L" keyway, 6pin
High Security SFIC:
Available, TownSteel "L" keyway, 7pin
Code Compliance:
ANSI/BHMA:
Mortise body is ANSI/BHMA A156.13-2005 Grade 1 Certified
UL/ULC:
Mortise body is UL/ULC 10C listed 3-hour rating
BAA:
Meet the Buy American Act
ADA:
Meets requirements of the Americans with Disabilities Act
Warranty:
10-Year Limited
TownSteel has been manufacturing commercial hardware for over 25 years. They take pride in their ability to maintain a product that keeps people safe. Over 25 years, they've grown into an international enterprise with major category-leading security products sold in over 20 countries.
