Soss 220ICUS10BL

Name: Soss 220ICUS10BL Invisible Hinge 220IC Series US10BL - Oil Rubbed Bronze, Lacquered
Brand: SOSS
SKU: Soss 220ICUS10BL
Price: 239.25 USD

Soss 220ICUS10BL Invisible Hinge 220IC Series US10BL - Oil Rubbed Bronze, Lacquered

× This image is for a similar product but it will differ in size, color and/or other attributes.

Soss 220ICUS10BL Invisible Hinge 220IC Series US10BL - Oil Rubbed Bronze, Lacquered

Price: $239.25 USD

Comments (Optional)

ADD TO CART

In Stock (Minimums Apply):

For quantities beyond the "In Stock" above, the item(s) ships in 2-3 business days.

Additional Declarations - This manufacturer has an order minimum of $85.00 - if your total is less than this amount, the lead time approximately 2-3 weeks before it would ship. Simply exceed this minimum order amount so that we can drop ship the material to your location.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Invisible Hinge 220IC Series US10BL - Oil Rubbed Bronze, Lacquered

SOSS® Invisible Hinge model #220IC is ideally suited for most types of doors that are 2″ thick. The model #220IC is made of zinc and steel materials. Nylon links provide added strength and durability. The SOSS Invisible Closer gives you a closer that is totally invisible from either side when the door is closed. The closure rate is completely adjustable with an allen wrench after installation, and does not require removal of the spring closer. Installation can be either inside the door itself or inside the door jamb. SOSS® Invisible Hinges open a full 180° and are a single action hinge.

Model 220IC Invisible Closer Hinge
Full Sized Entry, Metal, Wood Applications
Finish: Oil Rubbed Bronze, Lacquered
Suited for all type of doors
20 Minutes Fare Rated
Door Thickness: 2" (50.80mm)
Wood and Machine screws are included.
The Underwriters Laboratories labeled the model #220IC SOSS Invisible Hinge can be used on hollow metal, sheet metal, tin clad, steel composite or wood core swinging type fire doors and frames with a 20 minute rating. Allow one closer for every 55 lbs of door weight or portion thereof. Fire Rated applications also require one fire rated hinge for every 20″ of door height or fraction thereof. The calculation that requires more hinges is the total number of hinges required.
Recommended spacing for use of one spring closer is half of the distance from the center line of the door to the center line of the top hinge. Please reference the hinge spacing drawing.
Unit of measure: Each. Sold as each. When you order one, you will be sent one piece. Price is for one piece.

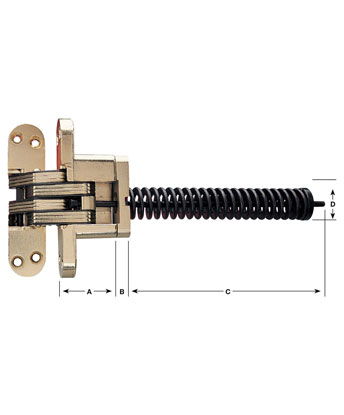

A 1-63/64″; B 3/8"; C 6-7/8″; D 1"
