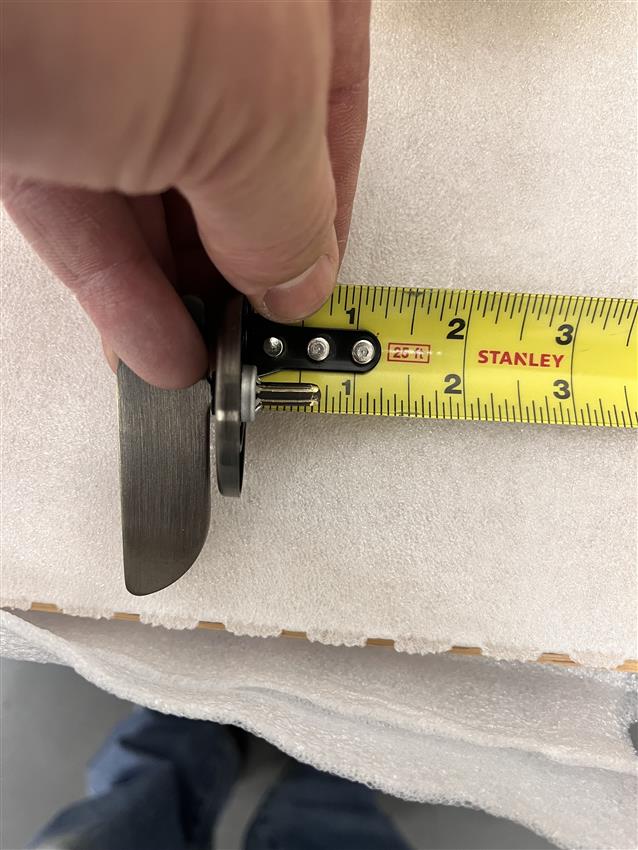

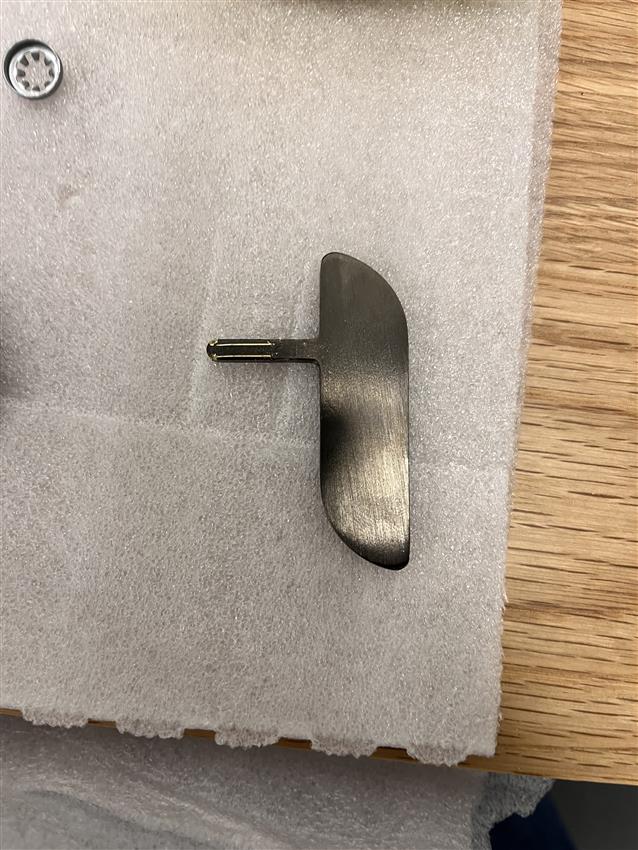

Schlage L900 Lockset Finish 613 Lever 01 A Rose, ADA thumbturn 09-509 L583-363, Indicator 09-611 LEFT HAND W 1-1/16” face plate rather than the 1 ¼”

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
Schlage L900 Lockset Finish 613 Lever 01 A Rose, ADA thumbturn 09-509 L583-363, Indicator 09-611 LEFT HAND W 1-1/16” face plate rather than the 1 ¼”
More from Schlage
Price: $1,162.81 USD
Ships From
Comments (Optional)
In Stock:
Quick Ship - up to 10 units available to ship in 0 business day
Standard - ships within 14 business days.

1-844-809-3667

Sales
Technical Support
Product Description:
Questions and Answers
Q: I have an application where I need to use the following two parts together 09-487 x 09-611 Is the length of the 09-487 x L583-254 correct for the 09-611 equally centered on an 1-3/4" door?
A: For the 09-487 when using it with the 09-11 you need the 1-3/8" length 09-487.

Rule of thumb on the 09-487:

  • 1-1/8 for a standard lock
  • 1-1/4 for a NEW style indicator
  • 1-3/8 for the OLD 09-611 style indicator that comes with the L9496

    1-3/8 is the one

  • (Required, used to email you once question is answered.)
