Schlage A170 PLY 626 Grade 2 Single Dummy Lockset with Plymouth Knob - Satin Chrome


Schlage A170 PLY 626

Schlage A170 PLY 626 Grade 2 Single Dummy Lockset with Plymouth Knob - Satin Chrome


Manufacturer: Schlage
Price: $51.84

  Volume Price Information
 Buy 12 or more and pay $49.25 each (save 5.00%)
 Buy 36 or more and pay $46.66 each (save 10.0%)
 Buy 72 or more and pay $44.06 each (save 15.00%)





  Order Options:


Comments (Optional)


  Qty:

  Add To Cart

Availability Information
Quick Ship Item
Immediate - in stock ready for shipment.
Standard - ships in 1 business day.
Additional Declarations - This manufacturer has an order minimum of $85.00 - if your total is less than this amount, the lead time approximately 2-3 weeks before it would ship. Simply exceed this minimum order amount so that we can drop ship the material to your location.

Similar Product Video
This product review video is for a similar product but it will differ in size, color and/or other attribute. We still feel the video will be of value to you.
Email Friend
More from Schlage
This item ships from MA.

A170 PLY 626 Grade 2 Single Dummy Lockset with Plymouth Knob - Satin Chrome
Schlage A-series
Dummy Function: Dummy trim for one side of door. Used for door pull or as matching inactive trim.
  • Cylindrical lock housing; cold-rolled steel, corrosion treated for normal atmospheric conditions.
  • Key-removable outside knobs for easy cylinder replacement.
  • Solid brass 6-pin cylinders.
  • No exposed mounting screws.
  • Meets or exceeds 400,000-cycle ANSI Grade 2 requirements.
  • UL/cUL Listed up to 3 hours.
  • Heavy-Duty Residential/Medium Duty Commercial
Available Finishes
Polished Brass
605
Satin Bronze
612
Oil Rubbed Bronze
613
Polished Chrome
625
Satin Chrome
626


Questions and Answers

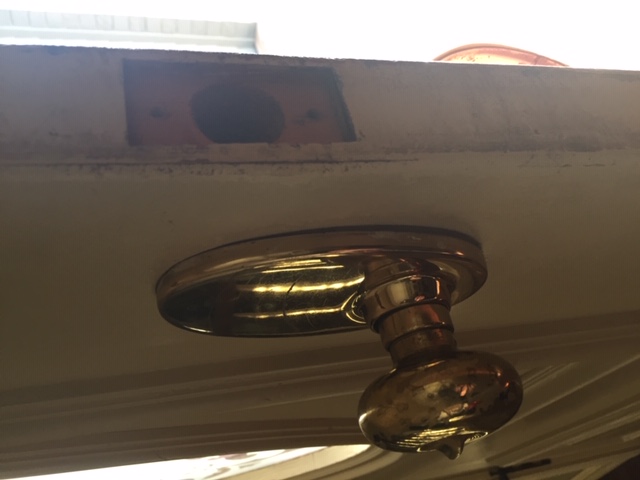

Q: Hi Richard these are the pictures :

View Image

View Image

View Image

View Image

View Image

looking for some help to get my lock back up and running Paul F

A: Without consulting an old catalog that I have i would say that the part number of the locks that you have would be the Schlage EB51 PLY x 605 (that lock was manufactured from the 1950s up until about the very early 1990s) and while there are no replacement parts available for it with the exception of the latch bolt because that latch bolt is used in the Schlage B250 series locksets, and additionally I bet you could purchase the interior knob as well although I have never investigated that, I am happy to report that we will be able to supply you the item you need.

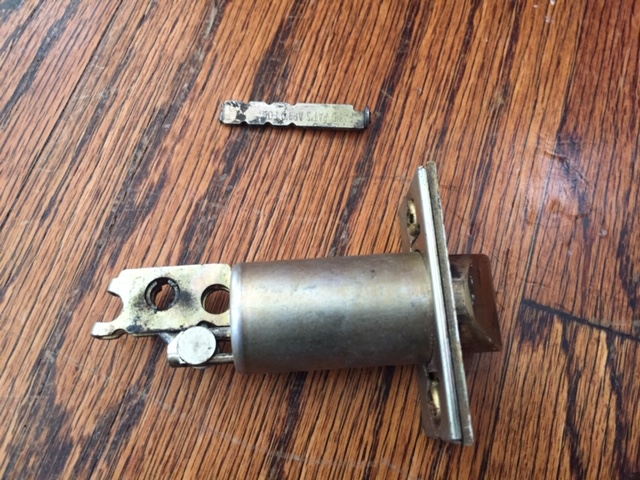

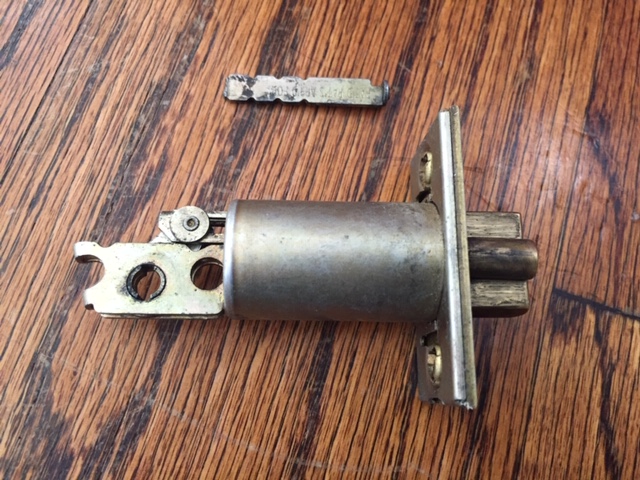

Thank you for the photographs and we spoke on the telephone were you indicated that the problem was centered on a malfunctioning striker as you called it but we're going to turn it latch bolt as that is the industry standard terminology for that piece of hardware that comes out of the edge of the door itself and where you told me the edge of the door to the center of the hole was 2-1/2” and that would of course translate to the 2-?” dimension of the latch bolt which would be the Schlage 12-100 Square Corner Deadlatch, 2 3/8" Backset As seen here:

Click Here
