9Series

Name: Rixson Offset Pivot Hung 9 Series
Brand: Rixson
SKU: 9Series
Price: 360.52 USD

Rixson Offset Pivot Hung 9 Series

× This image is for a similar product but it will differ in size, color and/or other attributes.

Price: $360.52 USD

Comments (Optional)

ADD TO CART

For quantities beyond the "In Stock" above, the item(s) Made to order. Call for current lead time.

+ Add to My Wish List

1-773-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

The Rixson® Checkmate Stops and Holders auxiliary door control for wall and door protection

Overhead stops are used to protect door assemblies. They cut down the wear and tear of frequency, closing mechanisms, wind gusts, abuse and vandalism. By limiting the door travel, they can add years to the life of the door, frame, and handing means. Overhead holders and friction stays add convenience for the end user who already appriciates the need for the overhead stop.

Product Description & Features
• Non-handed
• Slide track design
• Recommended for high-traffic, heavy
abuse installations
• Heavy shock absorber spring provides
5°-7° compression before deadstop
• On/off knob on hold open models
• Stop, friction stay or hold open function
• Complete screw packet allows for
installation in wood or metal door and
frame
• For security areas Torx® screws, optional
• Standard architectural finishes
• Non-metal slide block and shock block
• 110° maximum opening
• 1-3/4" minimum door thickness
• LS option available for doors being
used with electromechanical closers and
floor closers with dead stop
• To mount on pull side of door, use
bracket 5458 LH or 5459 RH
• Track is 1-3/16" square tube
• UL listed

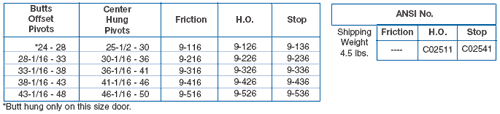

	Door opening Chart (in inches)	Model Number

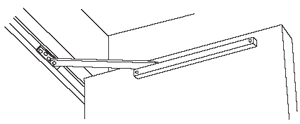

TYPICAL INSTALLATIONS SURFACE MOUNTING

	Method No. 1 - Standard Installation (Push side of door) Nos. 8HD, 9, 10, 55 Series The jamb bracket mounts on the stop strip with wood or machine screws. The channel or door bracket mounts with sex bolts.
	Method No. 2 - Rabbeted Door Installation (Push side of door) Nos. 8HD, 9, 10, 55 Series A special angle jamb bracket adapter mounts on the header with wood, machine screws or sex bolts. The jamb bracket attaches to the adapter with machine screws. The channel fastens to the door with sex bolts. (Same bracket as used with Method 3 and 5. See catalog for bracket number.).
	Method No. 3 - Flush Door Installation (Push side of door) Nos. 8HD, 9, 10, 55 Series This method of installation is identical to Method No. 2 for Rabbeted Doors. (Same bracket as used with Method 5. See catalog for bracket number.).
	Method No. 5 - Reverse Installation (Pull side of door) Nos. 9, 10 and 55 Series The jamb bracket adapter is secured to the header with wood or machine screws. The jamb bracket fastens to the adapter with machine screws and the channel mounts on the door with sex bolts. (Same bracket as used with Method 2 and 3. See catalog for bracket number.)

BHMA**	US	DESCRIPTION
689		Sprayed Aluminum
690		Sprayed Dark Bronze
691		Sprayed Light Bronze
600/674	P	Prime Coat
696		Sprayed Gold
605*/632	3	Bright Brass
606/633	4	Satin Bronze
619	15	Satin Nickel
618	14	Bright Nickel
622/693	19	Coated Black
627/628	27/28	Coated Aluminum
612/639	10	Satin Bronze
613/640	10B	Oil Rubbed Bronze
625/651	26	Bright Bronze
626/652	26D	Satin Chrome
629*	32	Bright Stainless
630*	32D	Satin

If you have any questions regarding matching your custom application call us toll free at 877-631-9411 and we will be able to provide a door that fits your needs.
