R30FS

copy to clipboard

Rixson 30 Series Center Hung

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
Rixson 30 Series Center Hung
More from Rixson
Price: $1,628.13 USD
Ships From
  Volume Price Information
 Buy 12 or more and pay $1,546.72 each (save 5.00%
 Buy 36 or more and pay $1,465.32 each (save 10.0%
 Buy 72 or more and pay $1,383.91 each (save 15.00%
Comments (Optional)
Standard - ships in 1 business day.

1-844-809-3667

Sales
Technical Support
Product Description:
30 Series - Center Hung Floor Closer
----MODEL 30----
----Product Description & Features----
30 Series floor closers are double acting and non-handed. Maximum degree of opening 103°
Two closers in one-two sets of plungers and springs for positive door control. Overhead stop recommended.
Interior Doors
They may not be used on labeled doors and frames.
Weight to 200 lbs.
Available (NHO) non-hold open or AHO at 90° (door swings to 95°)
Sizes up to 3'6" x 7'0"
Steel cement case
---
Horizontal adjustment; adjusting screw on arm makes it possible to align door horizontally toward or away from frame and lock in desired position

Vertical adjustment: Door may be raised or lowered, through the use of shims.
Adjustable spring tension and closing speed
Models available to meet ANSI A117.1 requirements for physically handicapped acces-prefix "PH"
Delayed Action option available - prefix "DA"
Cold weather fluid available for temperatures from +15°F to -35°F specify "CWF"
Sealed closer available to prevent moisture from entering case - Prefix "SC"
Extended spindles available in 1/2" increments up to 2"

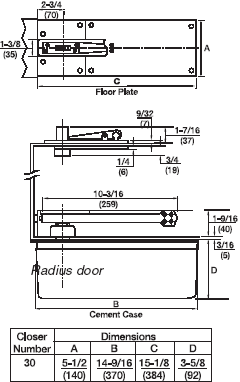

Available for floor plate or threshold application (floor plate shown)
RIXSON Floor Closer Catalog PDF or HTML
Call 847-561-4112 for installation support
