National Guard Products 422N 42"

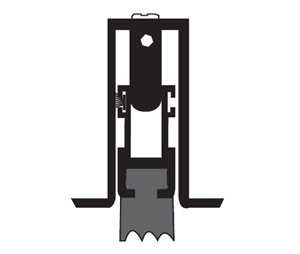

Name: National Guard Products 422N 42" Mill Finish Aluminum Automatic Door Bottom with Neoprene insert - Heavy Duty - Mortise Mount
Brand: National Guard Products
SKU: National Guard Products 422N 42"
Price: 171.14 USD

National Guard Products 422N 42" Mill Finish Aluminum Automatic Door Bottom with Neoprene insert - Heavy Duty - Mortise Mount

× This image is for a similar product but it will differ in size, color and/or other attributes.

National Guard Products 422N 42" Mill Finish Aluminum Automatic Door Bottom with Neoprene insert - Heavy Duty - Mortise Mount

Video Review National Guard Products 422N Mill Finish Aluminum Automatic Door Bottom with Neoprene insert

Price: $171.14 USD

Comments (Optional)

ADD TO CART

This item is not in stock and typically ships in 20 business days.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

National Guard Products 422N 42" Mill Finish Aluminum Automatic Door Bottom with Neoprene insert - Heavy Duty - Mortise Mount

Automatic Door Bottom with Neoprene Insert
Heavy Duty

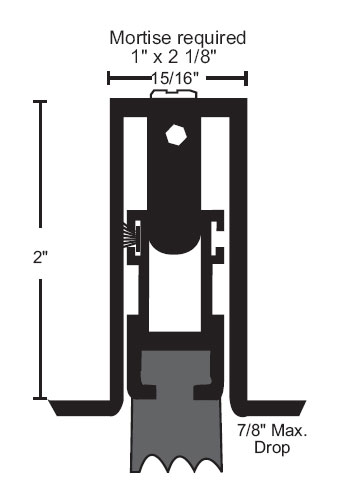

Length: 42"
Width: 15/16"
Heigth: 2"
Max Drop: 7/8"
Mortise required: 1" x 2 1/8"
Material: Aluminum
Finish: Mill Finish
Insert : Black Neoprene
Mortise Mount
Mounting: #4 x 5/8" SMS furnished
Use with a threshold for maximum sealing capability
Nylon brush recommended for carpet applications where no threshold is provided
Specify the exact net length required to avoid field sizing. Automatic Door Bottoms 36" and longer may be cut up to 4" in the field, under 36" should not be cut in the field, order net length
Clear anodized end caps furnished standard. DKB end caps available - please specify
Smoke and Draft Control-UL Classified Category H
UL 10B Classified on wood doors up to 45 min.
UL 10B Classified on metal doors up to 3 hr.
UL 10C Classified on wood doors up to 45 min.
UL 10C Classified on metal doors up to 3 hr.
Acoustical Tested
Air Infiltration Tested
ANSI/BHMA Certified
