Major MCE-X012

copy to clipboard

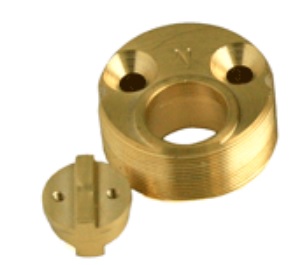

Major MCE-X012 1/2" Extend-a-Cylinder

enlarge

enlarge

× This image is for a similar product but it will differ in size, color and/or other attributes.

Major MCE-X012 1/2" Extend-a-Cylinder

Main Image

Video Review Major MCE-X012 1/2" Extend-a-Cylinder

More from Major Manufacturing

Price: $76.91 USD

Ships From

Volume Price Information

Buy 2 or more and pay $73.06 each (save 5.00%)

Buy 3 or more and pay $69.22 each (save 10.0%)

Buy 10 or more and pay $61.53 each (save 20.0%)

Comments (Optional)

In Stock (No Minimums):

Naples, FL Warehouse Qty: 6

For quantities beyond the "In Stock" above, the item(s) 2 - 3 business days.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Major MCE-X012 1/2" Extend-a-Cylinder

Extend-a-Cylinder
Extension kit used to add 1/2" length to an existing mortise cylinder
Choose a drive cam (not included) from the available models
To properly drill and tap the mortise cylinder for the extension, use the MCE-100 drill/tap guide
Extension kit includes mounting screws
Note: Any two extension kits may be ganged together to add extra length when needed. Longer mounting screws required
Packing & Sold as: Each.
Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.

Product Brochure

Installation Instructions

Custom made 3 inch mortise thumbturn

Kaba Ilco 7205SX1 26 converted into 2-1/4" length cylinder
for a Corbin Russwin ML2000 lock

Video Review of Major MCE-X012 1/2" Extend-a-Cylinder

Video Detail Page

Questions and Answers

Q: I need a custom length cylinder & thumbturn. The lock is centered on the door and the thickness of the door is 2 ¾ so you can find the right length of the cylinder. Do you have a formula to check the correct length of the turn knob and cylinder?

I have a 3-9/16" thick door with the lock centered in the door as seen here:

A: To determine the correct length of a mortise cylinder I use my formula:

Assuming the lock is centered in the door:

(DT-G+C1+C2)÷2

DT = Door Thickness

G = gap between to backside of the two cams

C1 = thickness of cylinder collar 1

C2 = thickness of cylinder collar 2

÷2 = assuming the lock is centered in the door

Example:

(3.5625-.25+.125+.125)/2 = 1.78125

Therefore you would be using 1-3/4" length cylinders (rounding for the 1/32")

(Required, used to email you once question is answered.)
