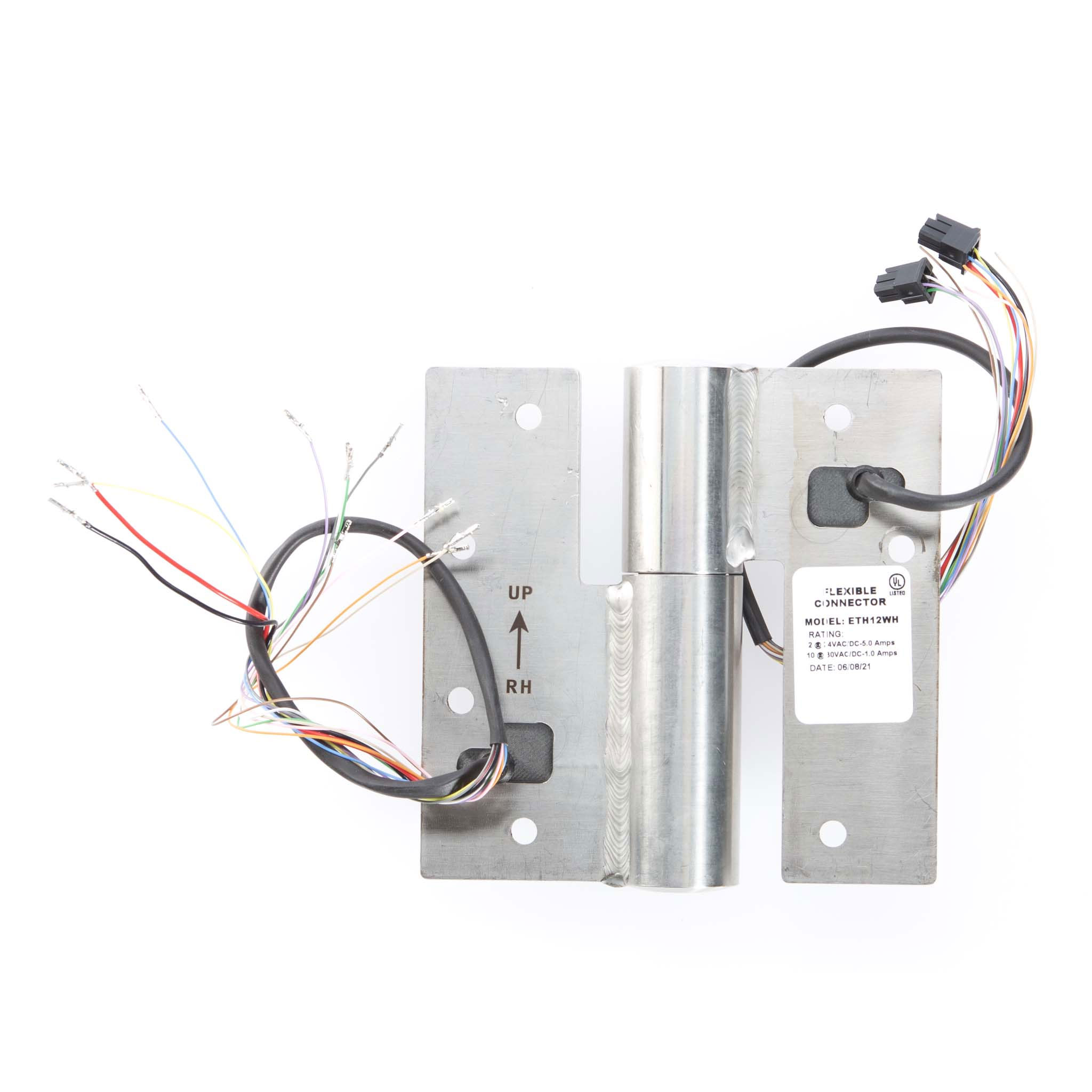

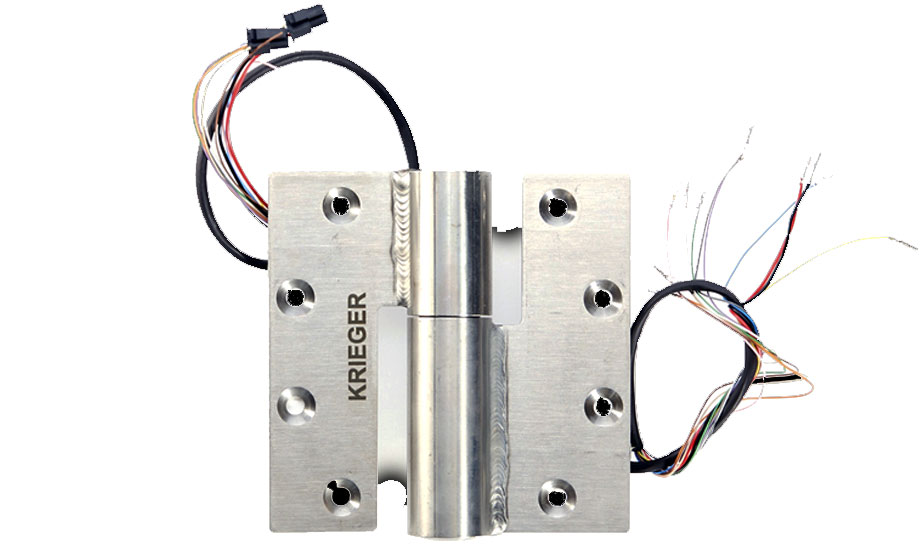

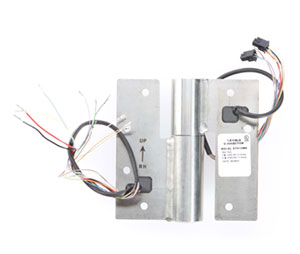

Krieger ELHC30 P LH

• Electrified Cam Lift Hinge
• Finish: Polished
• Handing: Left handed / Right Hand Reverese
• Right-hand hinges work with RH and LHR doors
• Cannot be used in combination with our older Cam Lift Hinge.
• Krieger’s electrified Cam Lift Hinges are used to power locksets, exit devices, and door monitoring switches.
• They work by passing low-voltage power and/or signaling from the door frame to the door.
• Unit of measure is piece. Price is for one piece.

Features:

• Easy, Time-Saving Maintenance
• A new fitting at the bottom of the Cam Lift Hinge makes it easy to keep lubricated—without having to remove the door from its hinges.
• Now one person can do in a matter of minutes what used to take two or more people hours. Keeping hinges properly lubricated and maintained improves performance and extends the life of the door.
• Security Pin Upgrade
• For applications that require pressure and forced entry resistance, our Cam Lift Hinges can be upgraded with a security pin. This feature works by preventing the door from opening in the event of an attempted forced entry, causing a time delay and adding an extra level of security.
• The security pin can also be used in place of a continuous hinge to maintain the blast rating for blast-resistant doors. Contact us for more information.
• Tight Acoustical Seal
• The Cam Lift Hinge enables the door bottom seal to be adjusted quickly and accurately at the time of installation and also for adjustment after many years of operation.
• Additionally, our Cam Lift Hinges accommodate for a 13mm total vertical rise to ensure that the door easily clears any floor coverings after it swings past the threshold. When closed, the Cam Lift Hinge lowers into place for a tight seal.
• 100% ADA Compliant
• Krieger’s lab testing of the Cam Lift Hinge shows it to be fully compliant with the Americans with Disabilities Act (ADA) requirements regarding the maximum force required to pull the door open—less than 5 pounds on door leaves under 500 pounds.
• The versatility of the Cam Lift Hinge means it can be used in any location, even for heavy doors.
• Designed for Radial Strength
• Our Cam Lift Hinges feature a proprietary design that reinforces the hinge from top to bottom without the use of a Teflon™ sleeve, which had been prone to wearing out.
• This solution allows the hinge to support heavy loading and, along with the stainless steel, offers superior strength and long-term durability.
• ASTM F476 Performance
• Krieger's Cam Lift Hinge meets the highest ASTM F476 requirements for swinging door assemblies.
• With a Grade 40 rating for hinge impact and pin tensile load resistance, the Cam Lift Hinge has proven performance for security applications.

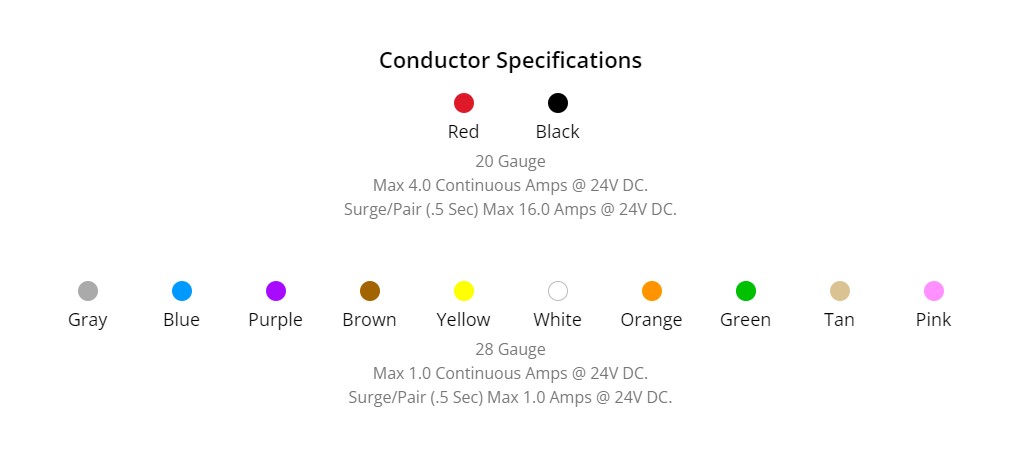

• Standard 12-Wire Configuration
• The electrified Cam Lift Hinge comes with standard 12-wire configuration, giving customers total flexibility in latching hardware options—at the time of ordering and in the future. Plus, it’s compatible with all commercially available devices from leading manufacturers.
• Factory-Prepped Wire Conductors
• Factory-prepped, quick-connecting Molex plugs and conductor pins ensure efficient installation of our electrified Cam Lift Hinges, adding value for installers and other project stakeholders.
• UL Standard 634 Certified
• Krieger’s electrified Cam Lift Hinge passed UL Standard’s robust industry testing for both security and reliability. It is a listed device per the UL 634: Standard for Connectors and Switches for Use with Burglar-Alarm Systems.
• Quality Tested Performance
• All electrical components of the electrified Cam Lift Hinge are quality control tested before they ship.
