JL Industries RHGI-RETRO-1-GH

copy to clipboard

JL Industries RHGI-RETRO-1-GH One Shock with Hardware

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
JL Industries RHGI-RETRO-1-GH One Shock with Hardware
Main ImageVideo Review JL Industries RHGI-RETRO Shock
More from JL Industries
Price: $263.90 USD
Ships From
Comments (Optional)
In Stock (No Minimums):
Naples, FL Warehouse Qty: 4
Standard - ships in 5 business days.

1-844-809-3667

Sales
Technical Support
Product Description:
JL Industries RHGI-RETRO-1-GH One Shock with Hardware

This product is for the RHG - GALVANIZED STEEL ROOF HATCHES - Image shows the RHGI-RETRO-2-GH

Certifications: ASTM certified under Specifications A792/A792M-06a; A653/A653M-06a; C726-05, and A36/A36M-05

Hardware: Hardware includes a heavy duty hinge, slam latch, heavy gauge automatic hold open arm with red grip, compression spring-operated cylinder, exterior handle with integral padlock hasp, and interior locking handle with interior padlock hasp.

Size: The net size of the spring in this Shock kit = 1 5/16" dia. x 16" length x 3/6" wire diameter with 3/16" spacing between coils.

Finish: Bonderite®, pre-treated grey hammertone powder coat.




Wide Throw Hinges

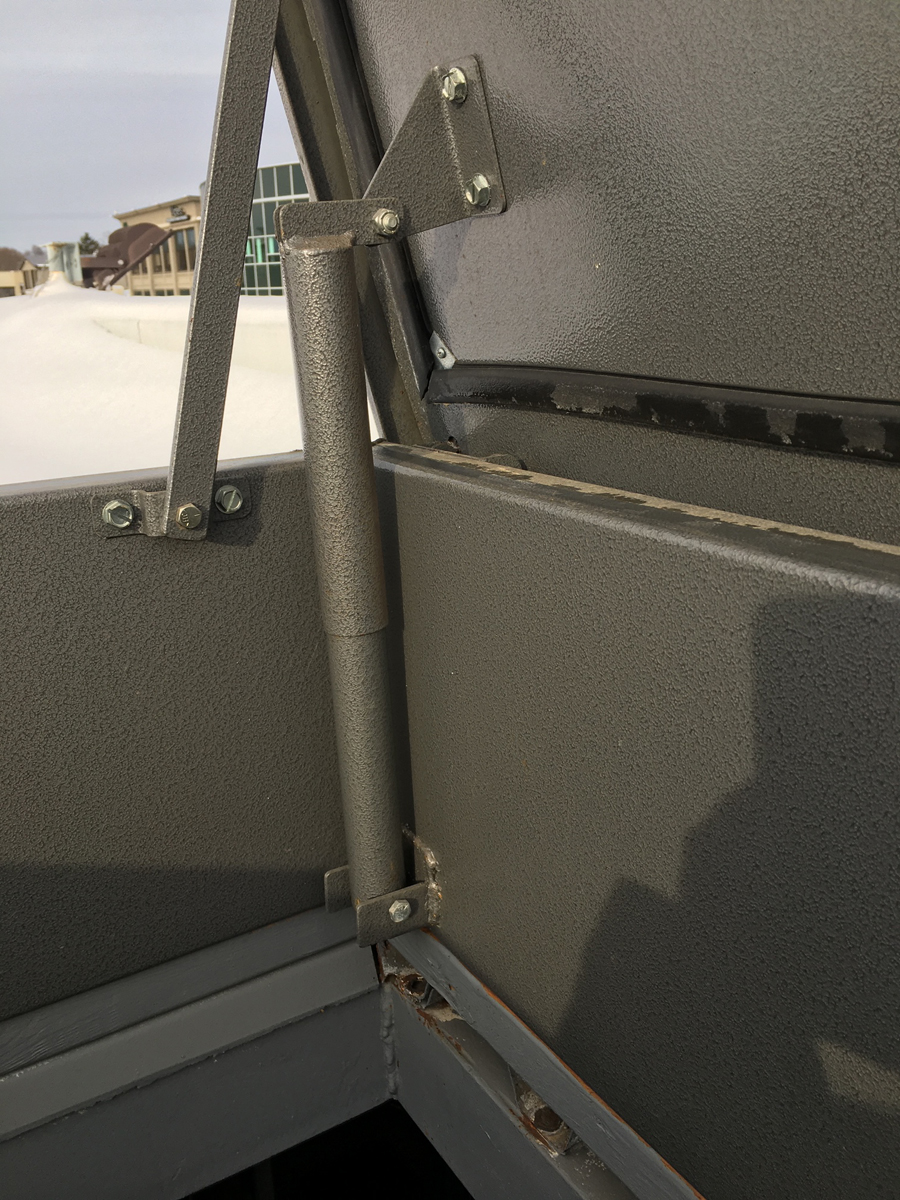

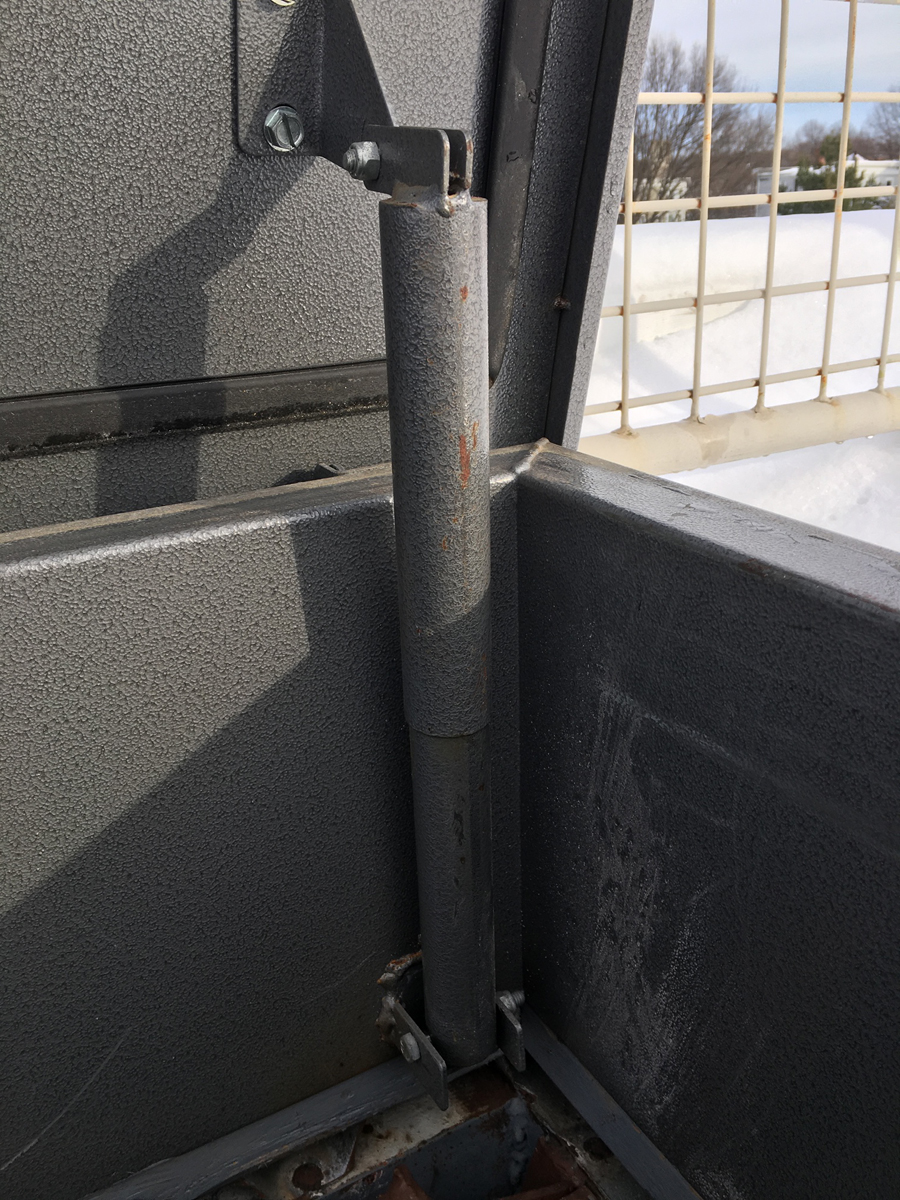

Customer Supplied Photos
One Shock with Hardware
(Click to Enlarge)
Questions and Answers

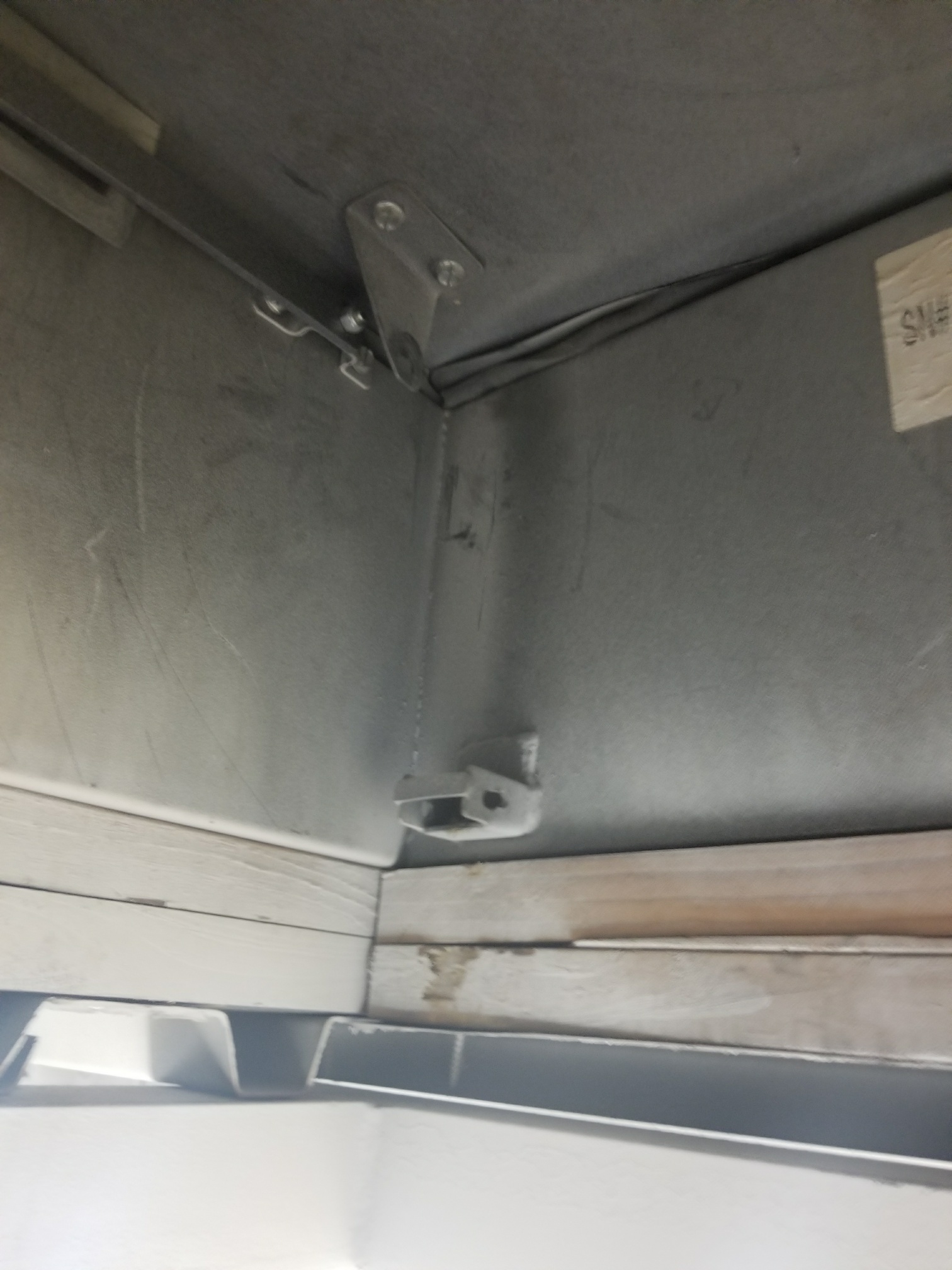

Q: I need to replace the lifting mechanism as seen in the attached to images

View Image

View Image

The serial number of that roof hatch is a JL 9528356850 Hope this helps? Ron

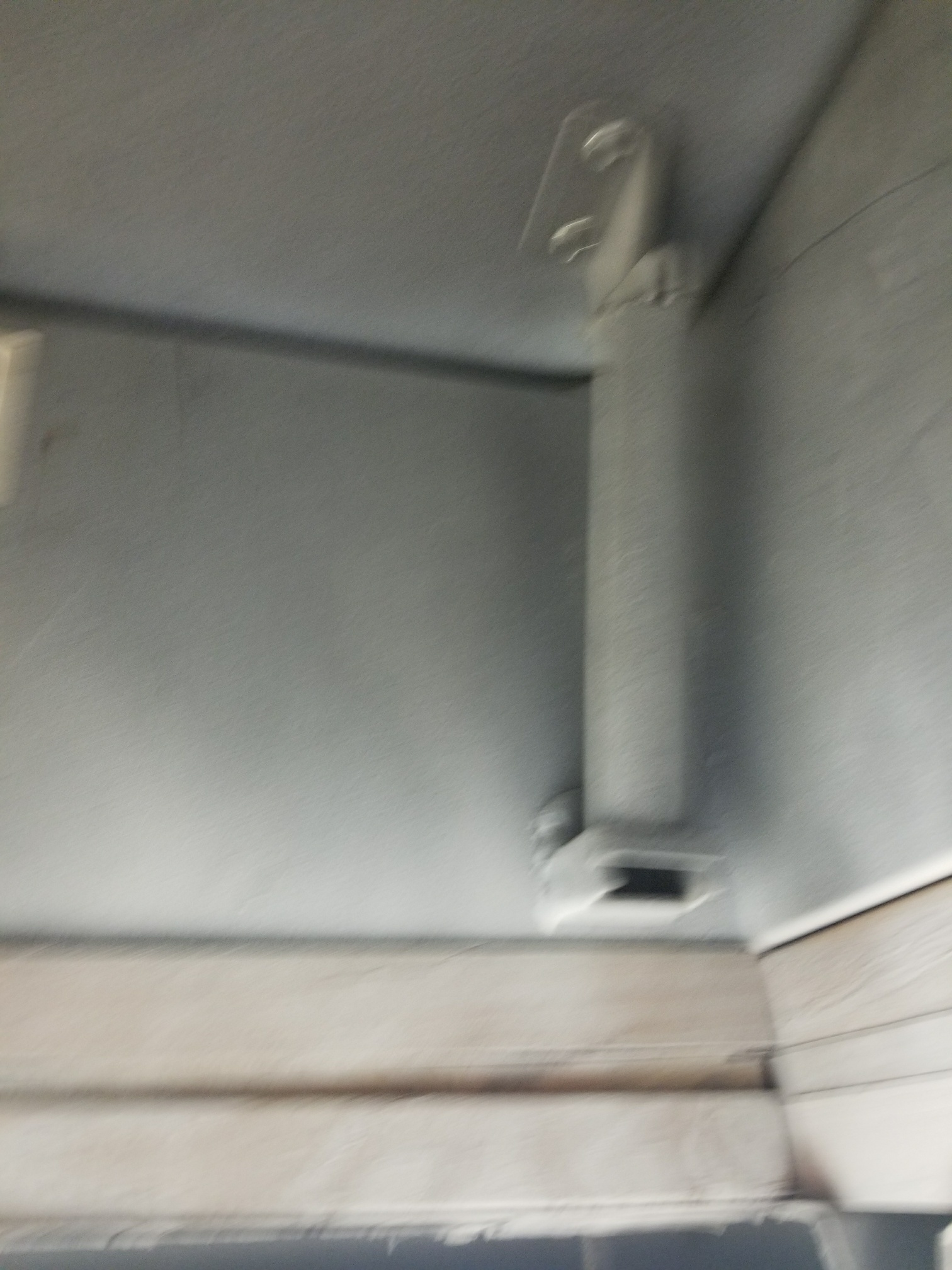

A: That second picture is a little blurry Ron but it looks like that bottom spring housing has a boot on it.

If that is the case, you would need retro kit JL Industries RHGIZ-A388 One Shock with Hardware, Old Style for installing new shocks on itas seen here:

Click Here

I would confirm with the site if possible that that bottom spring housing does have a boot or a lip on it to be 100% sure though since it isn’t the best photo. Let me know if you need anything else.

Q: It worked out great, thank you. Ron
A: Very glad to hear.

Is there a follow up question that we can perhaps attempt to answer? We take deep pride in our technical expertise (something Amazon can not provide) as we know it separates us from our competition, so don't hesitate to ask.

Please reply to this email or contact our sales department here:

Click Here

if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with. If this answer was helpful -

please consider following us on Twitter

Click Here

or liking our page on Facebook

Click Here

Thank you for your consideration.

Q: I wanted to take a moment and let you know that everything fit just great thank you. The new shock fit into the existing bottom boot welded to the sidewall and did not have to modify anything.
A: Thank you -

Is there a follow up question that we can perhaps attempt to answer? We take deep pride in our technical expertise (something Amazon can not provide) as we know it separates us from our competition, so don't hesitate to ask.

Please reply to this email or contact our sales department here:

Click Here

if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with. If this answer was helpful -

please consider following us on Twitter

Click Here

or liking our page on Facebook

Click Here

Thank you for your consideration.

Q: Please see attached photos:

View Image

View Image

I’m not sure the manufacturer, but these springs are failing. The bottom is riveted in and over time it pulls the bottom washer out and it fails. Do you offer replacements? Thanks, Russ

A: This is a steel hatch and is the Dur-Red 9" pressure intensifiers but we would need to know the size of the hatch, the inside curb dimensions, as the spring rate depends on this info.
