JL Industries RHG-2-STH

• The Model RHG Series with an integrated safety railing provides a complete solution in a single unit. JL roof hatches are weather-resistant, insulated and easy to operate
• Designed with corner brackets welded to the counterflashing for easy assembly and installation of the safety railing in the field
• Roof hatch with railing is sold as one unit

• Certifications: Rail meets OSHA-required compliance for safe egress and ingress through rooftop hatch openings while hatch is in use. Complies with OSHA CFR 29-1910.232 and CFS29-1910.27
• Construction: Rail is 1-5/8" OD A53 grade B seamed galvanized steel with zinc-plated post caps.Rail support brackets are welded to the curb. Posts are mechanically secured to the brackets.
• Hardware: Safety chain is zinc-plated 3/16" ASTM chain with quick links and hoops
• Finish: Durable Safety Yellow powder-coat finish

Hatch

• Opening Size: 54" x 30"
• Certifications: Model includes components or materials that are ASTM certified under Specifications A792/A792M-06a; A653/A653M-06a; C726-05; and A36/A36M-05
• Load/Deflection: Tested and approved to support a minimum live load of 40 lbs./ft.2 with a maximum deflection of 1/190th of the span, maximum negative load of 50 lbs./ft.2 wind uplift, and 110 mph wind load when cover is in an open position
• Insulation: The curb includes a 1" fiberboard insulation surrounding the base, and 1" fiberglass insulation between the exterior cover and liner

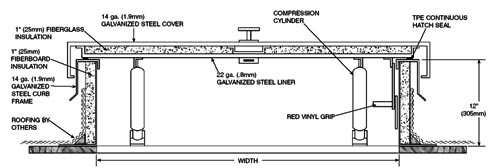

• Construction: 14 gauge galvanized steel with 12" high curb and 4" wide flange for securing to roof deck. The cover includes a 14 gauge galvanized steel exterior and 22 gauge liner with with a TPE draft seal gasket door seal
• Hardware: Heavy duty hinge, heavy gauge automatic hold open arm with red grip, compression-operated shock-absorbing cylinder, exterior handle with integral padlock hasp, and interior locking handle with interior padlock hasp
• Finish: RHG: Bonderite®, pre-treated grey hammertone powder coat.

Submittal

Cut Sheet
