Hager 47 DT LH ARC US32D 1-3/4"

Name: Hager 47 DT LH ARC US32D 1-3/4" Left Handed Dummy Trim with Archer Lever - Satin Stainless Steel
Brand: Hager
SKU: Hager 47 DT LH ARC US32D 1-3/4"
Price: 237.72 USD

Hager 47 DT LH ARC US32D 1-3/4" Left Handed Dummy Trim with Archer Lever - Satin Stainless Steel

× This image is for a similar product but it will differ in size, color and/or other attributes.

Hager 47 DT LH ARC US32D 1-3/4" Left Handed Dummy Trim with Archer Lever - Satin Stainless Steel

Price: $237.72 USD

Comments (Optional)

ADD TO CART

This item is not in stock and typically ships in 15 business days.

+ Add to My Wish List

1-844-809-3667

Sales

[email protected]

Technical Support

[email protected]

Product Description:

47 DT LH ARC US32D 1-3/4" Left Handed Dummy Trim with Archer Lever - Satin Stainless Steel

4700 Series Trim
Applications: ideal use for standard duty commercial applications
The 4700 Series is UL305 Panic Listed and UL and cUL listed for up to 3 hour rated fire doors for the Rim device and 1-1/2 hours for the Surface Vertical Rod device. The 4700 Series Rim device also meets the requirements of ANSI A250.13 to be listed as a Severe Windstorm Resistant Component.
Function: 02 - Pull when device is dogged down
Escutcheon: 2-5/8” x 8” (67 mm x 203 mm)

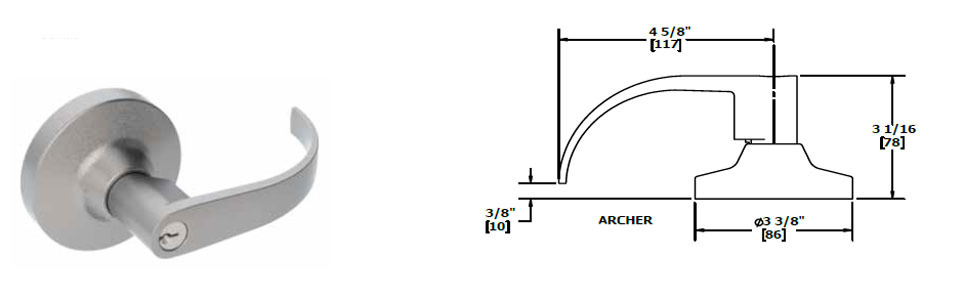

Lever Type: Archer
Also Available Levers:
- August
- Withnell
Projection: 2-7/8” (73 mm) for Archer; 2-7/8” (73 mm) for August; 2-3/4” (70 mm) for Withnell
4700 trim have steel bodies and zinc handles. The exception being US32D which is stainless
Handing: Left
Must specify handing when ordering!
For doors thicker than 1-3/4" or when used with a shim kit, specify total door thickness when ordering!
Case Quantity: 6
Finish: Satin Stainless Steel
Five-year warranty
