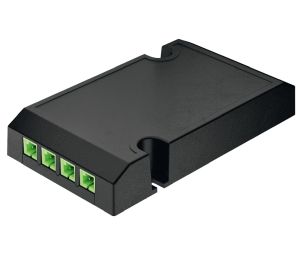

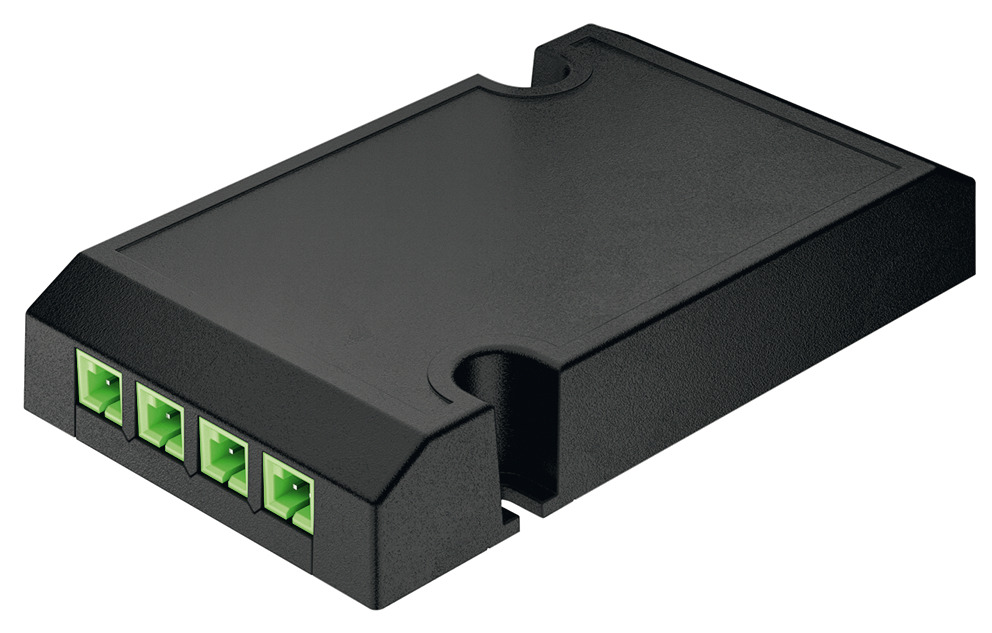

Hafele 850.00.016

• Radio Remote Control - Häfele Connect
• BLE box multi-white
• The BLE box (Bluetooth low energy technology - ideal protocol) makes it possible to control furniture lighting and electrically operated fittings using the Häfele Connect App

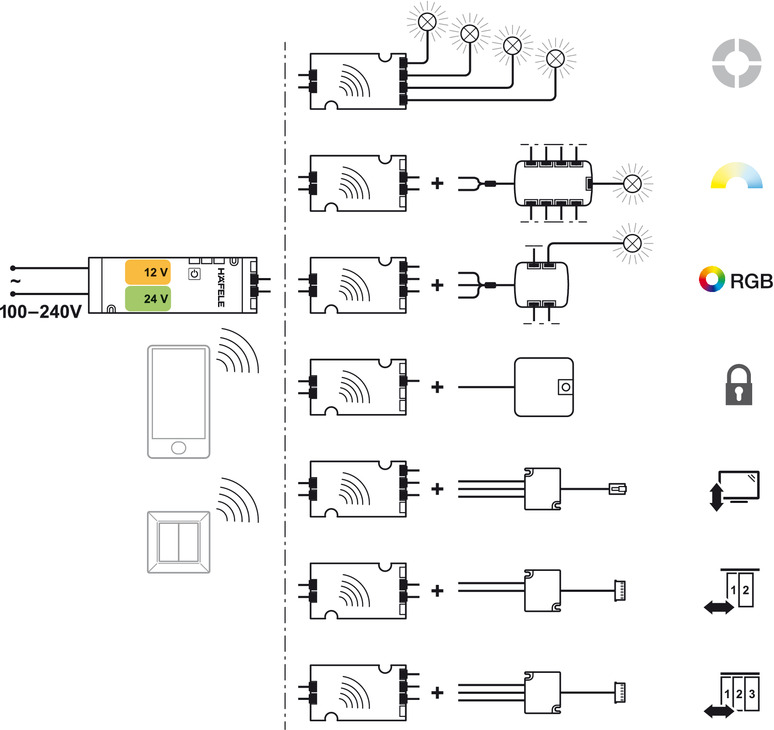

• A 12 V or 24 V driver supplies power to the BLE box via 2 leads
• A single BLE box or an entire network of BLE boxes is controlled with a Smartphone or tablet
• The App controls the on/off status, brightness (0-100%) and the color temperature (multi-white lights) and the light color (RGB lights)
• All parameters can be saved as scenes and retrieved at any times
• Time-controlled alteration of brightness, color temperature, light color
• The Häfele Connect App is free for Apple IOS® and Android™.
• The distance between the Smartphone or tablet to the nearest BLE box is 10 m. (32' 9-3/4").
• All BLE boxes are supplied in default white light mode. For multi-white and RGB lighting applications, it is required to change the operating mode through "Change profile" in the Hafele Connect app. Please refer to the Hafele Connect App user guide or Quick guide for instructions.
• Installation: Screw mount
• Application:
• For on/off switching and dimming of multi-white lights (0–100 %)
• For adjusting the light color
• Voltage: 24 V
• Wattage: max. 90 W
• Wattage per slot: max. 60 W
• Stand-by power consumption: 0.6 W
• Number of connections: 1
• Dimension (L x W x H): 100 x 57 x 17 mm
• Supplied with:
• 2 - 300 mm (11-13/16") leads
• Multi-white adapter
• Packing & Sold as: Each.
• Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.

Required products:

• Loox5 driver 24 V: 833.95.008, 833.95.010, 833.95.011
• Loox5 6-way distributor with switching function, 24 V: 833.77.833, 833.77.834
• Loox adapter for Loox5 driver, 24 V: 833.77.838

Optional accessories:

• BLE box, 4-channel: 850.00.005, 850.00.006
• BLE box multi-white: 850.00.015, 850.00.016
