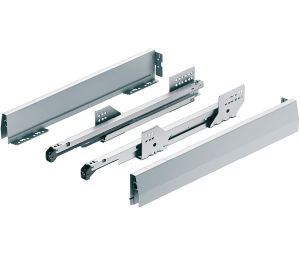

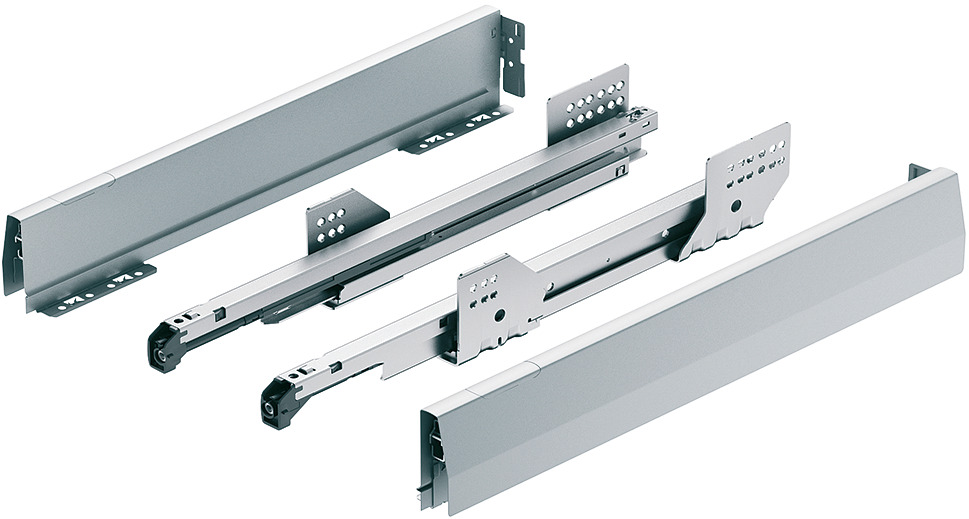

- Side Profiles
- Häfele Matrix Box P50
- Drawer Side Height: (3-5/8") 92 mm
- Length: 350 mm (13-3/4")
- Load Bearing Capacity: (110 Lbs) 50 kg
- 16 mm (5/8") material required for drawer bottom and back
- Profile height: 92 mm (3-5/8")
- Integrated Soft & Silent mechanism for a smooth and consistent close
- Synchronized roller provides even and gentle movement
- Quick and simple assembly and installation
- Tool-free drawer front assembly and removal
- Convenient adjustment location allows for quick and simple height and side adjustment from the top
- Full extension slides allow maximum access to drawer
- Profiles include pre-attached
- Material: Steel
- Color: White
- Finish:
- Drawer sides: Epoxy coated
- Cabinet rail: Galvanized
- Images may not represent actual product and finish.
- Supplied with: 1 left and 1 right drawer slide, 1 left and 1 right cabinet profile, 2 cover caps, Pre-attached back brackets
- Packing & Sold as: Set.
- Note: Unit of measure is Set. When you buy a quantity of 1 you will get one set. Price is for one set.
Optional accessories: - Drawer Front Fixing Brackets, Press-fit: 553.59.991, 553.59.995
- Panel for internal drawer box with or without railing (D): 553.61.811, 553.61.815, 553.61.819
- Front panel stabilising plate (I): 553.61.780
- Spacer, For Häfele Matrix Box P internal drawer and internal pull out: 553.62.700
- Cover Cap, Häfele Matrix Box P: 551.61.380, 551.61.381, 551.61.780, 551.61.781, 553.59.880
- Panel Fitting, Häfele Matrix Box P: 551.60.999, 553.60.699, 551.60.199
- Insertion Tool, Häfele Matrix Box P: 553.69.020
- Marking Gauge, Häfele Matrix Box P: 553.69.035
- Cylindrical head screw (for front fixing): 013.20.949, 013.20.930, 013.20.912, 013.20.743, 013.20.716, 012.20.949, 012.20.930, 012.20.912, 012.20.743, 012.20.716
- Gallery Rail, Round, Häfele Matrix Box P: 553.59.800, 553.59.801, 553.59.802, 553.59.803, 553.59.804, 553.59.805, 553.59.806, 553.59.807, 553.59.808, 553.59.608, 553.59.607, 553.59.606, 553.59.605, 553.59.604, 553.59.603, 553.59.602, 553.59.601, 553.59.600, 553.59.408, 553.59.407, 553.59.406, 553.59.405, 553.59.404, 553.59.403, 553.59.402, 553.59.401, 553.59.400
- Gallery Rail, Rectangular, Häfele Matrix Box P: 551.60.728, 551.60.727, 551.60.726, 551.60.725, 551.60.724, 551.60.723, 551.60.722, 551.60.721, 551.60.720, 551.60.328, 551.60.327, 551.60.326, 551.60.325, 551.60.324, 551.60.323, 551.60.322, 551.60.321, 551.60.320
- Cross Front Rail, Round, Häfele Matrix Box P: 553.59.434, 553.59.634, 553.59.834
- Cross Rail Holder, Round, Häfele Matrix Box P: 553.59.439, 553.59.839, 553.59.639
|
