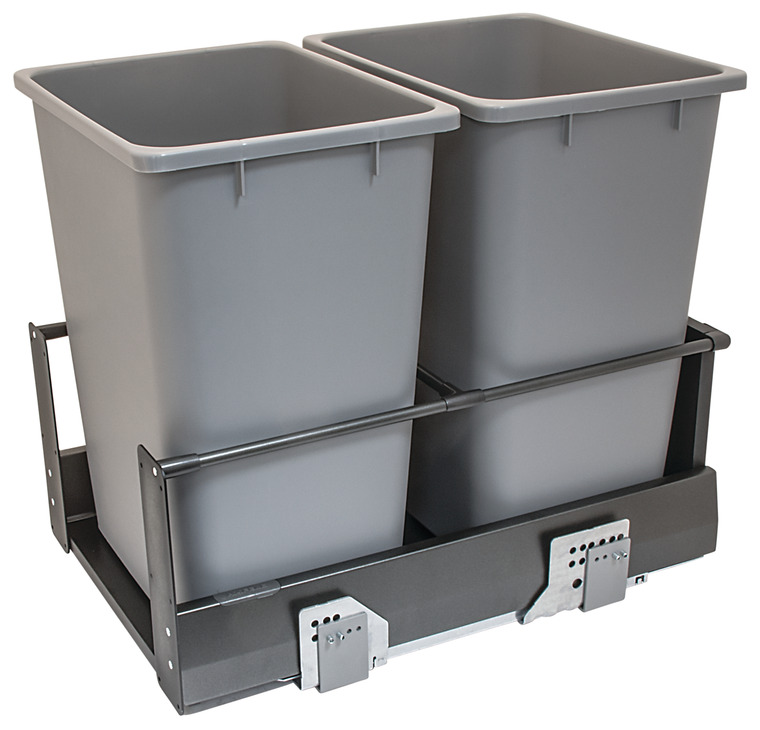

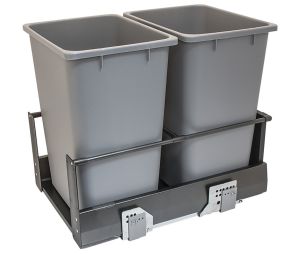

Hafele 503.15.224

• Waste Bin Pull-Out
• Double
• Häfele Matrix
• Capacity: 2 x 52 qt (2 x 49 liters)
• Load bearing capacity: (110 lbs) 50 kg
• Internal cabinet depth min. (21-13/16") 554 mm
• Features:
  • Soft & Silent
  • Minimum height of opening: 489 mm (19-1/4") for 36 qt and 610 mm (24") for 52 qt
• Minimum Opening Width:
  • 375 mm (14-3/4") Face Frame
  • 394 mm (15-1/2") Frameless
  • 413 mm (16-1/4") with door brackets reversed for Full Overlay 5 piece doors
• Mounting: Quick mounting, bottom bracket rests against back of face frame (3/4" from front edge)
• Add your door thickness for inset applications
• Application: Bottom mount unit designed for Face Frame or Frameless cabinet
• Unit comes pre-assembled with bins included
• Melamine Bottom and Back with Edgebanding
• Double wall steel frame system provides heavy duty structure and a stylish design
• Material:
  • Frame: Steel
  • Bottom & back: Melamine
  • Bin: Plastic
• Finish:
  • Frame: Anthracite
  • Bottom and back: Black
  • Bin: Gray
• Supplied with:
  • Mounting screws
  • Mounting instructions
• Packing & Sold as: Set.
• Note: Unit of measure is Set. When you buy a quantity of 1 you will get one set. Price is for one set.

Optional accessories:

• Replacement Waste Bin, for Kesseböhmer Wire and Wood Framed Waste Pull-Out Units: 503.88.724, 503.88.721, 503.88.524, 503.88.521, 503.88.124, 503.88.121
• Waste Bin Lids, for Replacement Waste Bins: 503.88.189, 503.88.589, 503.88.789
