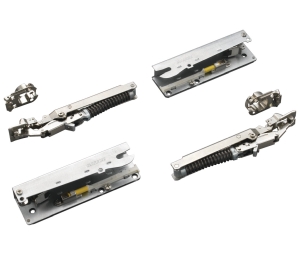

Hafele 372.96.011

Name: Hafele 372.96.011 Salice Wind Lift System, Push Open, D (Yellow/Free) Spring Close, 8-5/8 - 24" Door Height, Model FRAKFEPDSN9, Steel, Per Set
Brand: Hafele
SKU: Hafele 372.96.011
Price: 76.56 USD

Hafele 372.96.011 Salice Wind Lift System, Push Open, D (Yellow/Free) Spring Close, 8-5/8 - 24" Door Height, Model FRAKFEPDSN9, Steel, Per Set

× This image is for a similar product but it will differ in size, color and/or other attributes.

Hafele 372.96.011 Salice Wind Lift System, Push Open, D (Yellow/Free) Spring Close, 8-5/8 - 24" Door Height, Model FRAKFEPDSN9, Steel, Per Set

Price: $76.56 USD

Comments (Optional)

ADD TO CART

In Stock (Minimums Apply):

Charlotte, NC Warehouse Qty: 31

For quantities beyond the "In Stock" above, the item(s) ships in 15 business days.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Hafele 372.96.011 Salice Wind Lift System, Push Open, D (Yellow/Free) Spring Close, 8-5/8 - 24" Door Height, Model FRAKFEPDSN9, Steel, Per Set

Salice Wind Lift System
Version: Push open
Spring force: D (yellow/free)
Model: FRAKFEPDSN9

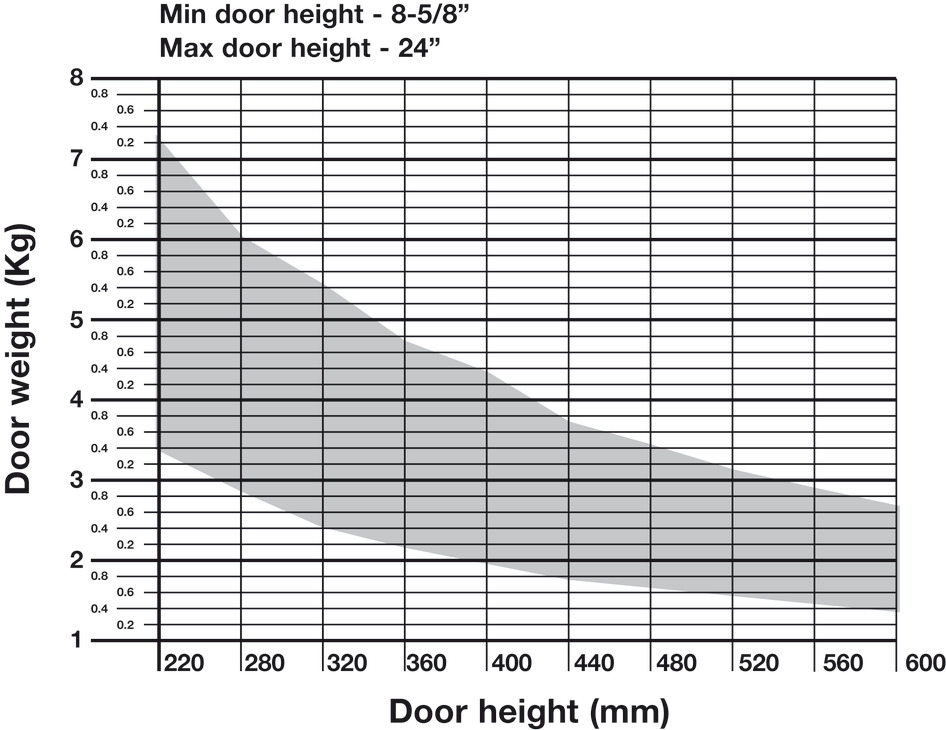

For cabinet height: 219 – 610 mm (8-5/8 - 24")
Height (inch): 14 1/2"
For lid height: 219 – 610 mm

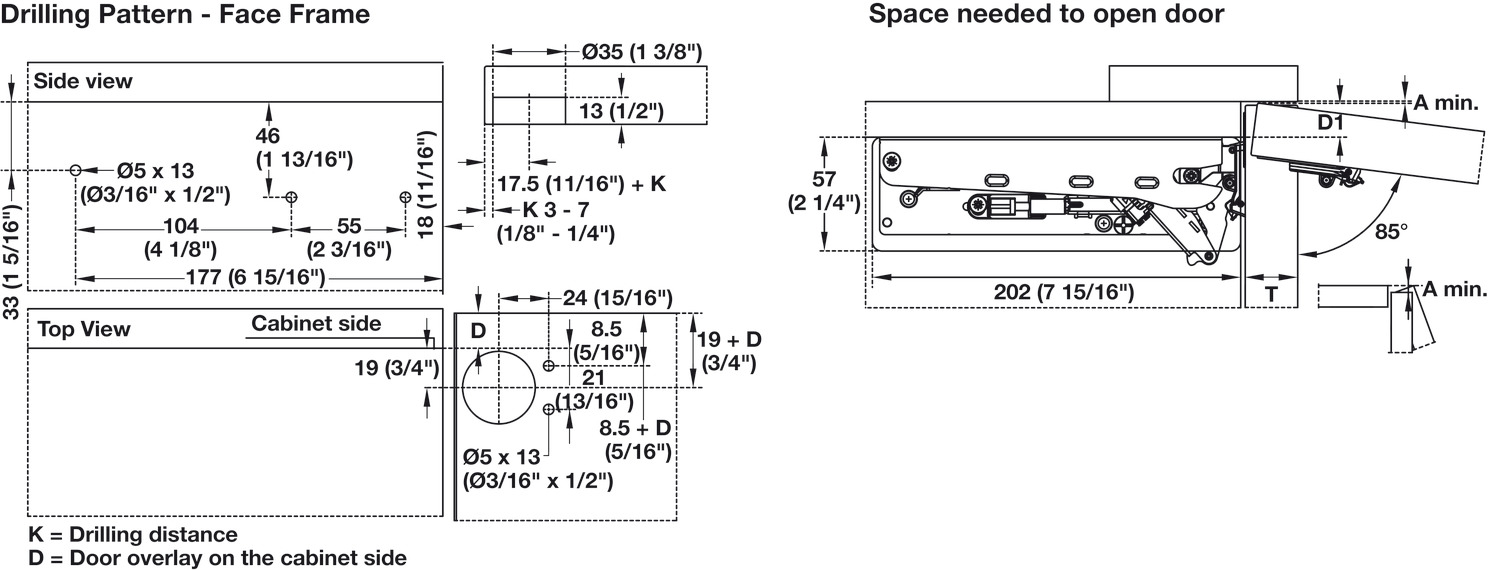

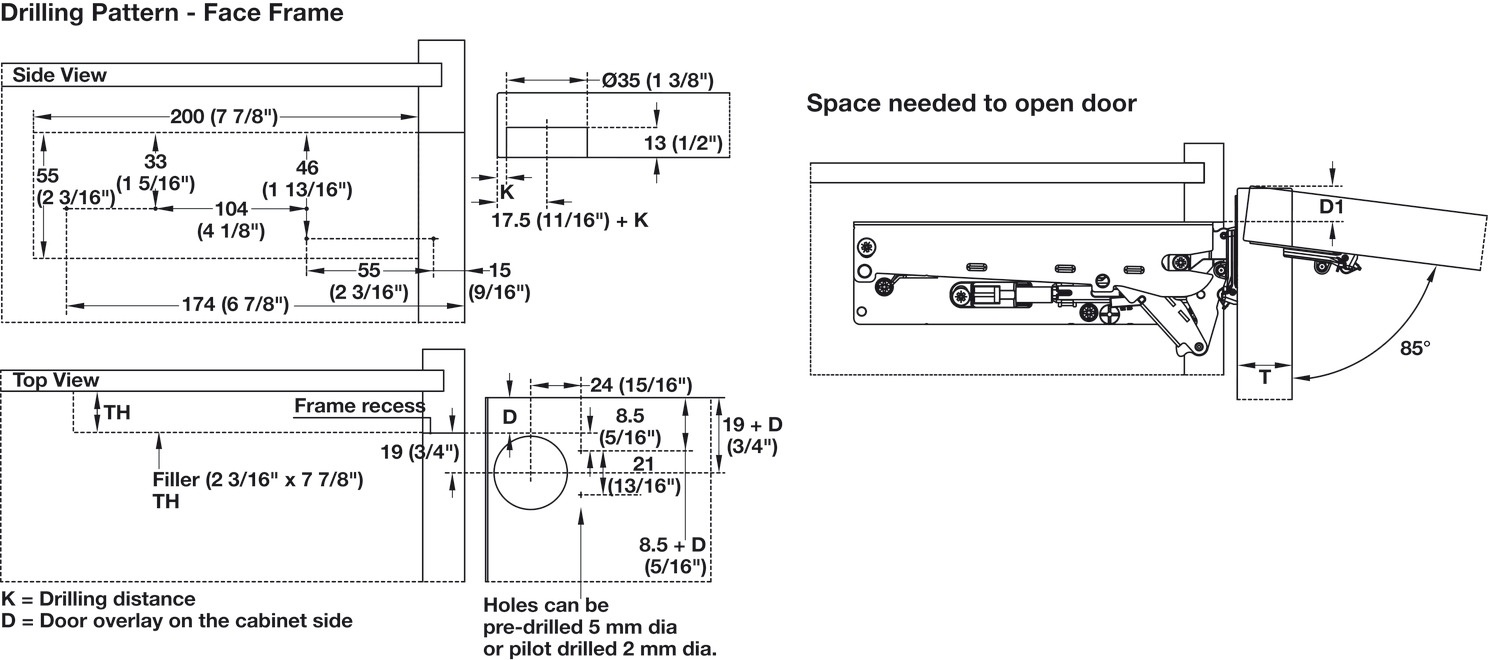

Dimensions:
- Inset doors are possible with 6 mm (1/4”) shim on the side with 28 mm (1 1/8”) max. door thickness 35 mm (1 3/8”)
- Drilling of the door – 13 mm (1/2”) deep
- Tab (K) distance: 3-7 mm
Material: Steel
Order reference:
- Order covers separately.
- Top mount brackets and covers available soon.

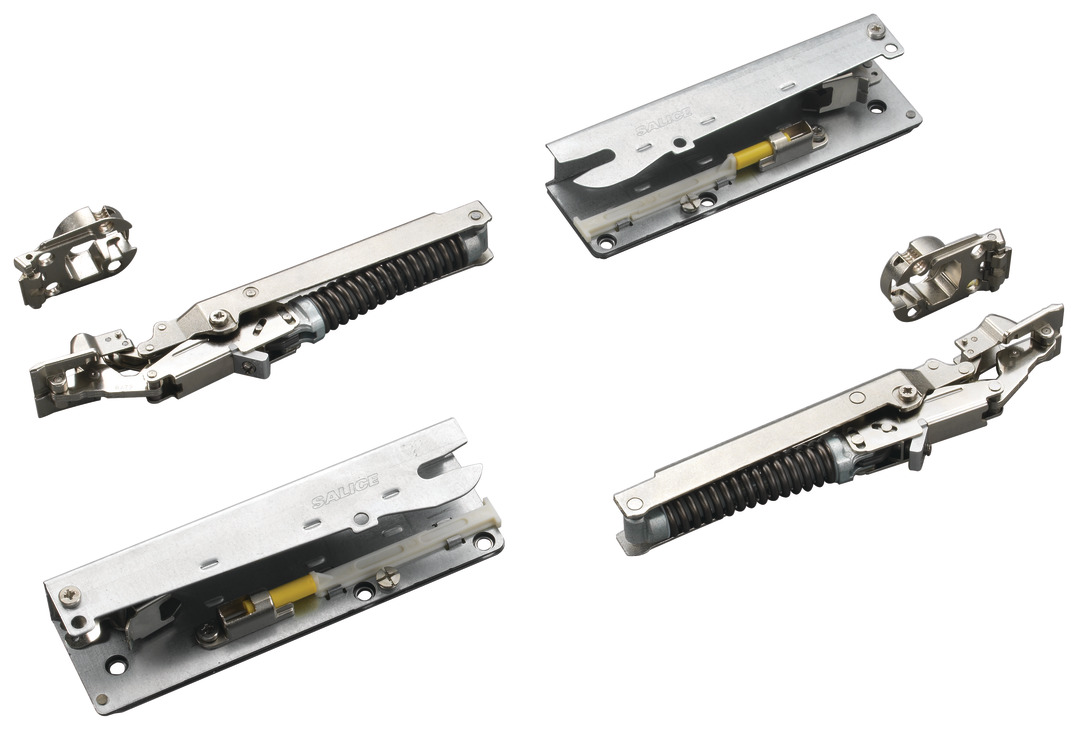

Supplied with:
- 2 Hinge cups
- 1 RH and 1 LH lift mechanism
- 1 RH and LH cabinet base
- 5 mm x 13 mm Euro screws (#7 x 5/8” wood screws can also be used)
- Mounting instructions
Notes:
- Compact and elegant design
- Adjustable spring strength
- Mounts at the top of a frameless cabinet - block out for face frame
- Optional top mounting bracket
- Angle restrictor clip of 85d is included
- 94d opening without restrictor clip
- Hardware and door easily installed with Salice snap-on technology
- 5 Independent adjustments all made with a pozi screwdriver: - Height - Side - Depth - Spring Tension - Soft Close
Packing & Sold as: Set
Note: Unit of measure is Set. When you buy a quantity of 1 you will get one set. Price is for one set.
