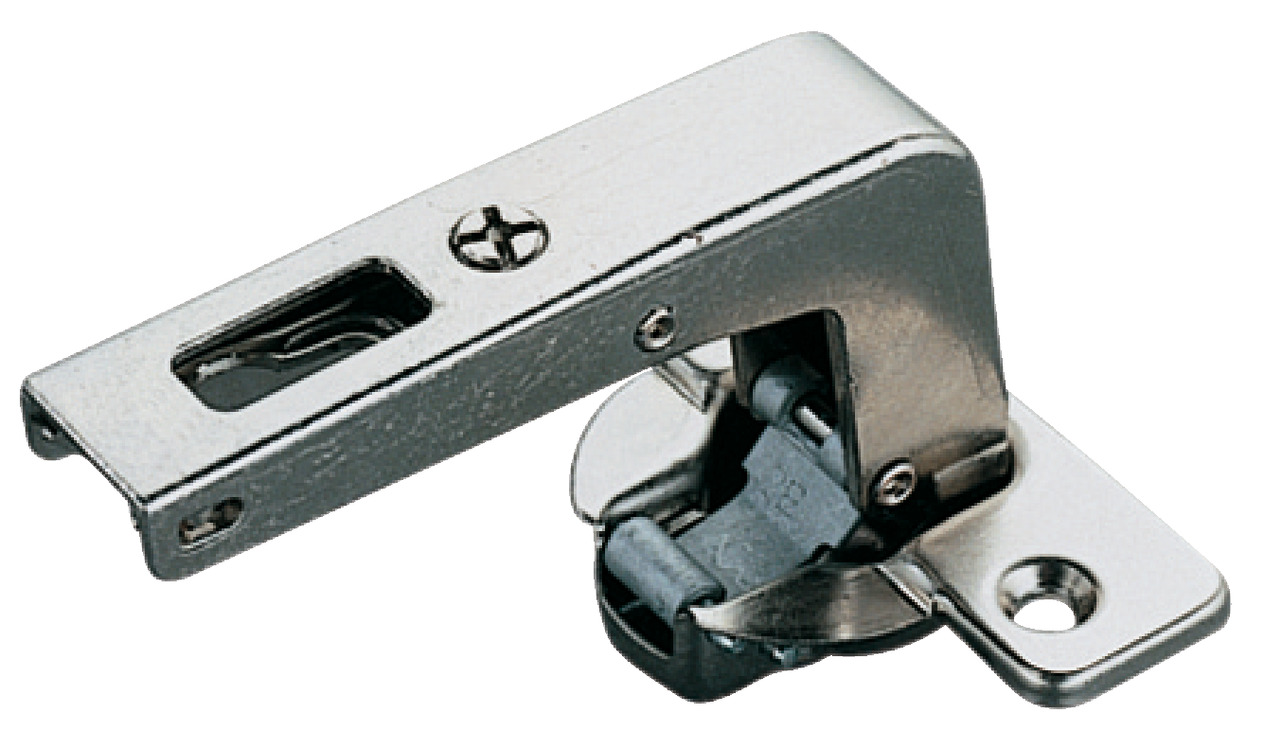

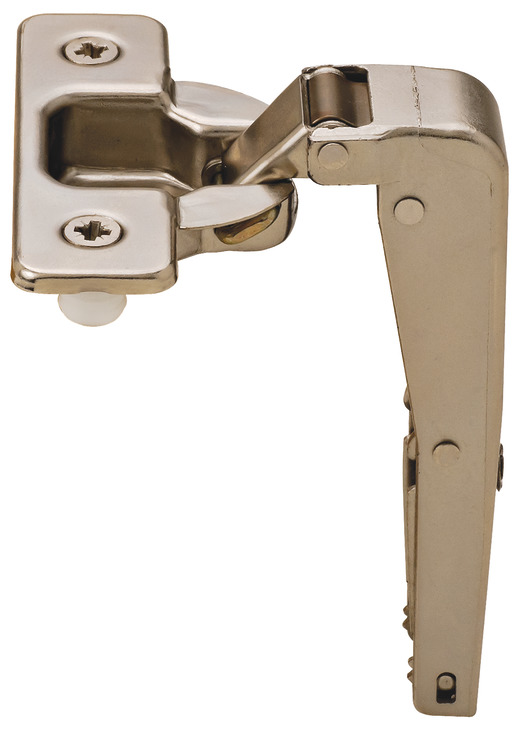

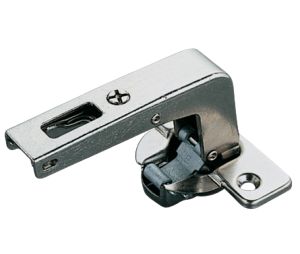

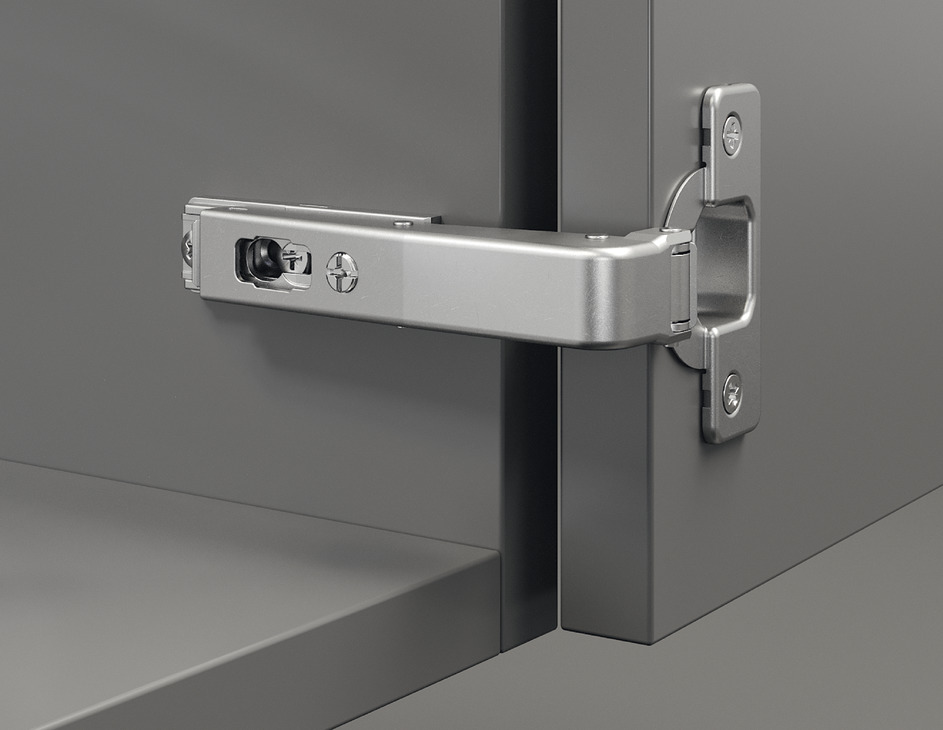

Hafele 329.35.510 Blind Corner Concealed Hinge, Salice, Model C2R6N99AM, 110° Opening Angle, for Screw Fixing, Self-Close, Press-fitting, Nickel-Plated
×
This image is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
5.32 USD
In Stock Ready for Shipment
Comments
(Optional)
ADD TO CART
In Stock (Minimums Apply
):
Charlotte, NC Warehouse Qty: 426
For quantities beyond the "In Stock" above, the item(s)
ships in 15 business days.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
You must order a total of $0.00 worth of product from Hafele to place an order.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-844-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
Hafele 329.35.510 Blind Corner Concealed Hinge, Salice, Model C2R6N99AM, 110° Opening Angle, for Screw Fixing, Self-Close, Press-fitting, Nickel-Plated
Blind Corner Concealed Hinge
Salice
Self-close
Press-fit
Model: C2R6N99AM
Model series: 200
Version: with soft closing mechanism

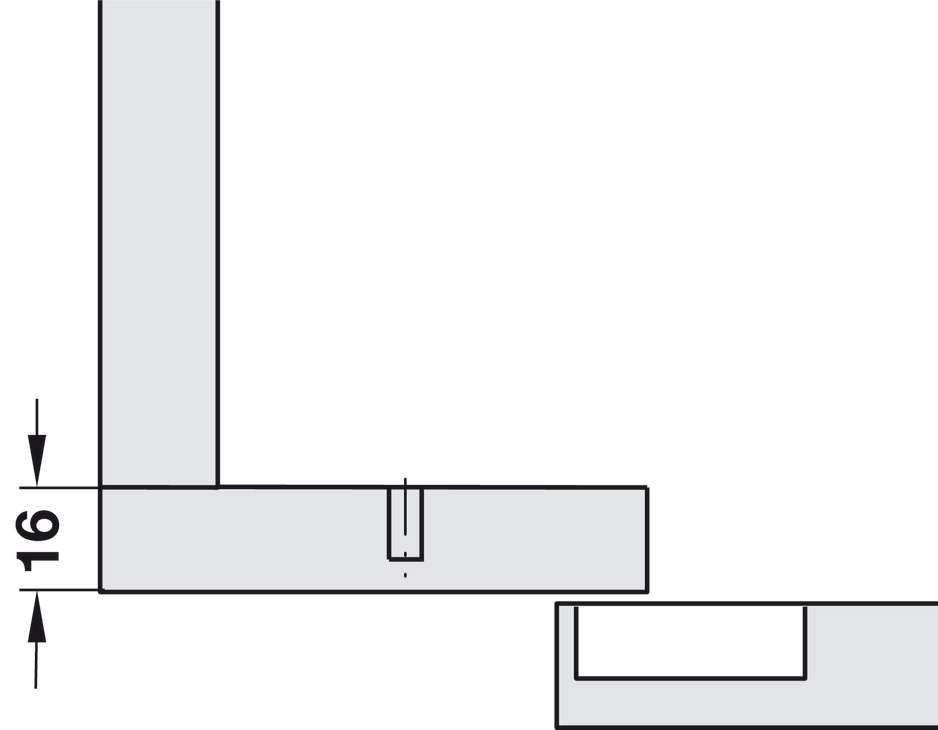

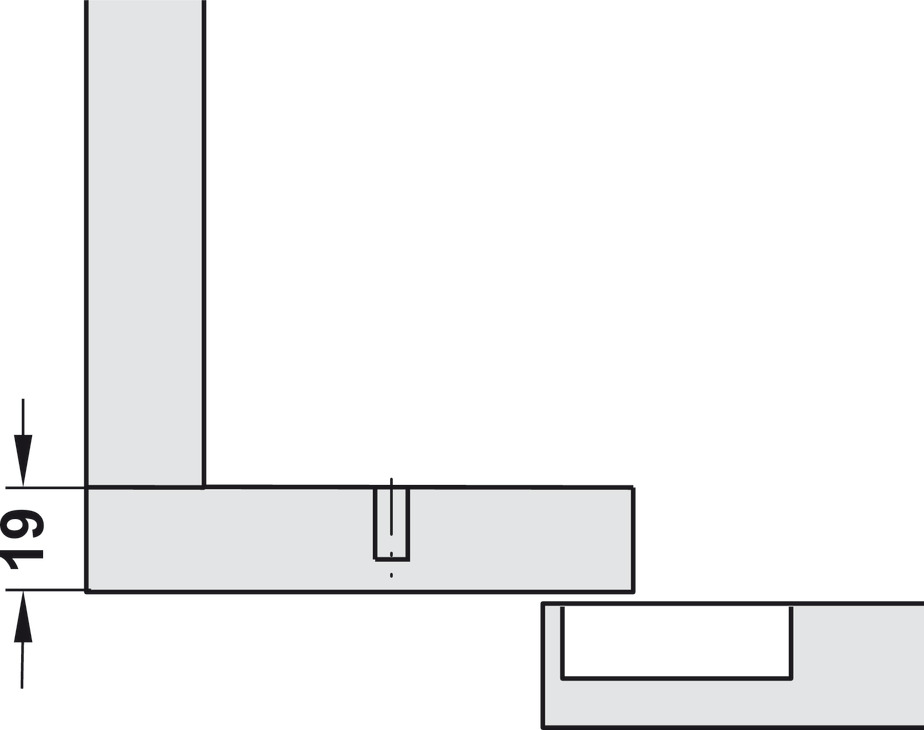

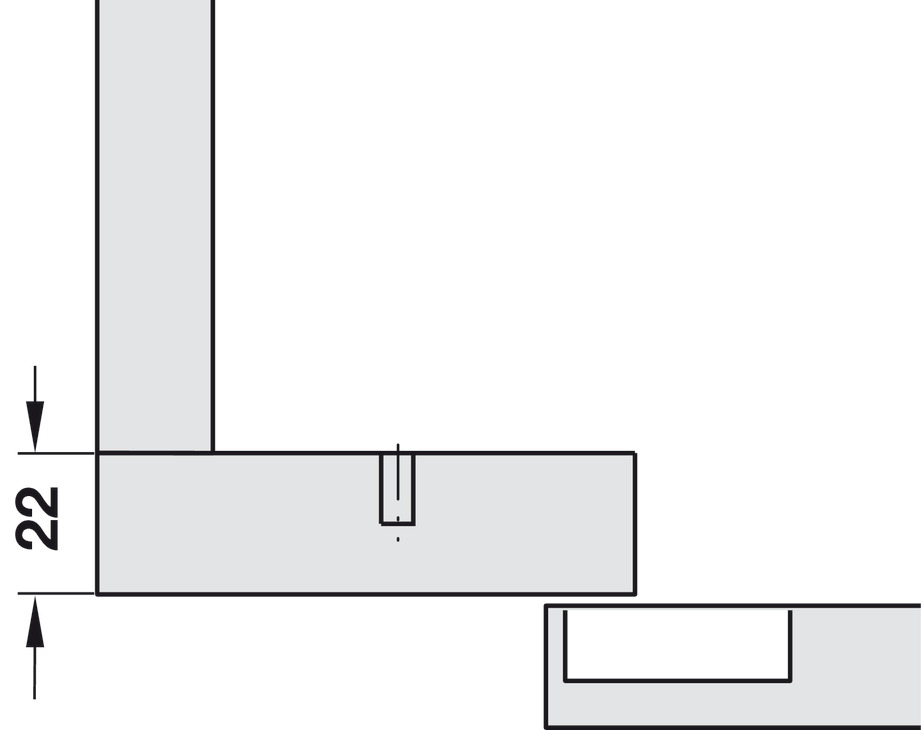

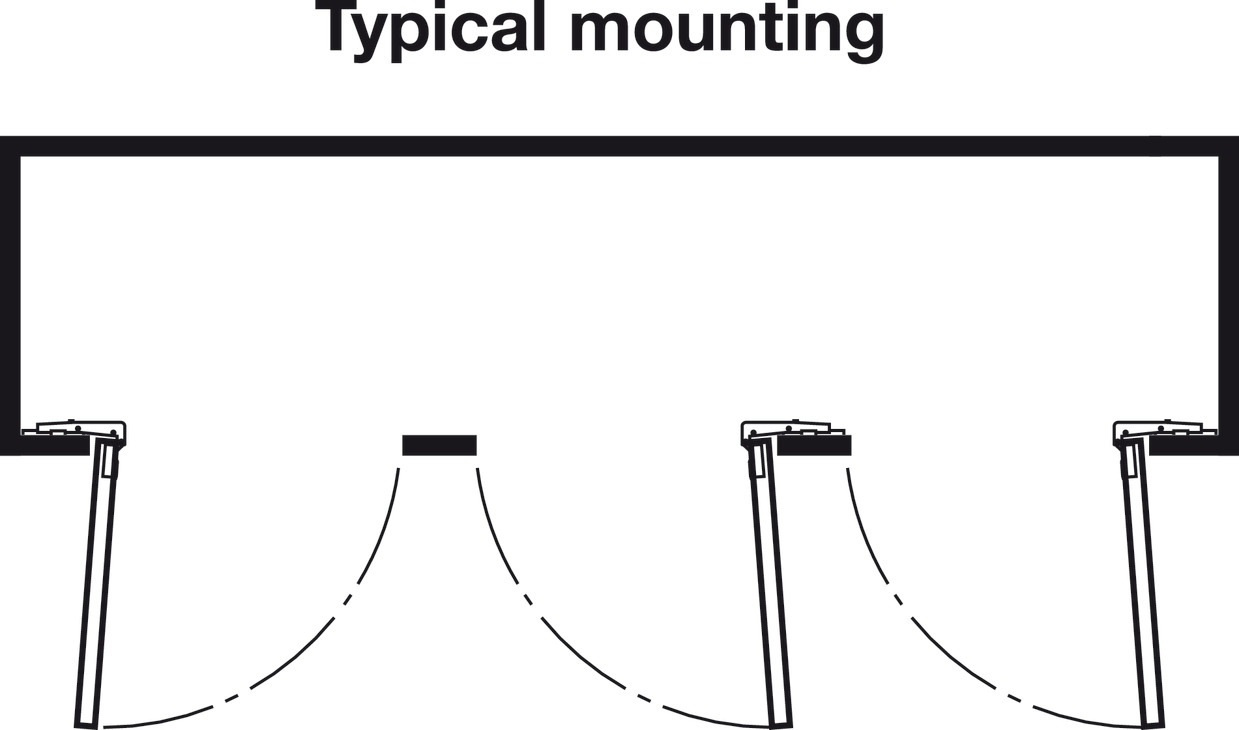

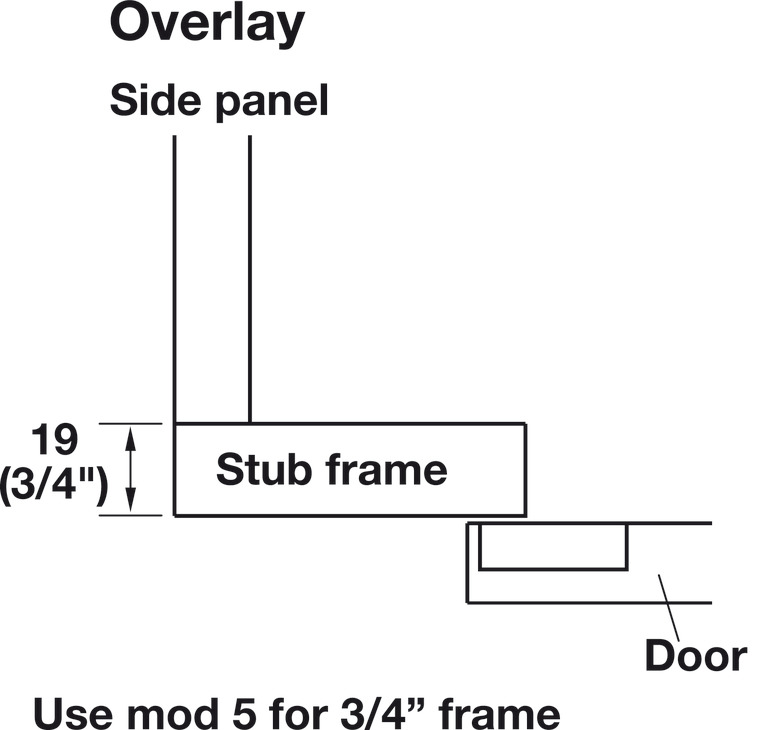

Suitable for: long blind corners
Cup fixing: for mounting in drilled hole
Mounting: mounting in drilled hole, screw fixing
Installation: door to cabinet for sliding on with Duomatic A mounting plates or with quick fixing system using Duomatic SM mounting plates
Adjustment facility:
Side adjustment facility: <4.5 mm
Height adjustment facility: ±2 mm
Depth adjustment with Duomatic A mounting plates +2.8 mm, with Duomatic SM mounting plates from -0.5 to +2.8 mm
Door processing for assembly: cup drilling
Concealed hinge version: blind corner application
Crank type: Straight
Opening angle: 110°
For wooden door thickness: 18 – 26 mm
For door thickness min.: 5/8"
Cup drilling depth: 11 mm
For door material: Wood
Material: Steel, Hinge Arm: Zinc Alloy
Finish: Nickel-Plated

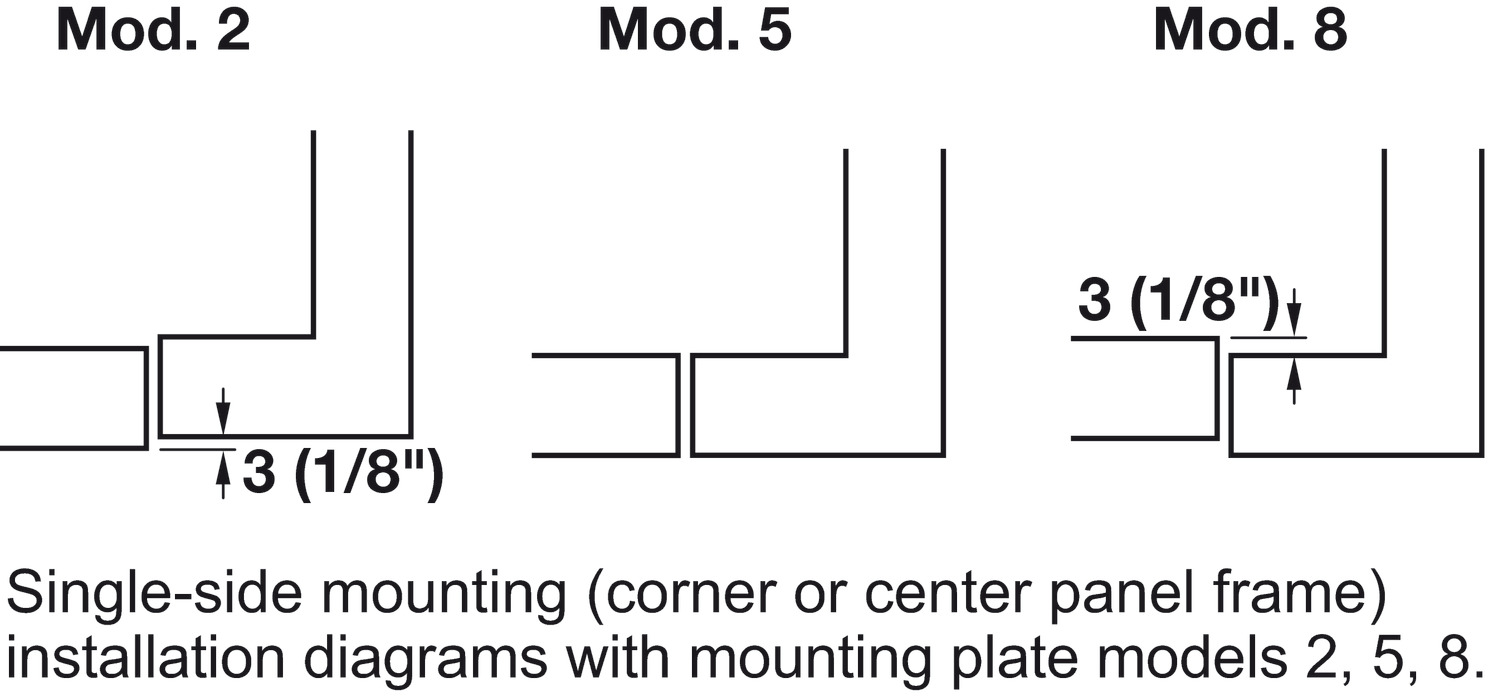

Suitable for all Duomatic A and Duomatic SM mounting plates
Packing & Sold as:
Each.
Note:
Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
