Hafele 267.91.251

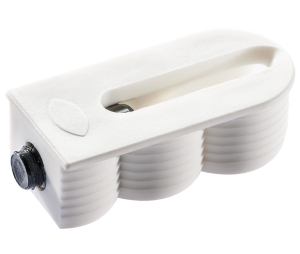

Name: Hafele 267.91.251 Cabinet Connector, Lamello Cabineo, 5/16" Routing Depth, Version Cabineo 8, White
Brand: Hafele
SKU: Hafele 267.91.251
Price: 0.86 USD

Hafele 267.91.251 Cabinet Connector, Lamello Cabineo, 5/16" Routing Depth, Version Cabineo 8, White

× This image is for a similar product but it will differ in size, color and/or other attributes.

Hafele 267.91.251 Cabinet Connector, Lamello Cabineo, 5/16" Routing Depth, Version Cabineo 8, White

Price: $0.86 USD

Comments (Optional)

ADD TO CART

In Stock (Minimums Apply):

Charlotte, NC Warehouse Qty: 2044

For quantities beyond the "In Stock" above, the item(s) ships in 15 business days.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Hafele 267.91.251 Cabinet Connector, Lamello Cabineo, 5/16" Routing Depth, Version Cabineo 8, White

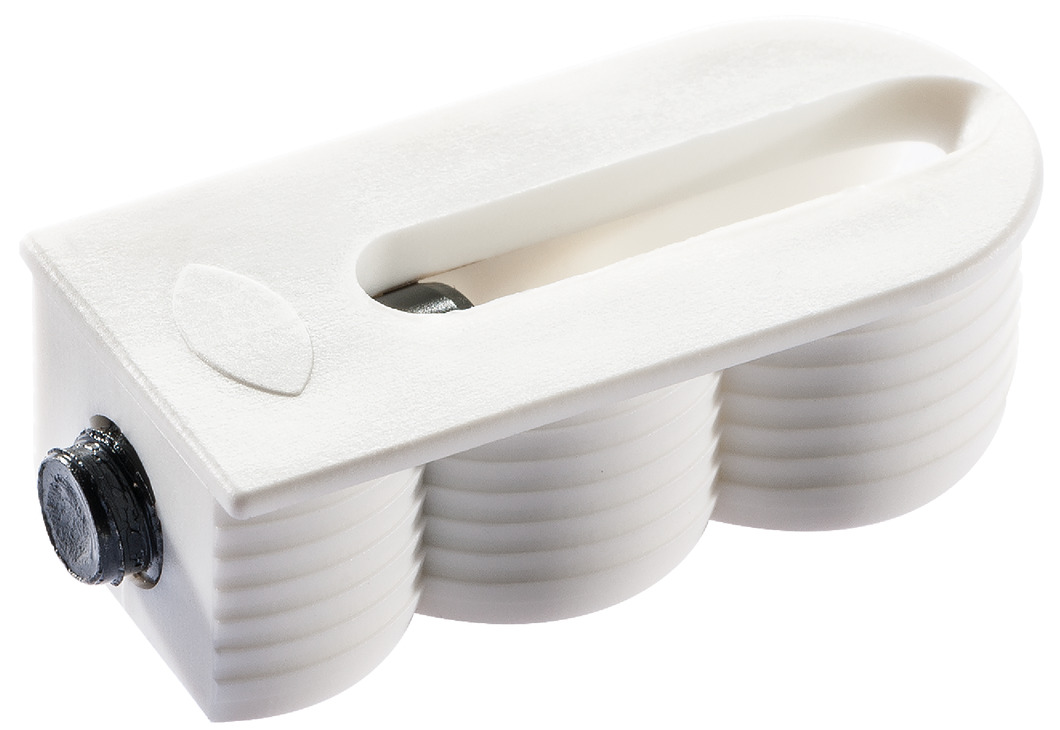

Cabinet Connector
Lamello Cabineo
Corner and center panel connections, for use with CNC, edge drillings not required
Pre-mounted for quick and easy installation; additional dowels and screws are not required
High clamping force ensures a solid, positive-fit connection
Separable
Easily transported: Flat pack delivery
For use with or without cover cap
Area of application:

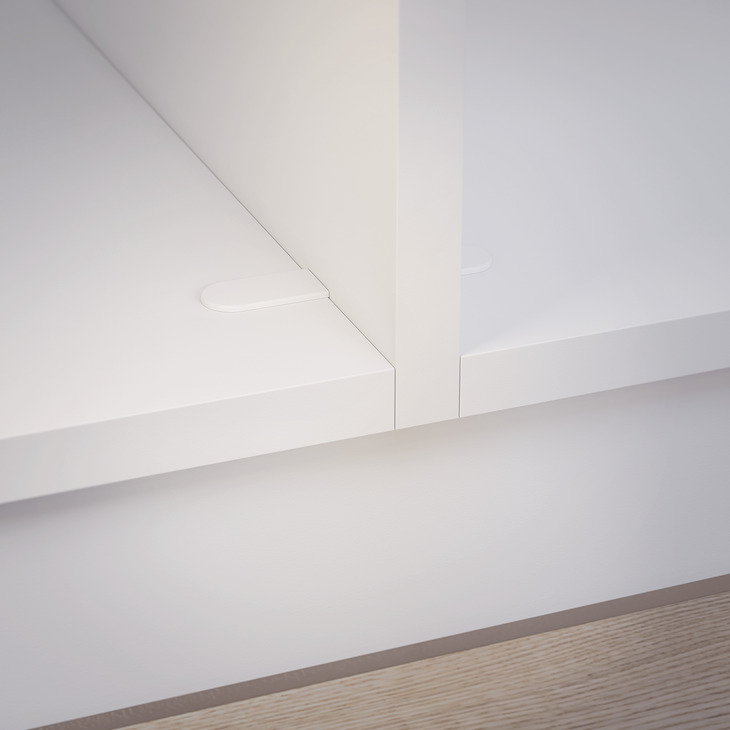

Connector for corner and center panel connections
For processing with CNC machines

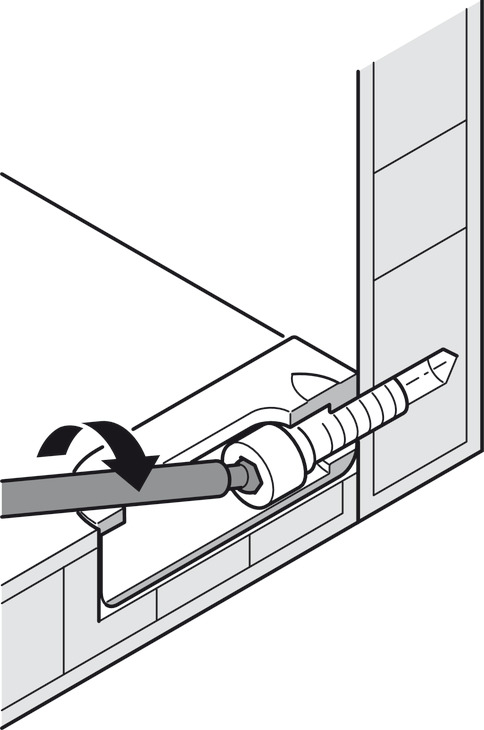

Installation: Press-fits into base panel and screw mounts into side panel with Ø5 mm drill hole

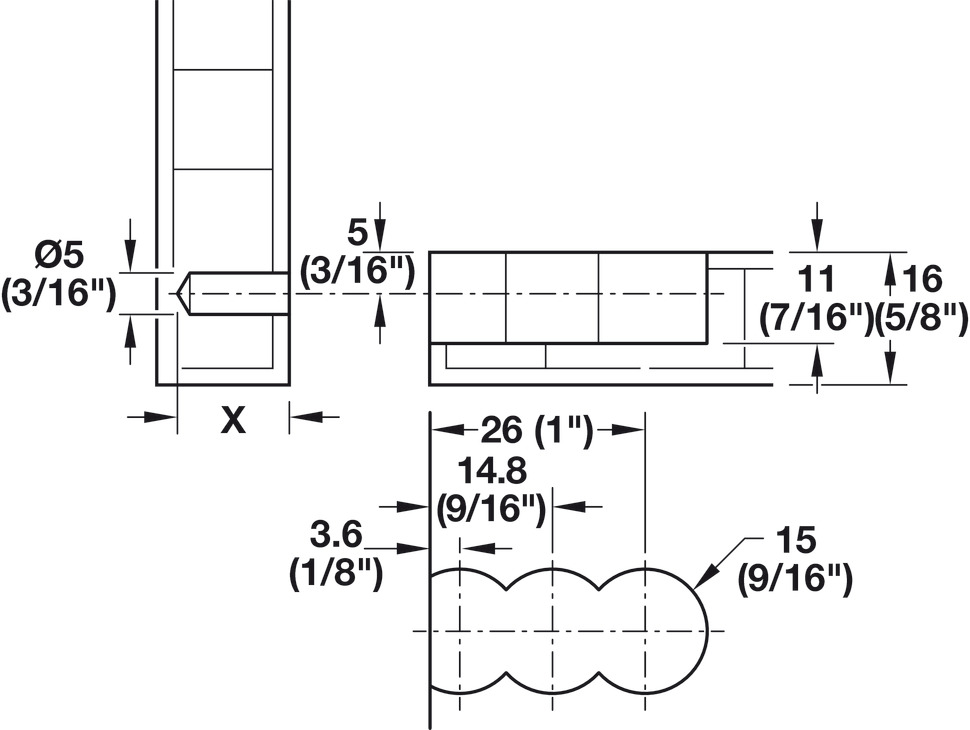

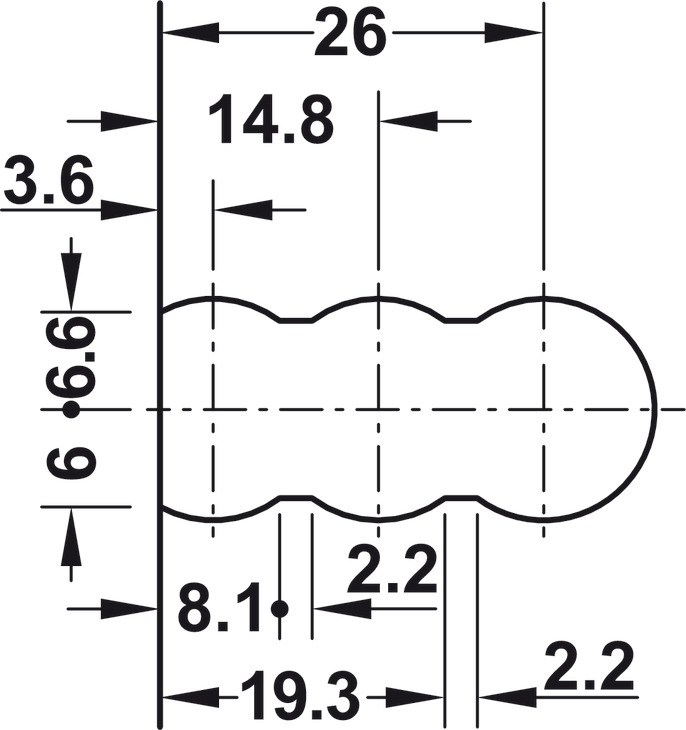

Routing depth: 11 mm
For wood thickness min.: 12 mm
Bolt length: 8 mm
Material:

Connector housing: Plastic, fiberglass reinforced
Screw: Steel

Finish: White
Note: Cabineo 8: With center panel installation, min. wood thickness is 16 mm.
Packing & Sold as: Each.
Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
