Falcon X-Series Cylindrical Lockset Keyed


Falcon XK

Falcon X-Series Cylindrical Lockset Keyed


Manufacturer: Falcon
Price: $271.35






  Order Options:


Comments (Optional)


  Qty:

  Add To Cart

Availability Information
Standard - ships in 1 business day.

Similar Product Video
This product review video is for a similar product but it will differ in size, color and/or other attribute. We still feel the video will be of value to you.
Email Friend
This item ships from OH.

400 Series Door Closer Availability: IN STOCK. Next day shipping.
Falcon Lock Philosophy
falcon logo
Falcon takes a proactive approach to addressing commercial facility needs.
Whether the application is government, military, retail, industrial, tenant or institutional, Falcon offers a full line of Grade 1 and 2 locksets with functions and key systems to fit your budget requirements.
With a broad set of retrofit products including locks, trim options and cylinders for other manufacturers keyways, Falcon can provide an economical solution for your locking system needs.
As part of the world-renowned IR Security & Safety Sector, Falcon benefits from the power of IR’s industry leadership, global distribution and multiple product lines that deliver integrated security solutions.
Falcon is represented and supported by the Security & Safety Consultant organization across the US and Canada.
Their capabilities include facility surveys, specification writing, value engineering, key system design. In conjunction with IR security Centers complete after the sale service and support is available
Other trim designs and finishes are avaible on special order. For more information call: 1-877-631-9411.
How to Order
For correct ordering, and to ensure no delays in shipment of your order, the following descriptive data must be listed in the sequence shown. Necessary information can be found in other parts of this catalog. The example below shows an order for 20 each X locksets in the 301 Privacy function, EG (Elite-Gala) trim design in a 626 (satin chrome) finish, with 2-3/4" backset latch, to accommodate doors 1-3/4" thick.
dorma Quantity: Indicate the quantity required.
dorma Catalog Number: Select catalog number.
dorma Trim Design: Indicate letter of knob design followed by letter of rose design.
dorma Example: EG=”E” for Elite knob followed by “G” for Gala rose.
dorma Finish: When the finish is the same for the outside and inside trim, it is shown once (626). For split finishes, the outside is designated first, then the inside (605 x 625).
dorma Latch: 2-3/4" backset standard. 2-3/8" backset available. UL Listed standard.
dorma Strike: 4-7/8" x 1-1/4" ANSI strike standard. Optional T or Full Lip strike available. See
dorma Cylinder Type: For 6-pin, add 6-pin. For 7-pin, add 7-pin.
dorma Keying Detail: We suggest using the standard terms developed by A.H.C. (Architectural Hardware Consultants). EXAMPLE: AA1–Grand Master keyed, Master keyed, change key 1.
dorma Interchangeable Core: To order product capable of accepting an interchangeable core, add “FIC” (for interchangeable core). To order product with an interchangeable core, add “WIC”
(with interchangeable core). Specify 6-pin or 7-pin and keyway required.
dorma Keyway: “G” G” is standard on regular cylinders, “A” is standard on interchangeable cores. Other keyways available.
dorma Additional Keys: Note the total number of keys required.
dorma Large Bow Keys: Add– “with large bow keys.”
Catalog Number Function Description
X511
passage
Entry/Office Lock
Turn/push button locking. Pushing and turning button locks outside knob requiring use of key until button is manually unlocked. Push button locking. Pushing button locks outside knob until 1unlocked by key or by turning inside knob.
X561
classroom
Classroom Lock
Deadlocking latch bolt by knobs. Outside knob is locked by key in outside knob. Inside knob is always free.
X571 IC
dormitory
Dormitory Lock
Deadlocking latch bolt by knobs except when locked by push button in inside knob. Key in outside knob locks or unlocks outside knob and releases button. Closing door
releases push button. Inside knob always free.
X581
privacy
Storeroom Lock
Deadlocking latch bolt by inside knob or key outside. Outside knob rigid.
Trim design
falcon
falcon

dane drawing

hana_gala
hana gala
hanna york
hana york
hana york
troy york
troy york
troy york sheme
elite york
elite york
elite york
falcon
falcon
quantum drawung
Finishes
The latest in modern techniques and equipment are used to apply the highest quality finish. Extra steps assure durable, consistent finishes and long useful life. Although we apply the finest available protective plating and/or enamel coating to the surface of our products, these finishes have limitations and in time may deteriorate either from exposure to weather, pollution, perspiration, extremes of climate, frequency of use or other factors. Deterioration of these finishes is, therefore, not a defect, but a normal process which is unavoidable. Our company cannot accept responsibility for finish deterioration in these circumstances; therefore, the finishes cannot be guaranteed. These products will not be refinished or replaced under our warranty should deterioration of finishes occur.
Description ANSI No. Available on
Bright Brass
605
avaiable on special order
Satin Brass
606
avaiable on special order
Satin Bronze
612
avaiable on special order
Satin Bronze Oil Rubbed
613
avaiable on special order
Bright Chrome 625 avaiable on special order
Satin Chrome
626
Troy-Gala, Hana-Gala
Satin Stainless Steel
630
Avaiable only in Interchangeable Cores
Falcon M Series Non Keyed Lever
Full T-Series Falcon catalog
catalog
Door thickness: 1-3/8" to 1-7/8" doors. Locks for thicker doors also available. Consult factory.
Backset: 2-3/4" standard. 2-3/8" also available.
Mechanism: Parts constructed of brass or cold formed steel, zinc plated and dichromated for rust resistance. Springs are stainless steel. X Series available with all internal parts of stainless steel or other nonferrous materials.
Attachment: Locks secured to door by threaded collars. Inner collar tightened by special wrench furnished with each lock. Outer rose contains locking plate to prevent unauthorized removal.
Handing: Specify hand of door when ordering. Field reversible.
Cylinders: Drilled with 6-pin chambers, pinned in 5. Pinning in 6 chambers available when specified, at no cost. 7-pin cylinders available in Hana design. Cylinder assemblies removable to rekey or change hand of lock. Also available with 6 or 7-pin interchangeable core cylinders–Elite and Troy designs. Cylinder housings and plugs machined from solid brass. Springs are phosphor bronze. Two nickel silver keys furnished standard.
Keyways: “G” keyway standard on standard cylinders. “A” keyway standard on I/C core cylinders. Also available with some optional keyways.
Trim: Roses are heavy wrought brass, bronze or stainless steel, installed over wrought steel reinforcing plates. Knobs are brass, bronze or stainless steel secured by a steel knob retainer which cannot be depressed when lock has been locked.
Latches: 9/16" bolt projection, UL Listed. Standard latch faceplates 2-1/4" x 1-1/8" with square corners to accommodate beveled or flat front doors. 3/4" projection, UL Listed latch with 2-3/4" backset also available.
Strikes: 4-7/8" x 1-1/4" ANSI strike with curved lip to meet ANSI A115.2 standard door frame preparation standard. Consult Options and Accessories section for other strike sizes and configurations.
Screws: Furnished with combination wood/machine screws for use in wood or metal doors and frames.
ANSI/BHMA: Meets ANSI/BHMA A156.2, Series 4000, Grade 1.
UL: 3 hour A label.
Falcon lock
Falcon Mortise Lock Specifications
bullet

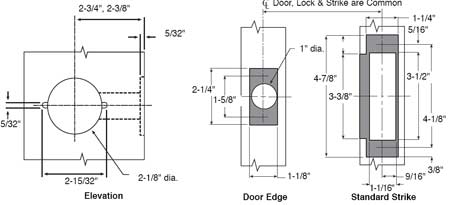

All locksets and latchsets shall meet Grade 1 requirements of ANSI/BHMA 156.2, Series 4000. drawing
bullet
Locksets and latchsets shall be UL Listed for use on 3 hour
A Label doors.
bullet
Locksets and latchsets shall have 3-1/4" diameter round roses.
bullet
Knobs shall be .050" minimum thickness.
bullet
There shall be no exposed screws on trim.
bullet
Locksets and latchsets shall have threaded collars for easy
door thickness adjustment on both sides of lock.
bullet
Cylinders shall have a minimum of 6 active pin chambers and shall be furnished with 2 nickel silver keys.
bullet
Locksets shall have 6-pin (or 7-pin) interchangeable cores.
Hand Selector
dormahanding
T SERIES DESCRIPTION
1-1/8" Faceplate
1-1/8" Faceplate w/ 9/16" Radius Latch
1-1/8" Faceplate w/ 3/4" Throw Latch

Dummy Trim
Single & Double
Special Small Faceplate Latches
1" Faceplate
1" Faceplate w/ 1/4" Radius
Strikes
Furnished with a 4-7/8" ANSI strike unless specified otherwise.
strike
strike
strike
strike
005164-000
A05185-000
Q001-049 (avaible on special order)
A05185-004 (avaible on special order)
Q001-048 (avaible on special order)
ANSI Prep A115.2
T-Strike Square Corner
Full Lip, Square Corner
T-Strike 9/16" Radius
Full Lip, 1/4” Radius Corner
Long Backset Extension Link
A22161-005-00 link for 5" backset For use with 2 -3/4" backset latches. (Except 3/4” Projection)
backset
A22161-005-00
