Falcon B-Series Cylindrical Lockset Non Keyed

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
Falcon B-Series Cylindrical Lockset Non Keyed
More from Falcon
Price: $83.55 USD
Ships From
Comments (Optional)
In Stock:
Standard - ships in 1 business day.

1-844-809-3667

Sales
Technical Support
Product Description:
Falcon Lock Philosophy
falcon logo
At Falcon, we take a proactive approach to addressing commercial facility needs.
Whether the application is government, military, retail, industrial, tenant or institutional, Falcon offers a full line of Grade 1 and 2 locksets with functions and key systems to fit your budget requirements.
With a broad set of retrofit products including locks, trim options and cylinders for other manufacturers keyways, Falcon can provide an economical solution for your locking system needs.
As part of the world-renowned IR Security & Safety Sector, Falcon benefits from the power of IR’s industry leadership, global distribution and multiple product lines that deliver integrated security solutions.
Falcon is represented and supported by the Security & Safety Consultant organization across the US and Canada.
Their capabilities include facility surveys, specification writing, value engineering, key system design. In conjunction with IR security Centers complete after the sale service and support is available
Other trim designs and finishes are avaible on special order. For more information call: 1-877-631-9411.
How to Order
For correct ordering, and to ensure no delays in shipment of your order, the following descriptive data must be listed in the sequence shown. Necessary information can be found in other parts of this catalog. The example below shows an order for 12 each T locksets in the 301 Privacy function, D (Dane) trim design in a 626 (satin chrome) finish, with 2-3/4" backset latch, to accommodate doors 1-3/4" thick.
dorma Quantity: Indicate the quantity required.
dorma Catalog Number: Select catalog number.
dorma Trim Design: Indicate letter of lever design required.
dorma Example: Example: A=Avalon; D=Dane; Q=Quantum..
dorma Finish: When the finish is the same for the outside and inside trim, it is shown once (626). For split finishes, the outside is designated first, then the inside (605 x 625).
dorma Latch: 2-3/4" backset standard. 2-3/8" backset available.
All latches are UL Listed 1-1/2 hour B Label.
dorma Strike: 4-7/8" x 1-1/4" ANSI strike standard. Optional T-Strike or Full Lip Strike available.
dorma Cylinder Type: For 6-pin, add 6-pin.
dorma Keying Detail: We suggest using the standard terms developed by A.H.C. (Architectural Hardware Consultants). EXAMPLE: AA1–Grand Master keyed, Master keyed, change key 1.
dorma Interchangeable Core: To order product capable of accepting an interchangeable core, add “FIC” (for interchangeable core). To order product with an interchangeable core, add “WIC”
(with interchangeable core).
dorma Keyway: “G” is standard on regular cylinders, “A” is standard on interchangeable cores. Other keyways available.
dorma Additional Keys: Note the total number of keys required.
dorma Large Bow Keys: Add - “with large bow keys.”
Catalog Number Function Description
B12
passage
Dummy Trim
Single Trim. Surface mounted rigid lever.
B101
privacy
Passage/Closet Latchset
Latch bolt by levers at all times.
B301
privacy
Privacy Lock
Latch bolt by levers. Outside lever locked by push button in inside lever. Rotating inside lever or closing door releases push button. Emergency release in outside
lever unlocks door.
Trim design
falcon
falcon

dane drawing

falcon
falcon
quantum drawung
Finishes
The latest in modern techniques and equipment are used to apply the highest quality finish. Extra steps assure durable, consistent finishes and long useful life. Although we apply the finest available protective plating and/or enamel coating to the surface of our products, these finishes have limitations and in time may deteriorate either from exposure to weather, pollution, perspiration, extremes of climate, frequency of use or other factors. Deterioration of these finishes is, therefore, not a defect, but a normal process which is unavoidable. Our company cannot accept responsibility for finish deterioration in these circumstances; therefore, the finishes cannot be guaranteed. These products will not be refinished or replaced under our warranty should deterioration of finishes occur.
Description ANSI No. Available on
Bright Brass
605
Dane
Satin Brass
606
Dane
Satin Bronze
612
Dane
Satin Bronze Oil Rubbed
613
Dane, Quantum
Bright Chrome 625 Dane
Satin Chrome
626
Dane, Quantum, , Avalon
Falcon M Series Non Keyed Lever
Full T-Series Falcon catalog
catalog
Door thickness: 1-3/8" to 2" standard.
Backset: 2-3/4" standard. 2-3/8" also available.
Mechanism: Parts constructed of brass or cold formed steel, zinc plated and dichromated for rust resistance. Springs are stainless steel.
Attachment: Lock chassis secured to door by two screws which pass through a steel rose insert inside and thread directly into the outer rose mounting assembly.
Handing: Locks are non-handed.
Cylinders: Drilled with 6-pin chambers, pinned in 5. Pinning in 6 chambers available when specified, at no cost. Cylinder assemblies removable to rekey. Also available with 6 or 7-pin interchangeable core cylinders. Cylinder housings and plugs machined from solid brass. Springs are phosphor bronze.
Two nickel silver keys furnished standard.
Keyways: “G” keyway standard on standard cylinders. “A” keyway standard on I/C core cylinders. Also available with some optional keyways.
Trim: Roses are 3-1/2" diameter, heavy wrought brass or bronze, installed over steel rose inserts which are through-bolted through door. Levers are pressure cast (solid levers-no inserts) material finished to match mating parts.
Latches: 1/2" bolt projection. UL listed. Latches have selfadjusting fronts to accommodate beveled or flat doors. 2-3/8" backset with 2-1/4" x 1" latchfaces, 2-3/4" backset with 2-1/4" x 1-1/8" latchfaces. Deadlocking latches have a solid round bar stock DL bar preventing latch jamming and/or lock outs.
Strikes: 4-7/8" x 1-1/4" ANSI strike with curved lip to meet ANSI A115.2 door frame preparation standard. Consult Options and Accessories section for other available strike size and configurations.
Screws: Furnished with combination screws for use in wood or metal doors and frames.
ANSI/BHMA: Meets ANSI/BHMA A156.2, Series 4000, Grade 2.
UL: 1-1/2 hour B label.
Falcon lock
Falcon Mortise Lock Specifications
bullet

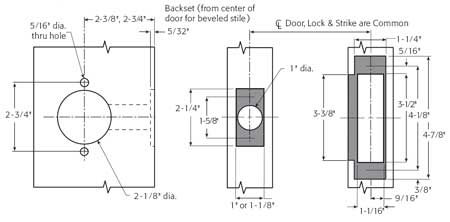

All locks shall meet the new ANSI/BHMA A156.2, Series 4000,Grade 1 for key-in-lever locksets. drawing
bullet
Locksets shall be UL Listed (3 hour A Label).
bullet
Locksets shall be provided standard with Pressure Release™ feature. When outside lever is locked, it is not rigid but will move freely without operating the latch bolt.
bullet
Lever trim shall have individual heavy-duty springs behind rose for lever return and to prevent lever sag. Trim shall be through-bolted with two (2) 10-32 screws coated with thread sealant to provide strength and resistance to loosening. Inner and outer trim shall “bottom out” to prevent door collapse. Roses shall be minimum of 3-1/2" diameter.
bullet
All lever designs shall be solid and meet the federal ADA and
state disability requirements. Inside levers shall be attached by
Allen-head set screw to prevent tampering or vandalism.
bullet
Locksets shall adjust to fit door thickness from 1-3/4" to 2-1/8".
bullet
All locksets shall be non-handed and not require field disassembly for re-handing.
bullet
Preparation for door must be non-handed.
Hand Selector
dormahanding
T SERIES DESCRIPTION
1" Faceplate
1" Faceplate w/ 1/4" Radius
1-1/8" Faceplate

Dummy Trim
Single

Single
Strikes
Furnished with a 4-7/8" ANSI strike unless specified otherwise.
strike
strike
strike
005164-000
A05185-000
Q001-049 (avaible on special order)
Q001-048 (avaible on special order)
ANSI Prep A115.2
T-Strike Square Corner
Full Lip, Square Corner
Full Lip, 1/4” Radius Corner
Latches—1/2" Projection, UL listed
Latches for B Series locks are UL listed.
2-3/4" backset standard.
2-3/8" optional.
Unless otherwise specified, we furnish a 2-1/4" x 1" x square corner faceplate on 2-3/8" backset latches and 2-1/4" x 1-1/8" x square corner on 2-3/4" backset latches.
backset
backset
backset
Square Corner 1/2" Projection 1/4" Radius Corner 1/2" Projection (avaible on special order) A31727-005-00 link for 5" backset. For use with 2 -3/8" backset latches (avaible on special order)
