Dorma 1816 Series electromagnetically controlled door


Dorma 1816

Dorma 1816 Series electromagnetically controlled door


Manufacturer: Dorma
Price: $640.05






  Order Options:


Comments (Optional)


  Qty:

  Add To Cart

Availability Information
Standard - ships in 1 business day.

Similar Product Video
This product review video is for a similar product but it will differ in size, color and/or other attribute. We still feel the video will be of value to you.
Email Friend
This item ships from MO.

400 Series Door Closer Availability: IN STOCK. Next day shipping.
Dorma door Closers
Overview

dorma The 1800 Series has been developed to inexpensively guard a single door opening from smoke and fire, in place of an array of expensive products. In addition, it will allow unimpeded, easy access throughout a building while not affecting its integrity to control the spread of smoke and/or fire.

dorma Upon interruption or loss of current in either the H or FS specification, the unit will automatically close the door from any angle of opening.

dorma This is caused by release of the electromagnetic solenoid, thus allowing the door closer to perform its function.

Dorma The DORMA 1800 Series Hold Open (H) function is designed for buildings where it is desirable to have smoke/fire doors in the open position under normal circumstances, but which must close upon loss of current.

Dorma These units will operate as a standard door control, whether or not power is applied.

Dorma The DORMA 1800 Series Free Swing (FS) function is designed for buildings where it is desirable to have fire/smoke doors operating as if there were no closing device fitted under normal circumstances, but must be self-closing under alarm or loss of current.

Dorma 1816 Fire life safety closer / Stop side mount
Techical picture

1800 Series Holder/Release Device

Top Jamb Installation
1. 8600 Series Door Closer
2. Electromagnetic Hold Open Device
3. Photoelectric Detector Module
4. Step Down Transformer (used when incoming power is 120 volts )
5. Base Plate
6. Cover

Installation Instruction
Templates
Product Brochure

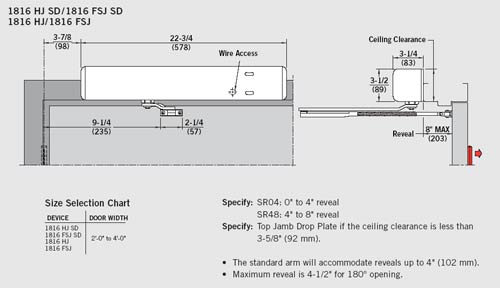

Technical Drawing
Features Include:
Dorma Door closing control by the proven DORMA 1800 Series door closer with spring power adjustment and adjustable hydraulic backcheck.
Dorma Two noncritical adjusting valves (sweep and latch) work to provide consistent closing speeds under a wide variety of temperature changes.
Dorma Interfaces with new or existing smoke/fire control systems.
Dorma Handed with full cover.
Dorma Can be connected to main electrical current 24 VDC, 24 VAC, or 120 VAC. Specify only on units without detector.
Dorma Unit can stand alone, independent of other systems.
Dorma LED blinks red every 15 seconds showing that the unit is on guard. When in alarm, the
LED glows red constantly.
Dorma Test feature and alarm reset built into LED indicator light pipe.
Dorma Detector LED and hold solenoid latch in alarm mode and require manual reset.
Certification

Dorma The DORMA 1800 Series is listed by U.L. and C.U.L under their continuing reinspection programs.

Dorma The DORMA 1800 Series is BHMA certified to conform to the requirements of ANSI A156.15. California State Fire Marshall (CSFM) approved.

Dorma MEA certification pending.

Specification

Dorma DORMA 1800 Series electromagnetic surface applied, fire/life safety, hydraulic door closer with or without integral smoke detector – power supply to suit hold open (H) or free swing (FS) specification.

Dorma The H model to have positive single-point hold open at any angle between 20° and 180° when current is applied.

Dorma The FS model to operate without any closing force between 0° and 180° when current is applied. (4°–6° fall away may occur.)

Dorma When the smoke density in the chamber of the 1800 detector exceeds the fixed threshold value, the alarm is given, the LED turns red, the circuit for the hold open device is cut off and the door closer immediately shuts the door.

Optional Specifications:

Dorma The 1800 Series will have manual on/off switch to bypass hold open function.

Dorma All 1800 devices will have exposed wiring bracket for surface wiring.

Installation:
Top Jamb or Track.
Finishes:

Standard Sprayed Finishes:

Dorma Primed for Painting: 600.
Dorma Aluminum: 689.
Dorma Bronze: 691 (Dull), 690 (Statuary), 695 (Dark Duranodic).
Dorma Gold: 696.
Dorma Black: 693.

Warranty:

Dorma Closer: 25 Years.
Dorma Electrical Component: 2 Years.

Options:

Dorma (BYP) - Concealed manual on/off switch to bypass hold open function. Access hole is drilled in the cover.
Dorma (EXP) - Exposed wiring bracket

Electrical Specifications:

Operational Voltage:

Models with Detector:
Dorma
24 V AC/DC 150 mA
Dorma
120 VAC 50/60 HZ - 150 mA

Models without Detector:
Dorma
24 V AC/DC 150 mA
Dorma
120 VAC 50/60 HZ - 125 mA

1800 SD Models (with detectors) Only:
Smoke Detector:
Contact Ratings: Alarm and/or accessory contacts (resistive load) 1.25 A max. at 24 VDC, 0.3 A max. at 120 VAC. Trouble contact (resistive load): 0.5 A max. at 24 VDC.
Maximum remote alarm indicator lamp output: 0.3 A at 24 VDC. Provides power to operate remote LED.
Alarm Indications:
Red LED “on” in alarm.
Alarm relay contacts transfer.
Trouble Indications:
N.C. trouble contacts open upon loss of power.
Red LED stops flashing.
Compatibility:
Connects to one area detector for remote sensing. Interfaces with five alarm systems using N.C. or N.O. alarm contacts and N.C. (under power) trouble contacts. Five detectors may be interconnected for zone control of doors or pairs of doors.
Transient Protection:
To meet U.L. 268 Standard.
Replaceability:
Field-removable from door closer housing. Return to factory for repair and/or replacement. Swirl is field-removable for cleaning.
Technical Details

1856 Track Installation

Door closing control by the proven DORMA 8600 Series door closer with spring power adjustment and adjustable hydraulic backcheck.

Dorma Two noncritical adjusting valves (sweep and latch) work to provide consistent closing speeds under a wide variety of temperature changes.

Dorma Interfaces with new or existing smoke/fire control systems.

Dorma Handed with full cover.

Dorma Can be connected to main electrical current 24 VDC, 24 VAC, or 120 VAC. Specify only on units without detector.

Dorma H – Single point 20° to 180°.

Dorma H can be manually released.

Dorma FS – 0° to 180°

Dorma Optional concealed on/off push switch to bypass hold open feature. Specify BYP.

Dorma Concealed wiring application standard. Surface wiring option available if specified. Specify EXP.

Dorma Fail-safe type design releases hold open/free swing and closes door when input current is interrupted or alarm state is signaled.

Dorma Both H and FS units function as standard door closers when there is no current applied.

Dorma Models without detectors can be powered directly by models with detectors, in which case solenoids from both modelsdeenergize under loss of power or an alarm condition.

Questions and Answers
Q: Can closure be mounted on either side of door
A: The Dorma 1816 Series electromagnetically controlled door cannot be mounted on either side of the door. It is stop side mount only and is handed as well.
