Product Description:
crl logo J995BCN CRL Jackson® 900 Series Spring Power Adjustable Floor Mounted Closer with Center-Hung Package - 180 Degree Swing No Hold Open Backcheck @ 85 Degree
  • 180 Degree Swing No Hold Open Backcheck @ 85 Degree, Center-Hung Package
  • Multi-Size Spring Power Adjustable
  • Interchangeable Spindle Heights
  • Leveling and Door Centering Adjustments
  • 10 Year Limited Warranty
  • UL Listed
  • Specifications:
    - Maximum Center-Hung Door: Weight = 1000 lbs. (454 kg), Width = 54" (1.37 m)
    - Maximum 3/4" Offset Door: Weight = 650 lbs. (295 kg), Width = 48" (1.22 m)
    - Maximum 1-1/2" Offset Door: Weight = 300 lbs. (136 kg), Width = 42" (1.07 m)
    - Adjustable Spring Power: Multi-Size 1 - 6
    - Door Centering Adjustment: 6 Degree Range Adjustment to Align Door

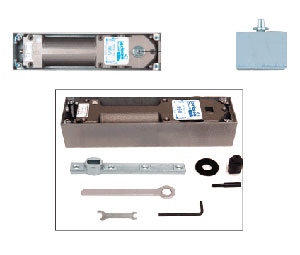

  • Center-Hung Package Consists of:
    - 990 Closer Body
    - Cement Case
    - J7080 Center-Hung Arm
    - CRL9040S8 Flat Tapered Spindle
    - Installation Tool Package
  • NOTE: This Door Closer is designed to open to a maximum of 180 degrees. An auxiliary floor or overhead stop is required to stop the door at less than 180 degrees.



(Click to Enlarge)

Jackson® 900 Series Heavy-Duty Floor Mounted Door Closer with Center-Hung Package

900 Series Spring Power Adjustable Floor Mounted Closer
(Click to Enlarge)

Customer Supplied Photo
Questions and Answers
Q: We are installing Carl Jackson 995 floor closers and it doesn’t seem to open more than 85 degrees, is there something we need to do to get it to open 180 degrees?
A: The J995BCN features a Backcheck valve at 85 degree. While it will feel substantially more difficult to continue to push the door open you can do so quite slowly and carefully.

There is a reference to adjusting the backcheck resistance as seen in step 14 of page 6 of the manufacturer's installation instructions as seen here:
