Compx TLCB170 Cabinet Cam Lock - Vertical Mount Thick Panel Cylinder Body - 1 Each
×
This image is for a similar product but it will differ in size, color and/or other attributes.
×
This product review video is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
11.70 USD
In Stock Ready for Shipment
Volume Price Information
Buy
25
or more and pay
$10.53
each (save
10.0%
)
Comments
(Optional)
ADD TO CART
In Stock (No Minimums
):
Naples, FL Warehouse Qty: 3
In Stock (Minimums Apply
):
Kansas City, MO Warehouse Qty: 75
Middletown, OH Warehouse Qty: 188
For quantities beyond the "In Stock" above, the item(s)
ships in 10-15 business days.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
You must order a total of $35.00 worth of product from CompX to place an order.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-844-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:

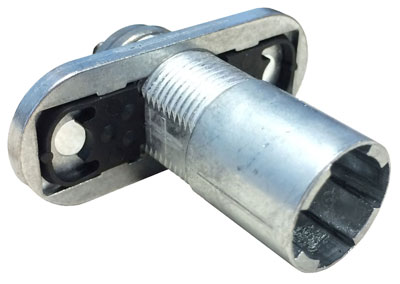

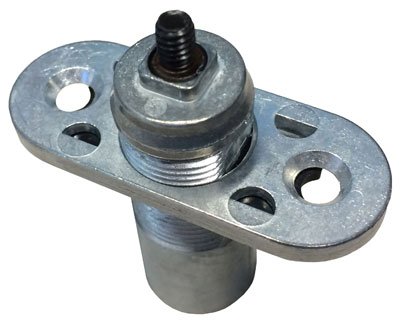

90˚ Rotation Vertical Mount Cabinet Cam Lock Cylinder Body (panels from 7/8” to 1-1/4” thick) - 1 Each
Universal type lock for either doors or drawers
Vertical Mount, 90º Rotation

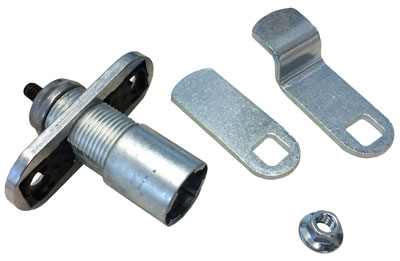

Lock comes packaged with a straight cam extending 1-1/4” and a bent arm cam extending 1-1/2”

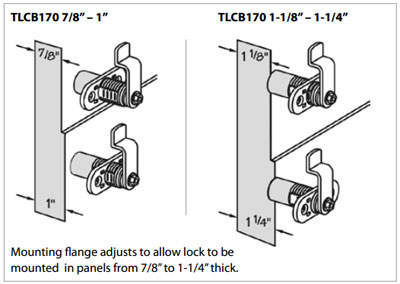

Cylinder length can be adjusted from 7/8” to 1-1/4” lengths by screwing the cylinder body in/out
Requires 16.5 mm diameter bore hole
Counter-clockwise to lock at a 90º rotation (only)n
Supplied with nickel plated finish cup
Bent Cam:
1-1/2”
Straight Cam:
1-1/4”
Cam Rotation:
90º
NOTE: ORDER LOCK PLUG & STRIKE SEPARATELY
Packing:
25 Locks/Box
Sold In: 1 Each.
Both broken and full box quantities.
10% Discount available on full box orders.
