Bommer 3029-4-600

copy to clipboard

Bommer 3029-4-600 4in Double Acting Spring Hinge-Mortise Type-Steel Base-Primed for Painting

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
Bommer 3029-4-600 4in Double Acting Spring Hinge-Mortise Type-Steel Base-Primed for Painting
Main ImageVideo Review Bommer 3029-4-600 4in Double Acting Spring Hinge-Mortise Type-Steel Base-Primed for Painting
More from Bommer
Price: $52.18 USD
Ships From
Comments (Optional)
Low Inventory - This product is discontinued
but there are 5 left in stock
and ready for shipment. Order today.

1-844-809-3667

Sales
Technical Support
Product Description:

bommer logo 4" Double Acting Spring Hinge - Primed for Painting

  • Mortise Type
  • ANSI K81151
  • Non-Template
  • Non-Handed
  • Material: Steel
  • Door Thickness: 7/8" to 1-1/4"
  • Minimum Door Height: 6'8"
  • Maximum Door Weight
    • 2 Hinges: 60 lbs
    • 3 Hinges: 75 lbs
  • Maximum Door Width
    • 2 Hinges: 2'4"
    • 3 Hinges: 3'0"
  • Door flange may either be surface applied to the edge of the door or mortised into edge of door
  • Jamb flange is surface applied to jamb
  • Do not use on doors with hinge edge beveled
  • Packed with all wood screws
  • Note: Specifications of product pictured may differ from product being sold. Read description carefully.
  • This hinge is sold per hinge and not per pair. When you purchase one you will be sent one hinge
  • Replacement Bommer F86040 Tension Pin and Bommer F1200 Tension Rod is available.

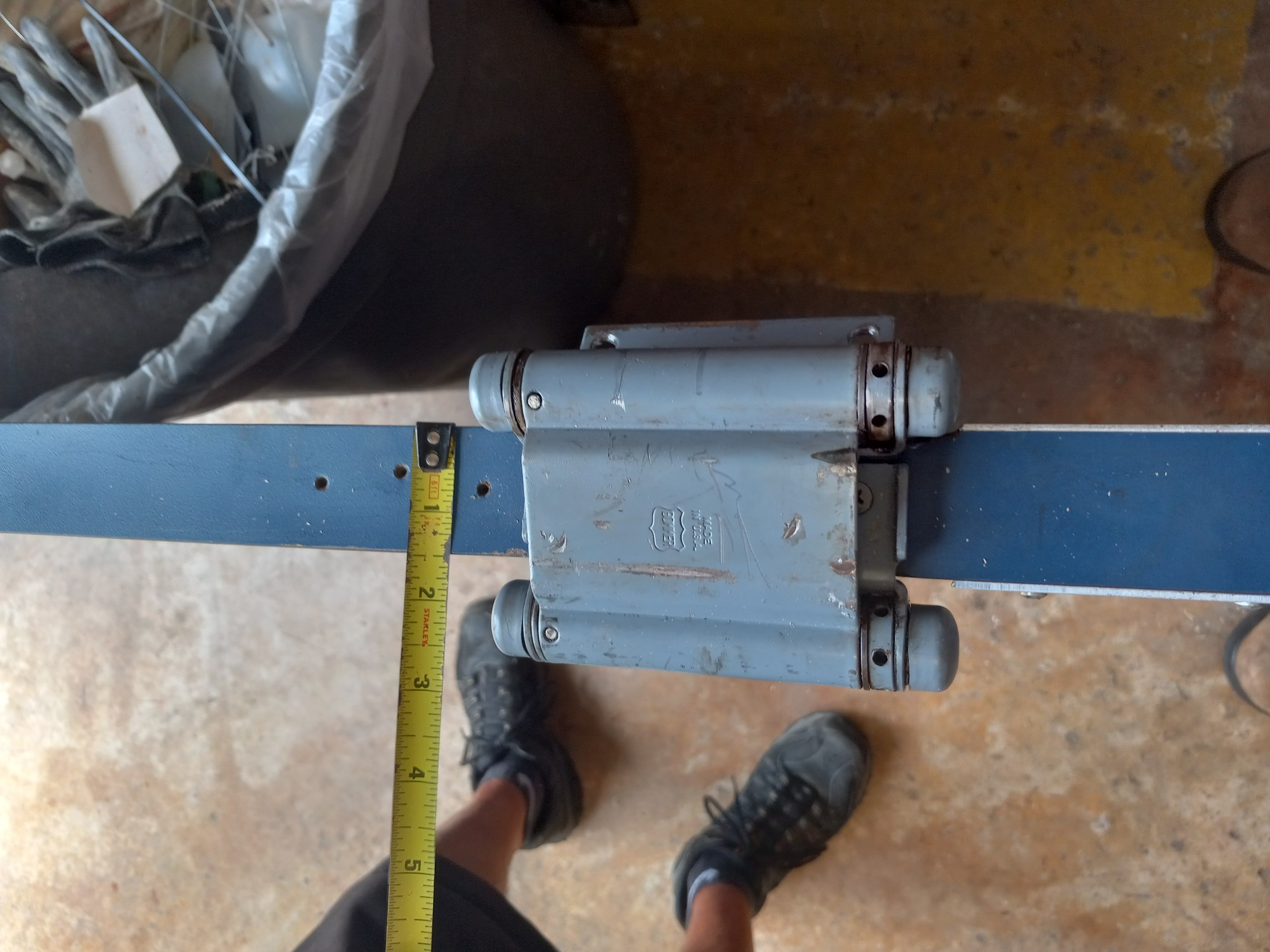

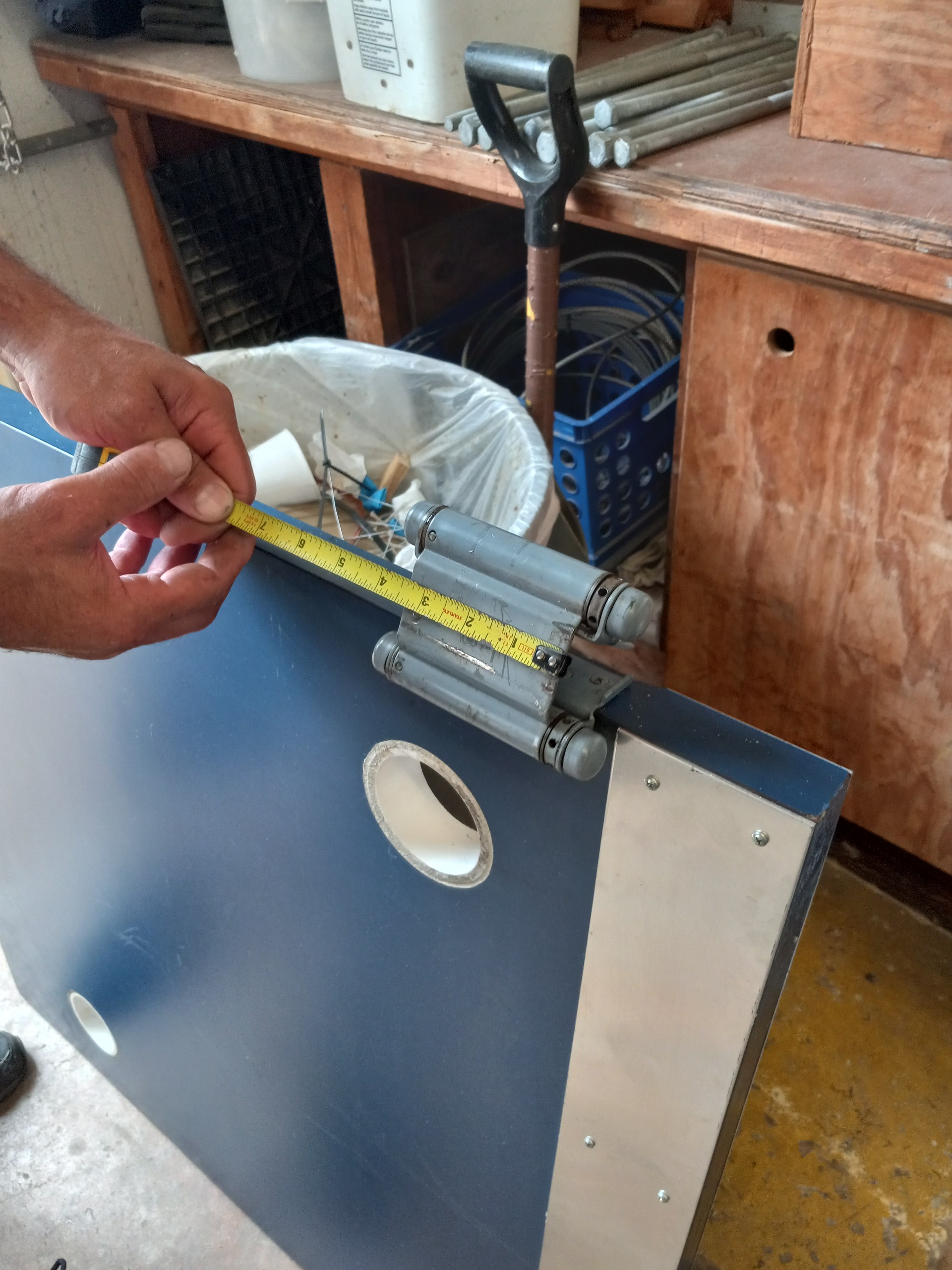

Customer Supplied Photos

(Click to Enlarge)
Questions and Answers
Q: Can i get this item also in stainless steel?
A: The Bommer 3029-4-600 4in Double Acting Spring Hinge-Mortise Type-Steel Base-Primed for Painting it's not available in stainless steel. In fact this manufacturer does not produce any double acting spring hinges in stainless steel. However we can supply you with the Sugatsune JDA-120-36S which will accommodate a door thickness of 1-13/32” amd can be seen here:

Download File

This is a stainless steel double acting hinge they can handle a maximum weight of approximately 100 lb. Please feel free to reach out to our sales department for help in processing this order.
