Bilco S-40SV x EV
Bilco S-40SV x EV

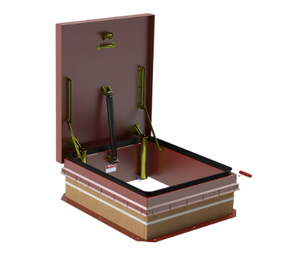

Bilco S-40SV x EV Type SV (manufacturer MS-40SV) - Single Leaf Automatic Smoke Vent - 36" x 30" - Galvanized Steel Curb and Aluminum Cover, 20" High Curb, Expanded Metal Grid & 3 - 8" x 24" Louvers (one on each non-hinge side)
×
This image is for a similar product but it will differ in size, color and/or other attributes.
×
This product review video is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
6,320.97 USD
In Stock Ready for Shipment
Select Shipping Cost
1 Fire Vent on Order (Add $272.50)
2 Fire Vents on Order (Add $179.85)
3 Fire Vents on Order (Add $92.65)
4+ Fire Vents On Order - FREE
Client will provide transportation.
Comments
(Optional)
ADD TO CART
This item is not in stock and typically ships in 10-15 business days.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
This item has minimum order levels that need to be met.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-844-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
Type SV - Single Leaf Automatic Smoke Vent - 36" x 30" - Aluminum Cover / Galvanized Steel Frame
Standard Features and Benefits:
Automatic smoke vents aid Firefighters in bringing a fire under control by removing smoke, heat and gasses from a burning building
Type SV single leaf smoke vents are ideal for applications requiring smaller vent areas, such as elevator shafts or stair wells.
Thermolatch® positive hold/release mechanism ensures reliable vent operation when a fire occurs. Automatically releases vent covers upon the melting of a UL-listed 165°F (74°C) fusible link. The curb-mounted fusible link housing allows the latch to be quickly and easily reset from the roof level.
Engineered with powerful lifting mechanisms to open the covers in snow and wind conditions
Heavy duty shock absorbers assure smooth opening and eliminate the possibility of operational, roofing or structural damage
Fully insulated and gasketed for weather-tightnessConstructed with corrosion resistant materials to provide many years of trouble free, dependable service
Available in galvanized steel or aluminum construction and in a number of standard sizes. Polycarbonate dome covers are also available for natural daylighting.
Guide Specifications:
Size:
36" W x 30" L
Material:
Cover - 11 gauge (2.3 mm) Aluminum, Frame - 14 gauge Galvanized Steel.
Cover:
Brake formed, hollow-metal design with 1" (25 mm) concealed fiberglass insulation, 3" (76 mm) beaded, overlapping flange, fully welded at corners, and internally reinforced for 40 psf (195 kg/m2) live load.
Curb:
12" (305 mm) in height with integral capflashing, 1" (25 mm) fiberboard insulation, fully welded at corners, and 3-1/2" (89 mm) mounting flange with 7/16" holes (11 mm) provided for securing frame to the roof deck.
Gasket:
Extruded EPDM rubber gasket permanently adhered to cover.
Hinges:
Heavy-duty pintle hinges with 3/8" (9 mm) Type 316 stainless steel hinge pins.
Latch:
Slam latch with interior and exterior turn handles and padlock hasps.
Lift Assistance:
Compression spring operators enclosed in telescopic tubes. Automatic hold-open arm with grip handle release.
Performance Ratings:
Complies with UL 790 Class A (burning brand test).
Finish:
Mill Finish.
Hardware:
Aluminum - Engineered composite compression spring tubes with steel compression springs packed in grease. Type 316 Stainless steel hinges. All other hardware is zinc plated/chromate sealed
Brochure
Installation Instruction
Operational Instructions
Template
S-Door Drawing
