ASI 94696A

Name: ASI 94696A Recessed Automatic Roll Paper Towel Dispenser and Waste Receptacle Unit
Brand: ASI
SKU: ASI 94696A
Price: 1302.09 USD

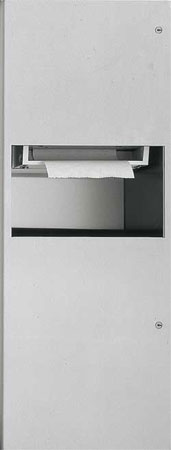

ASI 94696A Recessed Automatic Roll Paper Towel Dispenser and Waste Receptacle Unit

× This image is for a similar product but it will differ in size, color and/or other attributes.

ASI 94696A Recessed Automatic Roll Paper Towel Dispenser and Waste Receptacle Unit

Price: $1,302.09 USD

Comments (Optional)

ADD TO CART

For quantities beyond the "In Stock" above, the item(s) ships in 4 business days.

+ Add to My Wish List

1-773-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

ASI Recess Mounted Automatic Roll Paper Towel Dispenser and Waste Receptacle

Part of the Profile Collection
Holds and dispenses one 8" diameter (Ø203) x 8" wide (203) standard towel roll up to 800 ft. (244m) long and one 8" wide (203) stub roll up to 4" diameter (Ø102)
Waste capacity of 10 gallons (38 liters)
Dispenser powered by four (4) D-size batteries (not supplied)
Satin stainless steel
Rimless tumbler locks keyed alike to other ASI washroom equipment
Rough wall opening: 14-5/8" W x 39-3/4" H x 9-1/8" D (371 x 1010 x 232)

Cut Sheet

Operation

Towels are dispensed one at a time automatically when hands are placed in sensor zone until supply is depleted.
Unit may be reloaded with a full roll to automatically start when finished with an existing partial roll and will continue to feed properly when reloaded with a full roll and partial roll is transferred to stub roll position.
Refill dispenser by unlocking door and replacing towel roll for an empty or partially empty unit.
Dispenser supply is replenished and waste container is emptied manually on cycles determined by maintenance needs.
Locking full-face door over compartments prevents unauthorized access or removal.

Installation

Rough Wall Opening (RWO) required is 14-5/8" W x 39-3/4" H x 9-1/8" D (371 x 1010 x 232)
Install unit in wall recess with four (4) No 10 self-tapping screws (by others) through concealed mounting holes provided.
Note that top of Rough Wall Opening (RWO) is 3/4" (19) below top of unit.
For compliance with ICC/ANSI A-117.1-2003 and ADA Accessibility Guidelines, install unit so that top edge of towel dispenser opening is 48" (1219) maximum above finished floor (MAX AFF) only if clear floor forward reach or side reach access is provided.
Be advised that local codes may require mounting so that top of towel dispenser opening is 40" (1016) MAX AFF (e.g. California UBC/Title 24).
For general utility install unit with centerline of towel dispenser opening between 49" and 56" (1245 to 1422) AFF.
