ASI 94696
ASI 94696

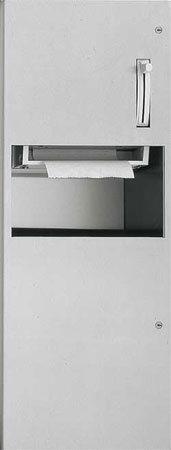

ASI 94696 Recessed Roll Paper Towel Dispenser and Waste Receptacle Unit
Manufacturer:
ASI
Price:
$913.78
Order Options:
Comments
(Optional)
Qty:
Availability Information
Standard -
An order for quantities beyond our Immediate availability above
ships in 4 business days.
About Us Video
This product review video is for a similar product but it will differ in size, color and/or other attribute. We still feel the video will be of value to you.
More from ASI
ASI Recess Mounted Roll Paper Towel Dispenser and Waste Receptacle
Part of the Profile Collection
Holds and dispenses one 8" diameter (Ø203) x 8" or 9" (203/229) wide standard towel roll up to 800 feet (244m) long and one stub roll up to 4" diameter
Waste capacity of 10.5 gallons (40 liters)
Lever operated dispensing mechanism
Satin stainless steel
Rimless tumbler locks keyed alike to other ASI washroom equipment
Rough wall opening: 14-5/8" W x 39-3/4" H x 9-1/8" D (372 x 1010 x 232)
Cut Sheet
Operation
Towels are fed by lever action.
Towel feed length is adjustable for economy by pin (supplied) limiting of lever stroke length.
Unit may be reloaded with a full roll to automatically start when finished with an existing partial roll and will continue to feed properly when reloaded with a full roll and partial roll is transferred to stub roll position.
Refill dispenser by unlocking door and replacing towel roll for an empty or partially empty unit.
Dispenser supply is replenished and waste container is emptied manually on cycles determined by maintenance needs.
Locking full-face door over compartments prevents unauthorized access or removal.
Installation
Rough Wall Opening (RWO) required is 14-5/8" W x 39-3/4" H x 9-1/8" D (372 x 1010 x 232)
Install unit in wall recess with four (4) No 10 self-tapping screws (by others) through concealed mounting holes provided.
Note that top of Rough Wall Opening (RWO) is 3/4" (19) below top of unit.
For compliance with ICC/ANSI A-117.1-2003 and ADA Accessibility Guidelines, install unit so that towel dispenser feed lever is 48" (1219) maximum above finished floor (MAX AFF) only if clear floor forward reach or side reach access is provided.
Be advised that local codes may require mounting so that top of towel dispenser feed lever is 40" (1016) MAX AFF (e.g. California UBC/Title 24).
For general utility install unit with centerline of towel dispenser feed lever between 49" and 56" (1245 to 1422) AFF.
