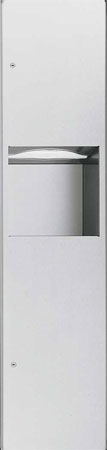

ASI 94676 Recessed Paper Towel Dispenser and Waste Receptacle Unit


ASI 94676

ASI 94676 Recessed Paper Towel Dispenser and Waste Receptacle Unit

Manufacturer: ASI
Price: $947.21






  Order Options:


Comments (Optional)


  Qty:

  Add To Cart

Availability Information
Standard - ships in 4 business days.

Similar Product Video
This product review video is for a similar product but it will differ in size, color and/or other attribute. We still feel the video will be of value to you.
Email Friend
More from ASI
 This item ships from NY.

ASI Recess Mounted Paper Towel Dispenser and Waste Receptacle
  • Part of the Profile Collection
  • Waste receptacle push door
  • Holds and dispenses 800 standard multi-fold or 600 standard C-fold or 1100 standard single-fold paper towels
  • Waste capacity of 8 gallons (30 liters)
  • Satin stainless steel
  • Rimless tumbler lock keyed alike to other ASI washroom equipment
  • Rough wall opening: 11-1/2" W x 53-1/2" H x 6-1/4" D minimum (292 x 1359 x 159)
  • Image shows model without push door
Operation
  • Paper towels are manually withdrawn through dispensing slot.
  • A towel adapter (provided) allows alternating between singlefold, C-fold and multi-fold dispensing at time of loading for a single type per load and ensures that towels feed properly until depleted.
  • Unit will continue to feed properly when reloaded with a partial load in place.
  • Refill dispenser by unlocking door and replacing towels for an empty or partially empty unit.
  • Dispenser supply is replenished and waste container is emptied manually on cycles determined by maintenance needs.
  • Locking full-face door over compartments prevents unauthorized access or removal.
Installation
  • Rough Wall Opening (RWO) required is 11-1/2" W x 53-1/2" H x 6-1/4" D minimum (292 x 1359 x 159)
  • Mount unit in wall recess with No 10 self-tapping screws (by others) through concealed mounting holes provided.
  • For compliance with ICC/ANSI A-117.1-2003 and ADA Accessibility Guidelines install unit with centerline of towel dispenser slot 48" (1219) maximum above finished floor (MAX AFF) only if clear floor forward reach or side reach access is provided.
  • Be advised that local codes may require mounting centerline of towel dispenser slot 40" (1016) MAX AFF (e.g. California UBC/Title 24).
  • Note that top of Rough Wall Opening (RWO) is 3/4" (19) below top of unit.
  • For general utility install unit with centerline of towel dispenser slot between 49" and 56" (1245 to 1422) AFF.
