    Home > Bathroom Hardware > Waste Receptacles > Recess Mounted > ASI 9459 Recessed Waste Receptacle

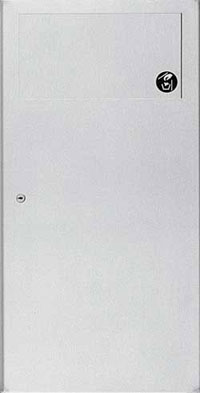

ASI 9459 Recessed Waste Receptacle


ASI 9459

ASI 9459 Recessed Waste Receptacle


Manufacturer: ASI
Price: $328.94






  Order Options:


Comments (Optional)


  Qty:

  Add To Cart

Availability Information
Standard - ships in 2-3 business days.

Similar Product Video
This product review video is for a similar product but it will differ in size, color and/or other attribute. We still feel the video will be of value to you.
Email Friend
This item ships from NY.


Availability: Ships directly from manufacturer within 2-3 business days.

ASI Recess Mounted Waste Receptacle
  • Part of the Profile Collection
  • Waste capacity of 4.5 gallons (17litres)
  • Satin stainless steel
  • Rimless tumbler lock keyed alike to other ASI washroom equipment
  • Rough wall opening: 12-3/4′′W x 26-1/2′′H x 4-1/4′′D min (324mm x 673mm x 108mm)
Operation
  • Waste container is emptied manually on cycle determined by maintenance requirements.
  • Keyed tumbler lock prevents unauthorized access or removal.
Installation
  • Rough Wall Opening (RWO) required is 12-3/4′′W x 26-1/2′′H x 4-1/4′′D min (324mm x 673mm x 108mm)
  • Unit is mounted in wall recess using No 10 self tapping screws (by others) through concealed mounting holes provided.
  • For compliance with ADA Accessibility Guidelines, unit should be installed so that waste receptacle rim is 54′′ (1372mm) maximum above finished floor (AFF) if clear floor side reach access is provided or 48′′ (1219mm) maximum AFF if clear floor forward reach access is provided.
  • Note that top of RWO is 3/4′′ (19mm) below top of unit. Typical suggested mounting height is bottom of unit 24′′ (610mm) AFF.
