ASI 3501-48P |
ASI 3501-48P 48" Straight Grab Bar with Peened Grip
|
| |
| Manufacturer: ASI |
| Price: $70.11
|
| |
|
| |
|
| |
| |
| |
|
|
|
This product review video is for a similar product but it will differ in size, color and/or other attribute. We still feel the video will be of value to you.
|
|
 |
|
 |
|
| |
|
| ASI 48" Straight Grab Bar with Peened Grip |
|
 |
- Exposed Mounting
- Tubing: 1-1/2" (38mm) diameter x 18 gauge (1.2mm)
- Flange: 3" (76 mm) diameter, 1⁄8" (3 mm) thick
- Exposed mounting screw holes are drilled and countersunk
- Satin stainless steel
|
|
|

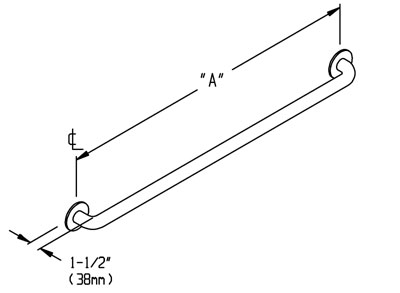

| Dimensions |
|
A = 48"
|
|
| Strength |
|
- Designed to meet and exceed ADA requirements as published in CABO/ANSI A117.1-1992 and CFR 28 Part 36, Federal Register Vol. 56 No. 144, 26 July 1991, section 4.21.3 and section 4.26.3, that fabricated product shall be of adequate strength to support a load of 250 pounds (113.4kg).
- Mounting to the wall is a critical part of the system to meet this requirement.
- To withstand the shear, tension or pull-out, and torsion loads generated by the maximum loading, the fastener system must be adequately sized.
|
|
| Installation |
|
- Use grab bar as template to mark mounting holes locations and pre-drill holes.
- Install bar using three (3) No10 self-tapping pan head screws (not supplied) or other fastener system (not supplied) to suit conditions for each flange.
- Appropriate anchoring and backing must be provided in accordance with local building codes or as specified prior to wall finishing.
- For compliance with ADA Accessibility Guidelines unit should be install so that center line of the grab bar is 33" (840mm) minimum above finished floor (AFF) to 36" (915mm) maximum AFF.
|
|
| Optional Mounting Kits |
|
| |
|
|
