ASI 204692AC-9
ASI 204692AC-9

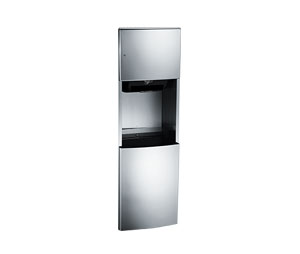

ASI 204692AC-9 Surface Mounted Automatic Roll Paper Towel Dispenser and Waste Receptacle
×
This image is for a similar product but it will differ in size, color and/or other attributes.
×
This product review video is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
1,326.92 USD
In Stock Ready for Shipment
Comments
(Optional)
ADD TO CART
For quantities beyond the "In Stock" above, the item(s)
ships in 4 business days.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
This item has minimum order levels that need to be met.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-844-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
ASI Surface Mounted Automatic Roll Paper Towel Dispenser and Waste Receptacle
17-3/4 gallons (67.1 liters) waste receptacle.
Fabricated of 22 gauge type 304 stainless steel alloy 18-8.
Sizes: 17-5/8" W x 56-5/16" H x 10" D minimum
Cut Sheet
Operation
Towels are dispensed one length at a time automatically when hands are placed in sensor zone until supply is depleted.
Owner predetermines length of towel dispensed by making selections on three (3) three-position switches for length, delay, and economy.
Unit may be reloaded with a full roll to automatically start when finished with an existing partial roll and will continue to feed properly when reloaded with a full roll and partial roll is transferred to stub roll position.
Refill dispenser by unlocking door and replacing towel roll for an empty or partially empty unit.
Dispenser supply is replenished, batteries are replaced and waste receptacle is emptied manually on cycles determined by maintenance needs.
LED indicates sensing and operation.
Locking compartment door and receptacle retainer prevents unauthorized access and roll removal.
Installation
Provide adequate in-wall reinforcement (by others) in drywall construction to hold mounted unit in-service after wall is finished.
Provide appropriate anchors (by others) to suit wall and field conditions for installation into walls other than new drywall.
Mount unit in wall recess using № 10 self-tapping screws (by others) through concealed mounting holes provided.
Note that top of RWO is 11/16" (18) below top of unit.
Power is supplied by code approved cable or conduit (by others) to RWO at any one of three [3] available locations indicated on diagram and terminated in utility duplex outlet box (provided) inside cabinet.
. Power required is 110-240VAC, 50/60 Hz protected by a 15A circuit breaker (by others) for low voltage adapter that draws ¼ Amp.
. Power adapter for dispenser unit is supplied cabled and plugged into dispenser and is plugged into duplex outlet (by others).
For compliance with ICC/ANSI A-117.1-2003 and ADA Accessibility Guidelines install unit so that top edge of towel dispenser opening is 48" (1219) maximum above finished floor (MAX AFF) only if clear floor reach access is provided.
Be advised that local codes may require mounting so that top of towel dispenser opening is 40" (1016) MAX AFF (e.g. California UBC/Title 24).
For general utility install unit with top of towel dispenser opening between 49" and 56" (1245 to 1422) AFF.
Sensor ground wire must be connected inside cabinet.
