Name: ASI 0485 Recessed Toilet Tissue and Seat Cover Dispenser
Brand: ASI
SKU: ASI 0485
Price: 303.25 USD

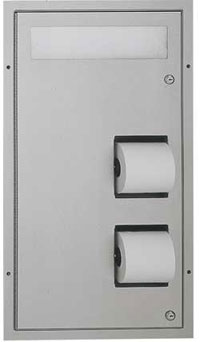

ASI 0485 Recessed Toilet Tissue and Seat Cover Dispenser

× This image is for a similar product but it will differ in size, color and/or other attributes.

Price: $303.25 USD

Comments (Optional)

In Stock (No Minimums):

Naples, FL Warehouse Qty: 2

For quantities beyond the "In Stock" above, the item(s) ships in 4 business days.

Sales

Technical Support

Product Description:

ASI Recess Mounted Toilet Tissue and Seat Cover Dispenser

Dispenses two rolls standard or 1800 sheet 4-1/2" x 5-1/4" diameter (114 x Ø133) toilet paper
Dispense 1000 paper seat covers
Satin stainless steel
Tumbler locks keyed like other ASI equipment
Includes two locks (L-001) and two keys (E114 key)
Rough wall opening: 15-3/4" W x 29" H x 4" D minimum (400 x 737 x 102)

Operation

Seat covers are self-feeding until supply is depleted.
Toilet paper rolls feed freely until depleted and level of supply is constantly visible for low-level warning.
Toilet paper rolls and paper seat covers are serviced by unlocking and opening door.
Locked door prevents inadvertent dumping and unauthorized removal.
Toilet paper spindles are carried in vandal resistant subframe accessible when door is opened.

Installation

Rough Wall Opening (RWO) required is 15-3/4" W x 29" H x 4" D minimum (400 x 737 x 102)
Mount unit in wall recess using four (4) No 10 self-tapping screws (by others) through concealed mounting holes provided.
Note that top of RWO (rough wall opening) is 13/16" (21) below top of unit.
For ADAAG compliance the centerline of the TP Dispenser should be located within 7" to 9" (178-227) of the front of the toilet and the TP Dispenser opening bottom should be above 15" (381) minimum AFF while the Seat Cover Dispenser opening centerline should be no higher than 48" (1219) maximum AFF.
An optional GB (not provided) at 33"-36" (838-914) AFF to the top of the bar should allow the service door top to clear the bottom of the bar when opening the door.38mm) AFF to center line.
