ASI 0484-HC

Name: ASI 0484-HC Dual Access Toilet Tissue and Seat Cover Dispenser
Brand: ASI
SKU: ASI 0484-HC
Price: 382.99 USD

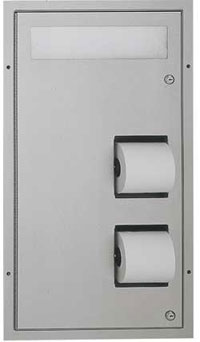

ASI 0484-HC Dual Access Toilet Tissue and Seat Cover Dispenser

× This image is for a similar product but it will differ in size, color and/or other attributes.

Price: $382.99 USD

Comments (Optional)

For quantities beyond the "In Stock" above, the item(s) ships in 4 business days.

Sales

Technical Support

Product Description:

ASI Partition Mounted Toilet Tissue and Seat Cover Dispenser

One side mounts flush to partition of barrier-free side to allow for grab bar
Dispenses four (4) rolls standard or 1800 sheet 4-1/2" x 5-1/4" diameter (114 x Ø133) toilet paper (two each side of unit)
Dispense 1000 paper seat covers
Satin stainless steel
Tumbler locks keyed like other ASI equipment
Partition Cut Out: 15-1/2" W x 28-7/8" H (394mm x 733mm)

Operation

Seat covers are self-feeding until supply is depleted.
Seat cover dispenser is manually reloaded with a full box through access door opposite H.C. stall on schedule determined by maintenance requirements.
Toilet paper rolls feed freely until depleted, level of supply is constantly visible for low level warning.
Toilet paper spindles are carried in sub-frame accessible when door is opened for replacement of paper rolls.

Installation

Unit is mounted in partition using No10 self-tapping screws (supplied).
One trim mounting flange adjusts for partition thickness of 1/2" (13mm) to 3-3/4" (95mm).
For compliance with ADA Accessibility Guidelines, top of cutout should be between 56-7/8" (1445mm) and 45-1/4" 1149mm) AFF.
To comply with CalDAG mounting height and for use with grab bar, top of cutout should be 45-1/4" (1149mm) AFF and cutout shall have its bottom edge 16-3/8″(416mm) AFF.
If grab bar is used it is positioned across unit at 33 ″ (838mm) AFF to center line.
