ASI 0345

copy to clipboard

ASI 0345 Horizontal Soap Dispenser

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
ASI 0345 Horizontal Soap Dispenser
Main ImageVideo Review ASI 0345 Horizontal Soap Dispenser
More from ASI
Price: $37.71 USD
Ships From
Comments (Optional)
In Stock (No Minimums):
Naples, FL Warehouse Qty: 3
In Stock (Minimums Apply):
Yonkers, NY Warehouse Qty: 3069
Quick Ship - up to 25 units available to ship in 1 business day
For quantities beyond the "In Stock" above, the item(s) ships in 4 business days.

ASI has a minimum order requirement. Orders smaller than the required minimum have a longer lead time as we need to consolidate onto a "stock" order. If you need a faster lead time, simply exceed the minimum order amount.

1-844-809-3667

Sales
Technical Support
Product Description:

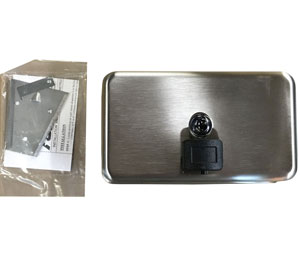

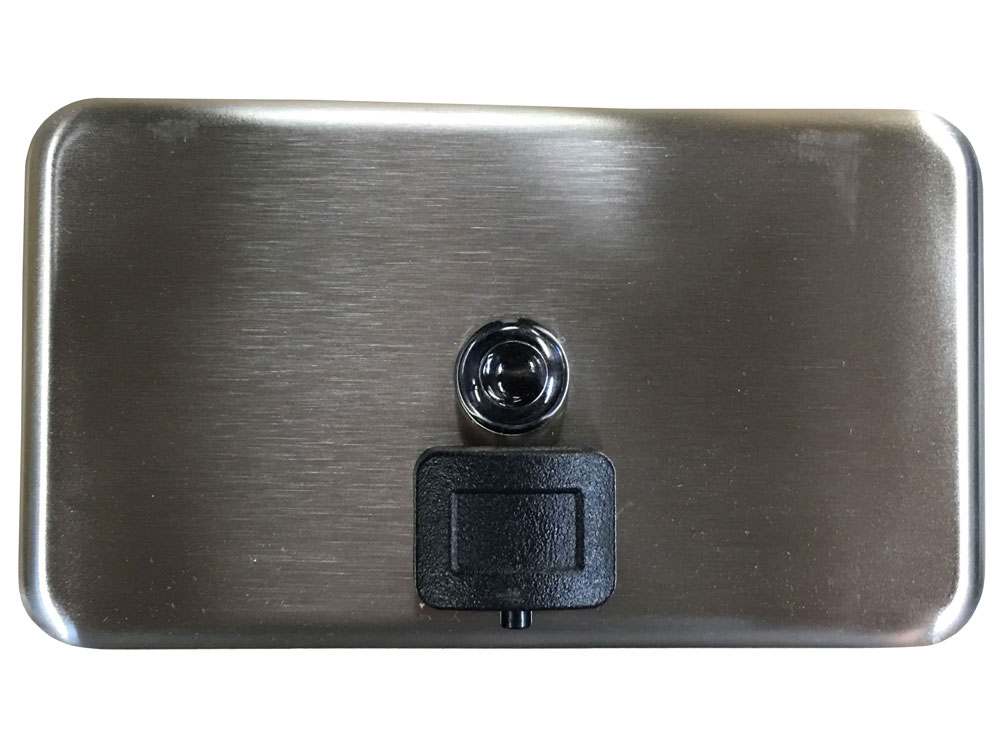

ASI Surface Mounted Horizontal Soap Dispenser
  • Capacity of 40 oz. of liquid, lotion or detergent soap, synthetic detergents and antibacterial soaps containing PCMX and/or Triclosan
  • Satin stainless steel
  • Unbreakable refill window
  • Valve meets ADA Accessibility Guidelines by requiring no more than 5 lbs pressure
  • 8-1⁄8" x 4-3⁄4" x 5-1⁄4" (205 x 120 x 135 mm)

Operation

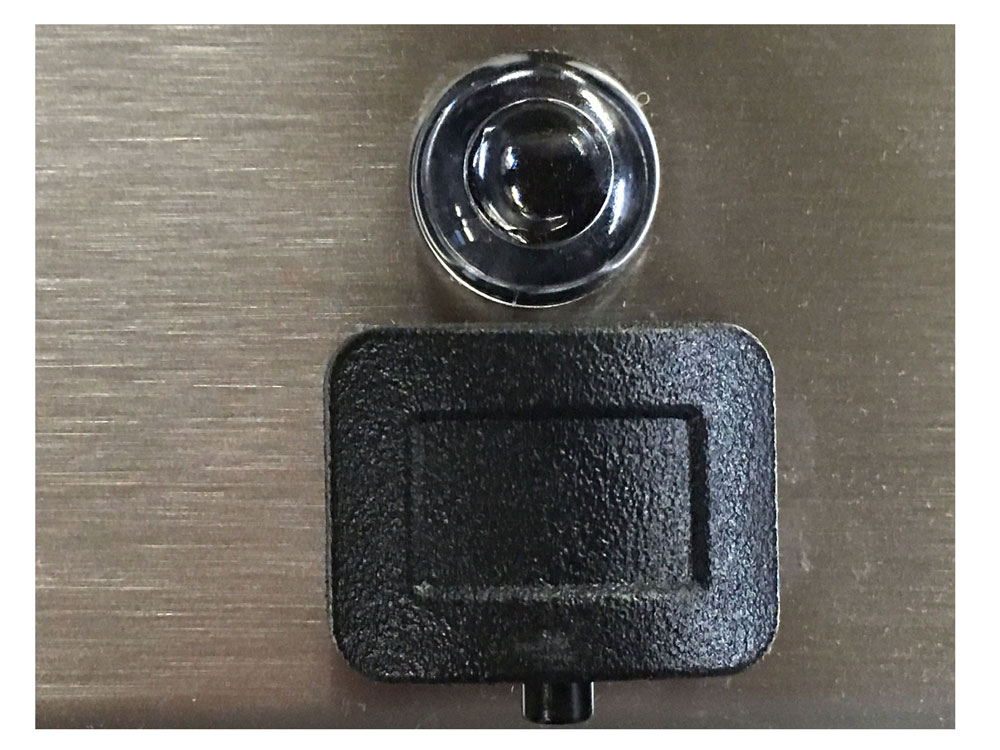

  • Push button to dispense soap.

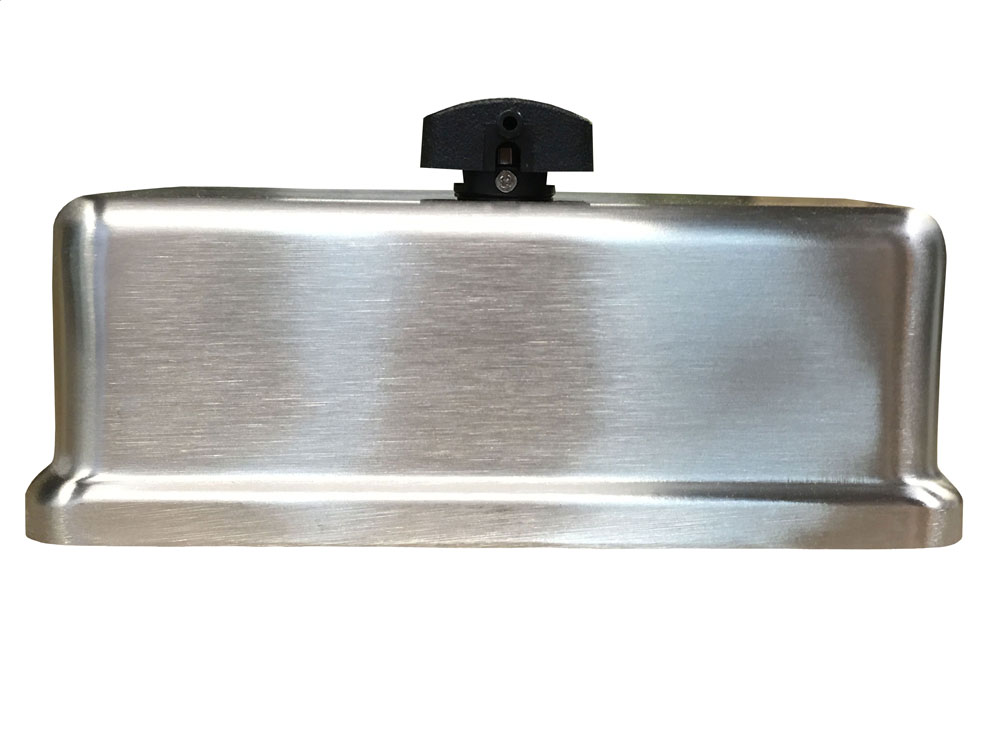

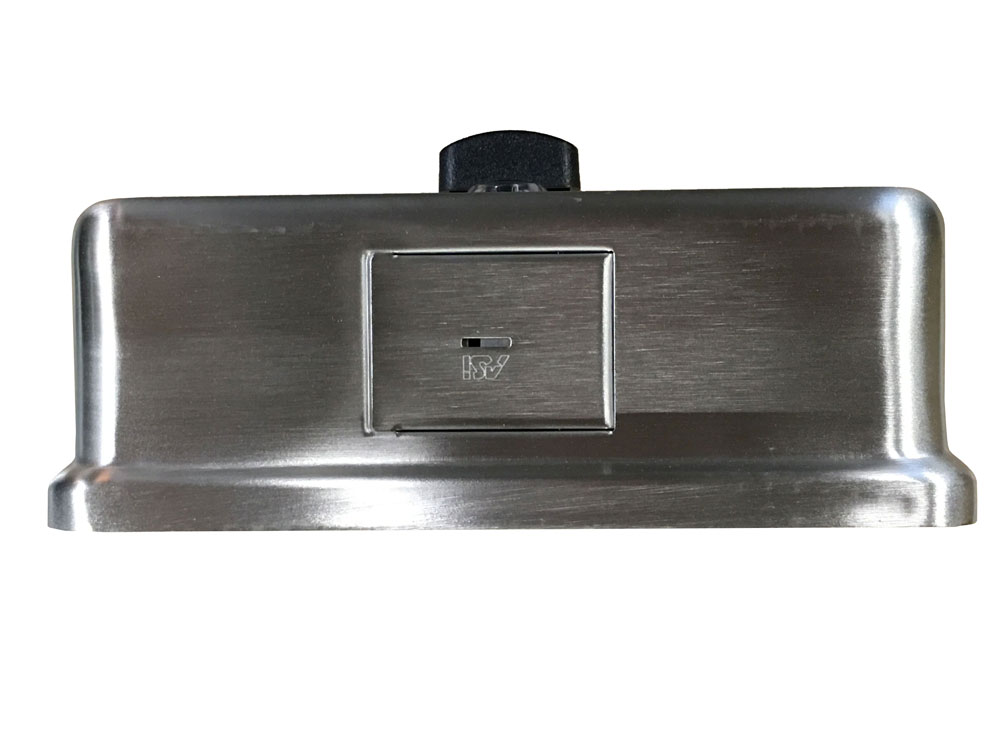

  • Unit is refilled through hinged door at top requiring special key (supplied) to open.
  • Soap tank will continue to feed properly until soap level is below valve intake port.
Installation

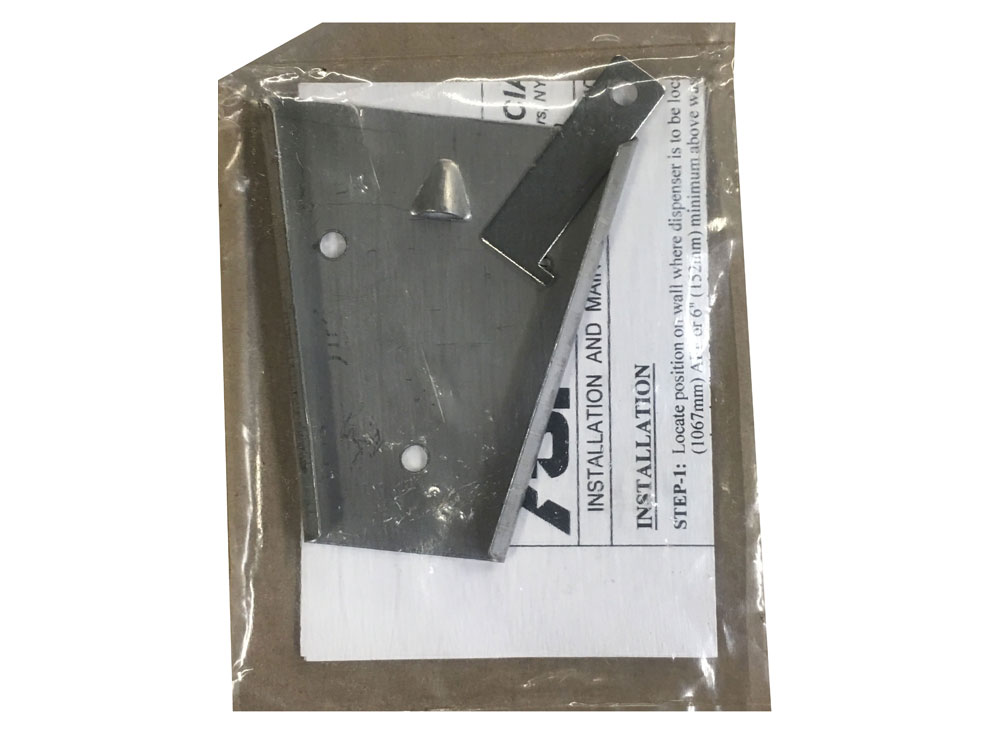

  • Unit is surface mounted to wall or partition with a wall mounting plate (supplied) and screws (by others).
  • Unit is secured to interlocking wedge bracket and locked in place by a locking screw (supplied) installed through hinged refill door.
  • Recommended installation for general utility is 42" (1066 mm) AFF or 6" (152mm) minimum above washbasin.

ASI 0345 and ASI 0347 Wall Plate Dimensional Review
Questions and Answers
Q: How do I open it if I lost the key
A: You would purchase the key as seen here:

Click Here

which would allow you to open the unit for the installation instructions as seen here:

Download File

(Required, used to email you once question is answered.)
