Adams Rite 4189-09-02-119-00-IB

Name: Adams Rite 4189-09-02-119-00-IB Sliding Door Flush Lockset with No Exterior Cylinder
Brand: Adams Rite
SKU: Adams Rite 4189-09-02-119-00-IB
Price: 76.27 USD

Adams Rite 4189-09-02-119-00-IB Sliding Door Flush Lockset with No Exterior Cylinder

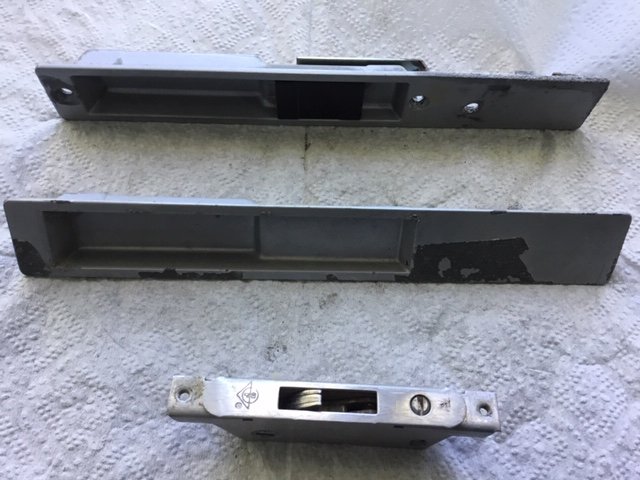

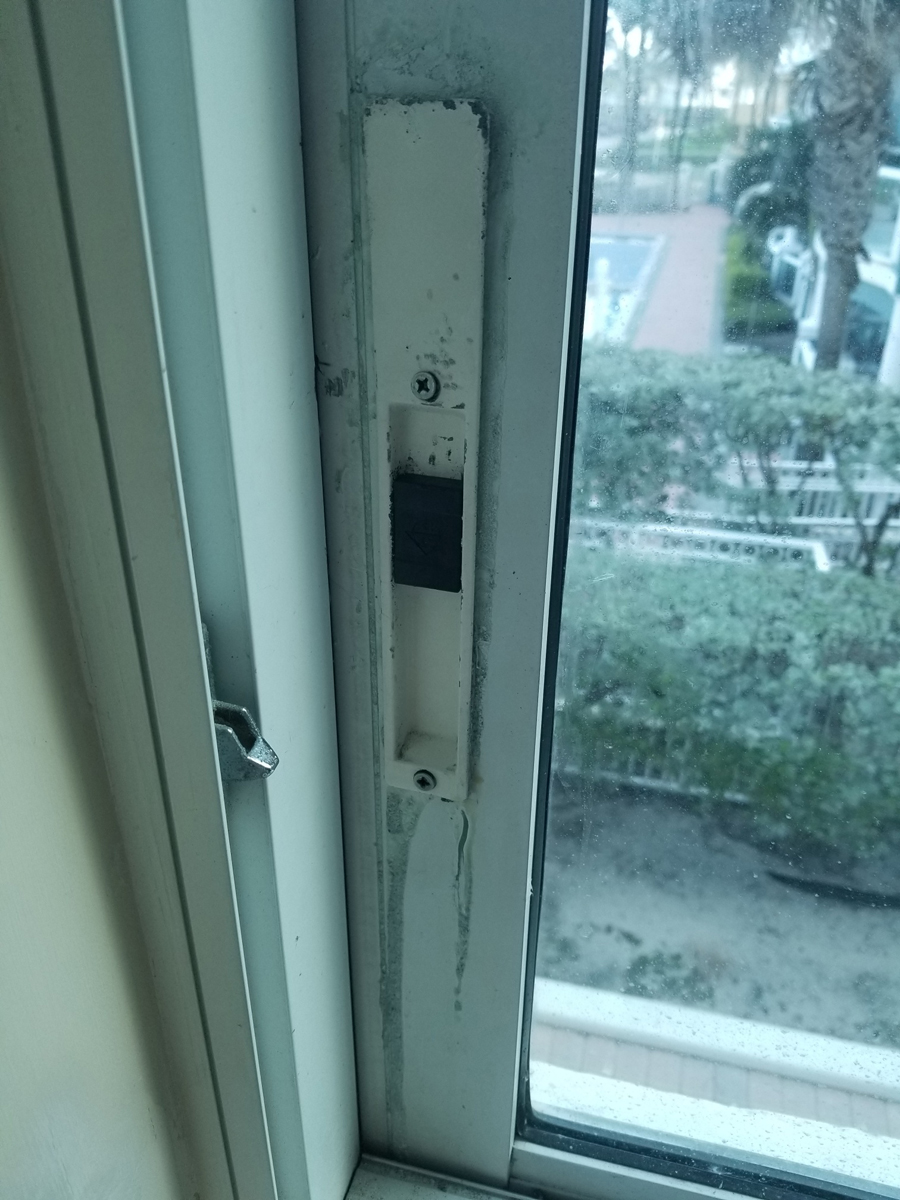

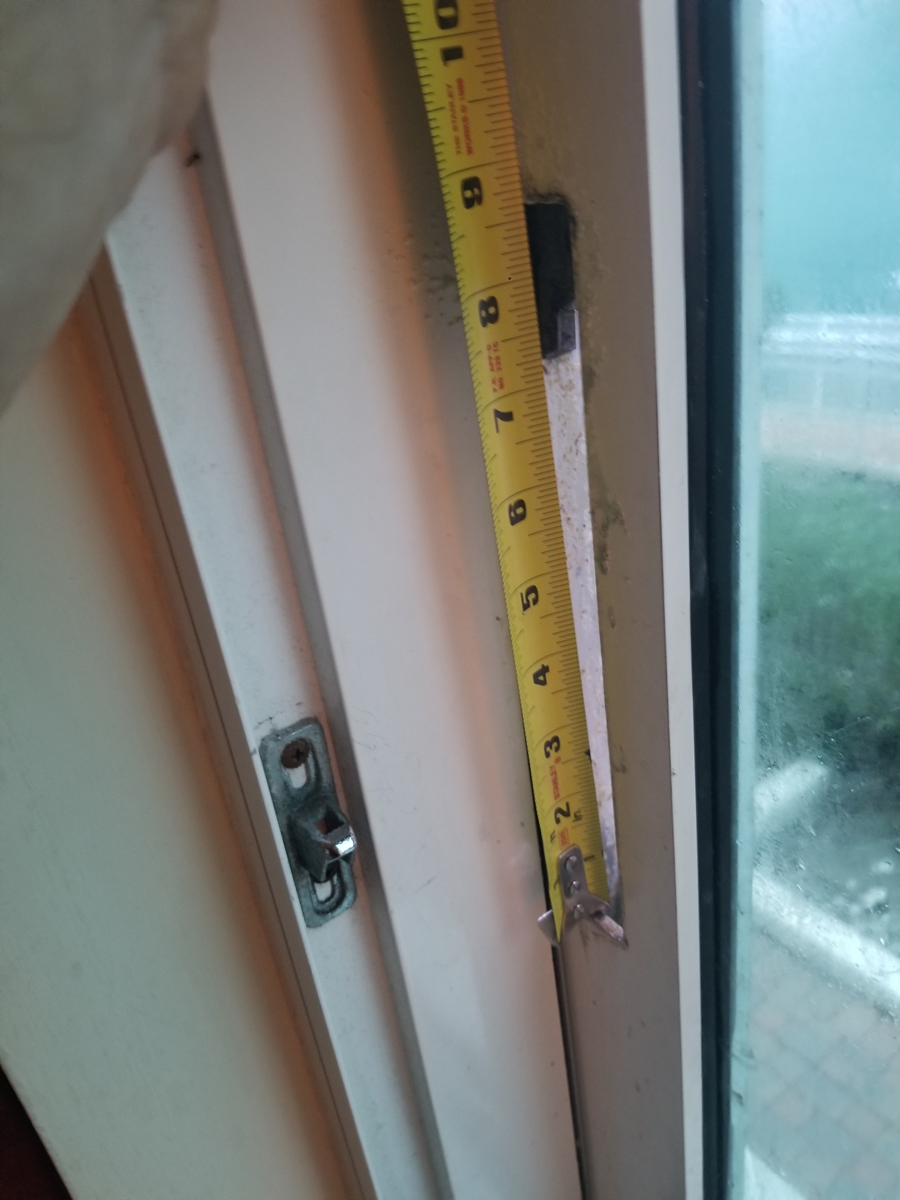

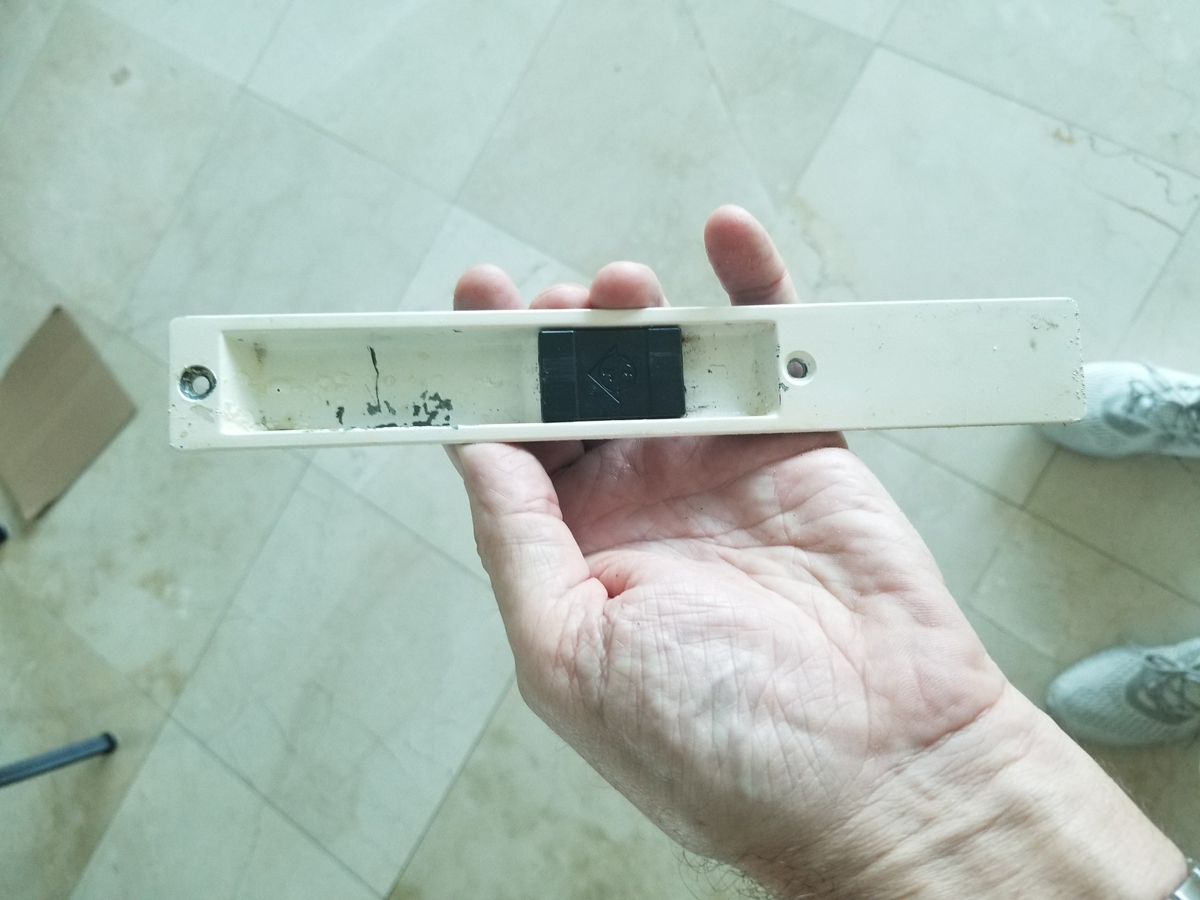

× This image is for a similar product but it will differ in size, color and/or other attributes.

Adams Rite 4189-09-02-119-00-IB Sliding Door Flush Lockset with No Exterior Cylinder

Video Review Adams Rite 4189 09 02 119 00 IB

Price: $76.27 USD

Comments (Optional)

ADD TO CART

In Stock (No Minimums):

Naples, FL Warehouse Qty: 6

In Stock (Minimums Apply):

For quantities beyond the "In Stock" above, the item(s) ships in 2-3 business days.

Additional Declarations - This manufacturer has an order minimum of $85.00 - if your total is less than this amount, the lead time approximately 2-3 weeks before it would ship. Simply exceed this minimum order amount so that we can drop ship the material to your location.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

4189-09-02-119-00-IB Sliding Door Flush Lockset

Function: 4189 = No exterior cylinder
Lock Face Ends: 09 = Radius
Stile Thickness: 02 = 1-7/16" to 1-5/8"
Finish: 119 = To match 335 Black Anodized
Keying Options: 00 = Without Cylinder
IB: Individually Boxed
Backset: Variable (from face of lock to escutcheon and cylinder centerline)
- Minimum: .625"
- Maximum: 1.28"
Inside Operation

Vertical slide button projects or retracts deadlock bolt

Anti-Lift Lock Mechanism

Basic MS1848-09 is supplied
Bolt is self-protecting, adjustable for reach

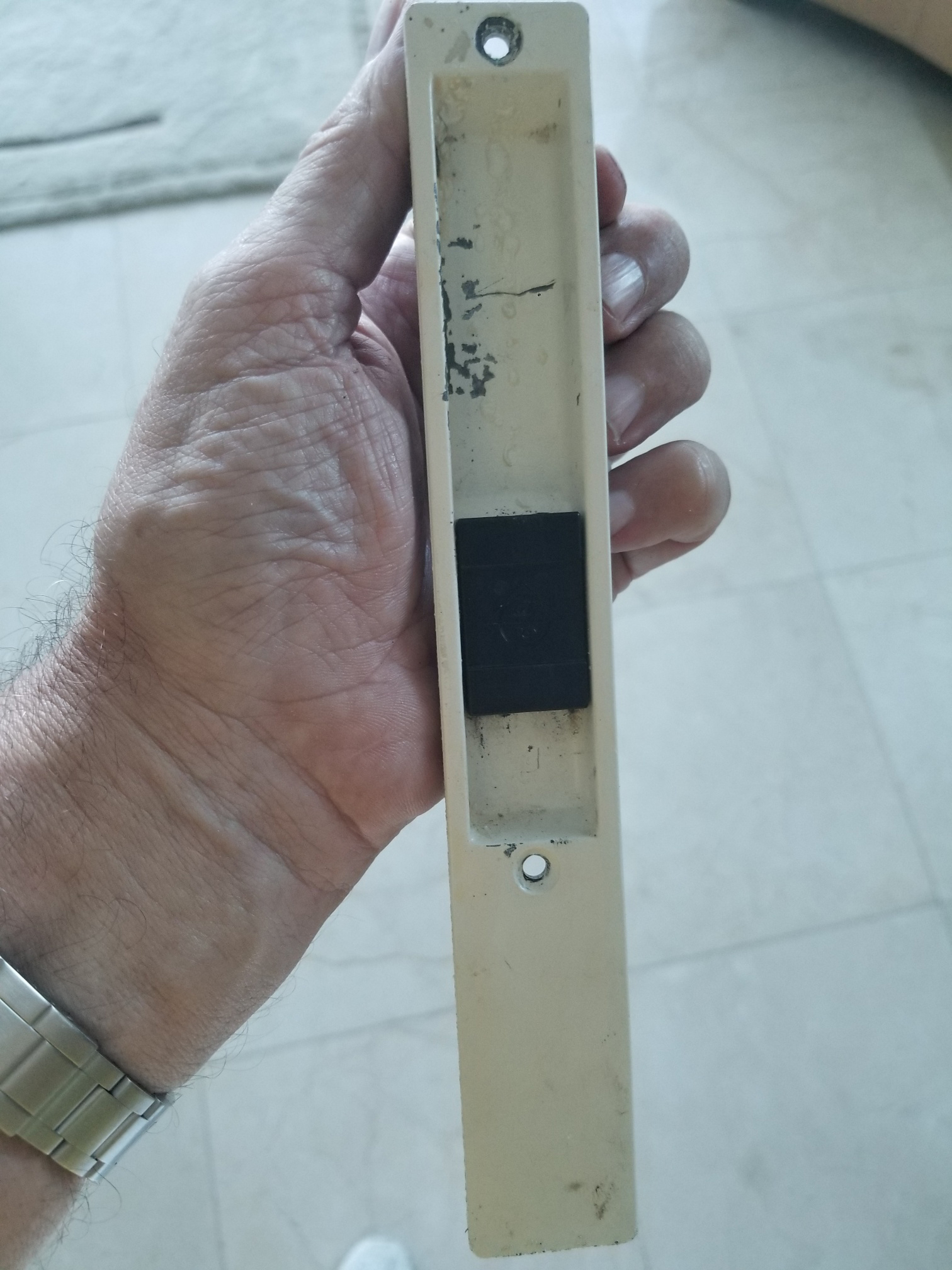

Escutcheons
- Zinc Alloy, Satin Silver epoxy
Function:
- Allows doors to slide freely past other sliding units or stationary panels
- No projecting handles to tear draperies to prevent the door from being "stacked" in a wall pocket
ANSI/BHMA Type E8292 Grade 2
