Acudor CD-5080 12 x 12
Acudor CD-5080 12 x 12
Acudor CD-5080 12 x 12 Insulated Duct Door for Sheet Metal Duct with 10.75 x 10.75 Opening - Galvanized Steel Mill
×
This image is for a similar product but it will differ in size, color and/or other attributes.
×
This product review video is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
28.26 USD
Comments
(Optional)
In Stock Ready for Shipment
ADD TO CART
For quantities beyond the "In Stock" above, the item(s)
ships within 14 business days.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
This item has minimum order levels that need to be met.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-844-809-3667
Sales
[email protected]
Technical Support
[email protected]
Product Description:
Acudor CD-5080 12 x 12 Insulated Duct Door for Sheet Metal Duct with 10.75 x 10.75 Opening - Galvanized Steel Mill

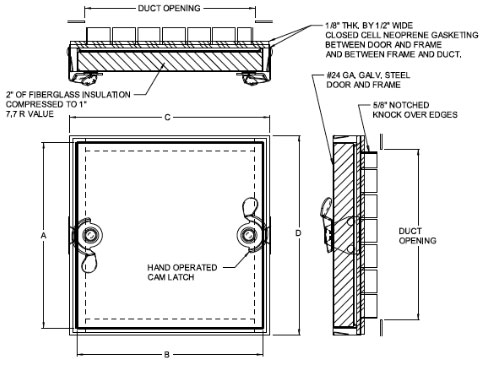

CD-5080 Duct Access Door Specifications:
Nominal Door Size:
12" x 12"
Material:
Galvanized steel, double panel
Finish:
Galvanized Steel Mill
Gasketing:
1/8" thick by 1/2" wide closed cell neoprene gasketing between door and frame and also between frame and duct
Weight:
3.75 lbs
Frame:
24 gauge with 5/8" notched knock over tabs
Door:
24 gauge
Duct Opening:
10.75 x 10.75
Insulation:
Door panel filled with 2" fiberglass insulation (7.7 R factor), compressed into 1"
Features:
Latch options:
Self tightening, hand operated cam latches
5/8” notched knock over tabs on the inside of the frame provide for easy installation
These doors are designed for use in LOW to medium pressure up to 3” static W.G
Applications:
Designed to provide easy access to sheet metal ducts
Assures a tight seal without obstruction in the air system
Product Brochure
Tech Sheet
