Trimco 1802-4 605 4" x 16" Pull Plate with 6" CTC Flat Pull - Polished Brass
×

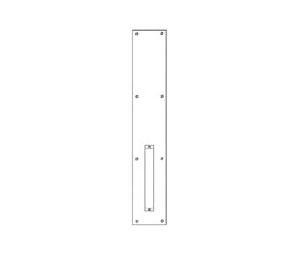

This image is for a similar product but it will differ in size, color and/or other attributes.
×
This product review video is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
383.36 USD
In Stock Ready for Shipment
Select Mounting Type
Type E - Thru-bolt & Finish Washer for Right Hand and Right Hand Reverse Applications - 1/4-20 Thread
Type E - Thru-bolt & Finish Washer for Right Hand and Right Hand Reverse Applications - 5/16-16 Thread
Type E - Thru-bolt & Finish Washer for Right Hand and Right Hand Reverse Applications - 3/8-16 Thread (Add $20.63)
Type E - Thru-bolt & Finish Washer for Left Hand and Left Hand Reverse Applications - 1/4-20 Thread (Add $20.63)
Type E - Thru-bolt & Finish Washer for Left Hand and Left Hand Reverse Applications - 5/16-16 Thread (Add $20.63)
Type E - Thru-bolt & Finish Washer for Left Hand and Left Hand Reverse Applications - 3/8-16 Thread (Add $20.63)
Type G - Threaded Shoulder Bolt & Set Screw (Add $33.00)
Type J - Shoulder Bolt & Set Screw only (Add $12.37)
Type J-B3 - Shoulder Bolt & Set Screw with 1/4-20 Thread Bushing for Wood Doors (Add $24.76)
Type J-B4 - Shoulder Bolt & Set Screw with 5/16-18 Thread Bushing for Wood Doors (Add $24.76)
Type J-B5 - Shoulder Bolt & Set Screw with 3/8-16 Thread Bushing for Wood Doors (Add $24.76)
Type J-R3 - Shoulder Bolt & Set Screw with 1/4-20 Thread Riv-Nut for Metal Doors (Add $20.62)
Type J-R4 - Shoulder Bolt & Set Screw with 5/16-18 Thread Riv-Nut for Metal Doors (Add $20.62)
Comments
(Optional)
ADD TO CART
This item is not in stock and typically ships in 14 business days.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
This item has minimum order levels that need to be met.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-773-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
Trimco 1802-4 605 4" x 16" Pull Plate with 6" CTC Flat Pull - Polished Brass
Trimco’s 1802 Series Heavy Duty Pull Plates are manufactured in the United States using 1/8" stainless steel, brass or bronze for extra strength and durability. Utilizing a 1" x 3/8" bar pull with a projection of 1-7/8" makes this ADA compliant. 1802 options include engraving for "PUSH" or "PULL", as well as different cylinder and custom cutouts for most applications. The top and bottom edges have an extra heavy bevel creating an appealing design.
Rectangle Pull Plate
Combines 1807 plate with an 1139 Series Grip
Plate features:
Style: 1807-4
Size: 4" x 16"
Thickness: .125"
Pull features:
Style: 1139-1
Grip: 1" x 3/8"
Center to Center (CTC) length: 6"
Clearance: 1-1/2"
Projection : 1-7/8"
BHMA: J407
Material: Polished Brass
Specify mounting type - see Mounting Options link
Manufactured in the United States of extra heavy duty 1/8" stainless steel, brass or bronze.
Top and bottom edges have an appealing extra heavy bevel design.
Can be engraved with "PUSH", "PULL" or any custom requirements.
Optional cylinder or special cutouts available.
Applications:
Public Buildings & Facilities
Commercial & Industrial Buildings
Government & Military Facilities
Retail & Strip Malls
Multifamily & Mixed-Use
For any custom engraving, special cutouts or other custom requirements please contact our customer service.
Non-returnable finishes are: 499, 609, 610, 611, 612, 613, 616, 619, 620 and 622.
