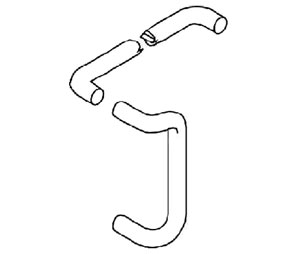

Trimco 1737 605 Push/Offset Pull Bar Set - 1" Dia. Push Bar with 10" CTC Offset Pull - Polished Brass


Trimco 1737 605

Trimco 1737 605 Push/Offset Pull Bar Set - 1" Dia. Push Bar with 10" CTC Offset Pull - Polished Brass


Manufacturer: Trimco
Price: $378.71






  Order Options:


Specify Push Bar exact Center to Center length
Comments (Optional)
Specify door thickness


  Qty:

  Add To Cart

Availability Information
Standard - ships in 14 business days.

Similar Product Video
This product review video is for a similar product but it will differ in size, color and/or other attribute. We still feel the video will be of value to you.
Email Friend
This item ships from CA.


400 Series Door Closer Availability: Ships within two weeks.

Trimco logo Trimco 1737 605 Push/Offset Pull Bar Set - 1" Dia. Push Bar with 10" CTC Offset Pull - Polished Brass


Trimco’s 1700 Series Push/Pull Bars & Sets are manufactured in the United States from solid stainless steel, bronze or brass. These heavy duty bars are available with a multitude of mounting options for most applications including steel, wood and glass doors. Available in most architectural finishes, the Trimco 1700 Series Bars are also offered with a fOCAL designer series option.

  • Push/Offset Pull Bar Set
  • Pull Bar:
    • Center to center (CTC) length: 10"
    • Diameter: 1" Diameter
    • Projection: 3-1/4"
  • Push Bar:
    • Specify Center to center (CTC) length
    • Diameter: 1" Diameter
    • Projection: 3-1/4"
  • BHMA: J504
  • ADA Compliant
  • Material: Polished Brass
  • Mounting: Mounting options:
    • Type E x G - Thru Bolt and Finish Washer for free ends (choose from 3 different thread sizes) and Back-to-Back Threaded Sholder Bolt and Set Screw for common ends
    • Type N x G - Flow Thru Button for free ends and Back-to-Back Threaded Sholder Bolt and Set Screw for common ends
    • Type J x G - Surface Concealed for free ends (choose form riv nut for hollow metal doors or double threaded bushing for wood doors) and Back-to-Back Threaded Sholder Bolt and Set Screw for common ends
    • Type M x L - Spanner Turning Washer and Stud for free ends (choose from riv nut for hollow metal doors or double threaded bushing for wood doors) and Back-to-Back Concealed Spanner Turning Washer and Stud for common ends
    • Type N x L - Flow Thru Button for free ends and Back-to-Back Concealed Spanner Turning Washer and Stud for common ends for Glass Doors
  • NOTE: Push Bars, Push/Pull Bar Sets and custom products are not returnable.
  • Applications:
    • Commercial & Industrial Buildings
    • Government & Military Facilities
    • Retail & Strip Malls
    • Hospitality
    • Multifamily & Mixed-Use
