Pemko 297GV 72

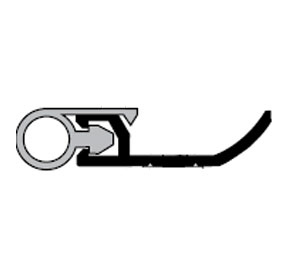

Pemko 297GV 72" Astragal/Perimeter Gasketing with Black Vinyl insert - Gold Anodized Aluminum

• Astragal/Perimeter Gasketing
• Insert: Vinyl
• Length: 72"
• Material: Gold Anodized Aluminum
• For replacement insert use: EV47 (BL, GR, W)

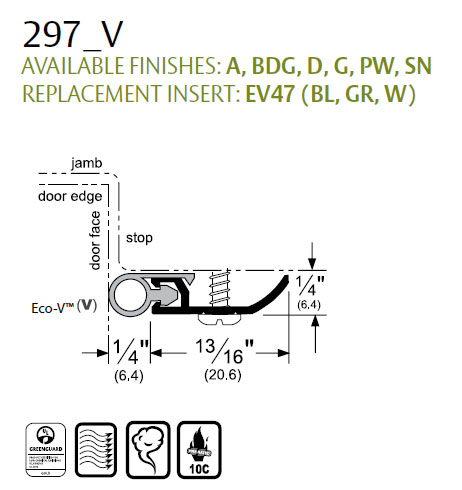

• Rigid jamb weatherstrip is shown mounted on openings with a 1/16" gaps; however, each weatherstrip can seal gaps up to the depth of its seal
• Seal depth provided on each illustration
• Punched on 6" centers with slotted holes for adjustment
• Model 297_ is available wtih self-adhesive, two-sided tap (TST) and tek screws (3 slotted holes per part) for easy installation. To obtain this option, add "TST" to the end of the part when ordering (i.e. 297AV3680TST)
• Stainless steel fasteners are provided.
• When installing pairs of fire doors care must be taken to maintain the requirements of NFPA 80
• Category J gaskets for use with listed steel frames and/or classified steel covered composite, hollow metal doors rated up to and including 3 hours; wood and plastic covered composite doors rated up to and including 1-1/2 hours; and wood core doors rated for 20 minutes
• This perimeter gasketing is supplied with a Eco-V ("V") insert - item number EV47 (available in gray, black, or white)
• Fire Rated
• Smoke Rated
• Air Seal Rated
• GreenGuard Certified
